ToolkitRC ST8 Advanced Servo Tester Driver Analyzer PWM PPM SBus

Description

Product Overview

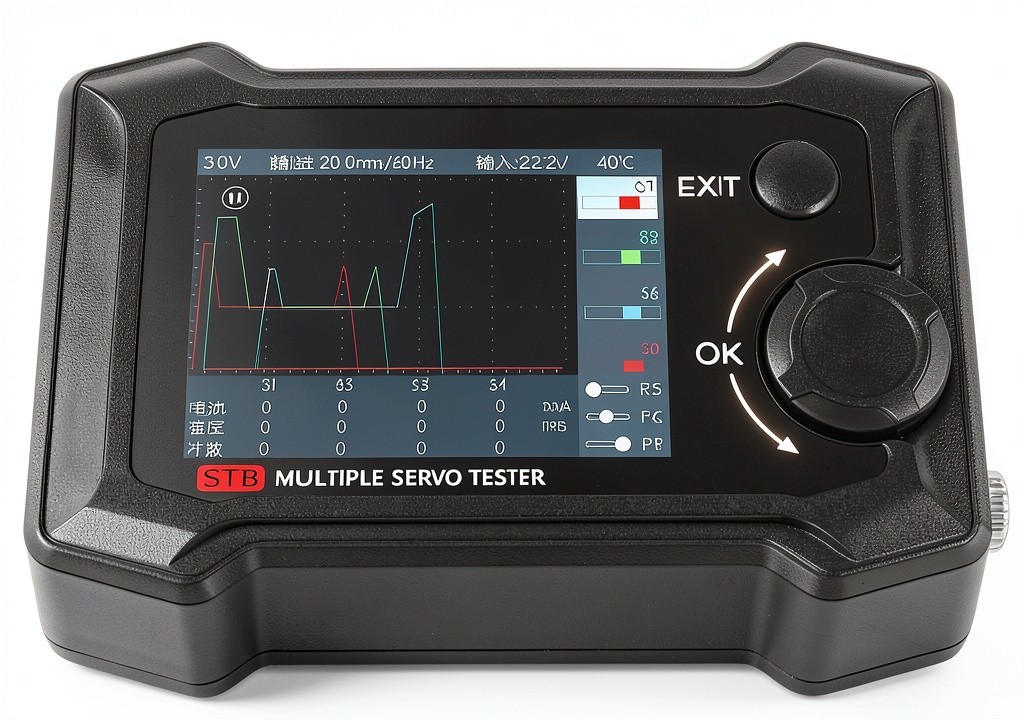

The ToolkitRC ST8 Advanced Servo Tester and Driver is engineered to provide comprehensive signal analysis for a wide range of RC components, including servos, electronic speed controllers (ESCs), and flight controllers. Featuring a high‑resolution 2.4 inch TFT RGB display with a 320×240 pixel matrix, the device presents real‑time waveform data, voltage, and current readings in an intuitive visual format. Powered by a rechargeable battery, the unit operates across a flexible 7‑28 V DC input range, delivering up to 10 A of current to accommodate demanding testing scenarios. Its compact 12 × 12 × 12 inch footprint and lightweight 8‑ounce construction make it portable enough to fit into a standard tool bag, while the robust black housing ensures durability in workshop or field environments. The ST8 supports multiple signal protocols—PWM, PPM, and S.Bus—allowing users to diagnose and calibrate a variety of RC communication standards without the need for additional adapters. Integrated measurement capabilities function as both a voltmeter and ammeter, providing precise readings that help technicians identify voltage drops, current spikes, and signal inconsistencies. The device also includes dedicated input ports for signal lines S1‑S4, each capable of handling 5‑8.4 V at up to 4 A, and an external output port that can supply 5‑8.4 V at up to 4 A for powering auxiliary equipment. With a user‑friendly interface, customizable display settings, and a battery‑life that extends through multiple testing sessions, the ToolkitRC ST8 stands out as a versatile, all‑in‑one solution for both hobbyist enthusiasts and professional engineers.

Usage

Designed for versatility, the ST8 excels in a variety of real‑world applications. In a hobbyist workshop, users can quickly connect a servo to the signal port and observe PWM pulse widths, enabling fine‑tuning of trim settings for model aircraft or drones. For professional RC technicians, the device serves as a diagnostic hub for complex multi‑channel setups, allowing simultaneous monitoring of up to four signal lines while the TFT display visualizes each channel’s waveform. The battery‑powered design eliminates reliance on external power sources, making the ST8 ideal for on‑site field testing at racing events, outdoor drone flight trials, or remote robotics demonstrations. Its wide voltage acceptance range supports testing of both low‑voltage hobby gear and higher‑voltage industrial RC components, ensuring compatibility across a broad spectrum of equipment. Additionally, the built‑in voltmeter and ammeter functions enable users to verify power supply integrity, check battery health, and assess current draw during operation, which is essential for preventing overheating and ensuring safe performance. Whether you are calibrating ESCs for optimal thrust response, troubleshooting intermittent signal loss in a multi‑rotor platform, or validating the integrity of a custom robotic arm’s control circuitry, the ST8 provides the data and flexibility required to make informed adjustments and achieve reliable results.

Why Choose Us

ToolkitRC has built a reputation for delivering high‑quality testing equipment that combines precision engineering with user‑centric design, and the ST8 exemplifies this commitment. Each unit undergoes rigorous quality control procedures, including calibrated sensor verification and stress testing under extreme temperature conditions, to guarantee consistent performance across the product’s lifespan. The device’s firmware is regularly updated to incorporate the latest protocol standards and improve measurement accuracy, ensuring that customers benefit from ongoing enhancements without needing to purchase new hardware. Moreover, ToolkitRC provides comprehensive technical support, offering detailed user manuals, video tutorials, and responsive customer service channels that assist users in mastering the device’s capabilities. The ST8’s modular architecture also allows for future expansion, with optional accessories such as external probe kits and data logging modules that can be added to extend functionality. By choosing the ST8, customers invest in a reliable, future‑proof tool that reduces downtime, improves diagnostic confidence, and ultimately saves time and money in both hobbyist projects and professional service environments.

Key Features

• Compact, battery‑powered design for portable on‑site testing
• High‑resolution 2.4″ TFT display shows real‑time waveforms and measurements
• Supports PWM, PPM and S.Bus protocols for versatile RC signal analysis
• Integrated voltmeter and ammeter provide precise voltage and current data
• Dedicated customer support and firmware updates ensure long‑term reliability

FAQ

What voltage range can the ST8 operate on?

The ST8 accepts a wide input voltage range from 7 V to 28 V DC, allowing it to power a variety of RC components and accessories without the need for external adapters.

Can the device measure both voltage and current simultaneously?

Yes, the built‑in measurement functions enable concurrent voltage and current monitoring, giving users a complete picture of power performance during testing.

Is the ST8 compatible with S.Bus signals from multiple channels?

Absolutely. The ST8 includes four dedicated signal ports (S1‑S4) that can each handle S.Bus signals, making it suitable for multi‑channel analysis and troubleshooting.

How does the battery life hold up during extended testing sessions?

With its efficient power management, the ST8 can operate for several hours on a single charge, depending on usage intensity, ensuring reliable performance throughout typical testing workflows.

What kind of support does ToolkitRC provide after purchase?

Customers receive access to detailed documentation, video guides, and a responsive support team that can assist with setup, firmware updates, and any technical questions that arise.
