USB Logic Analyzer VQP 16-Channel 400MHz 16G Sample Depth USB-C

Description

Product Overview

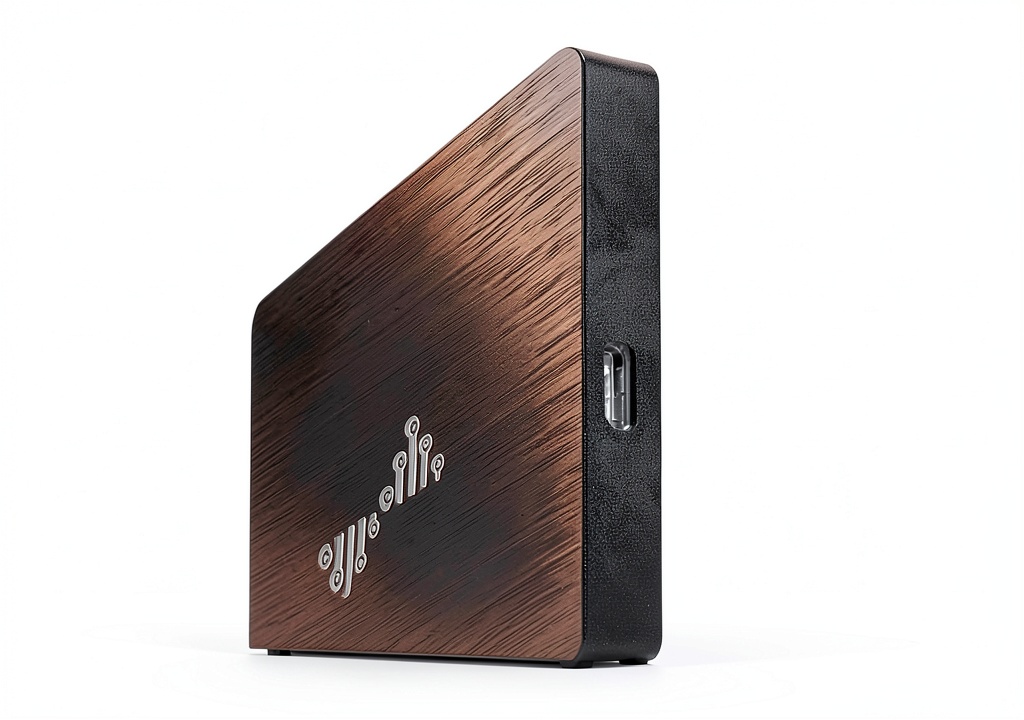

The VQP USB Logic Analyzer is a high‑performance instrument designed for developers, engineers, and educators who need accurate digital signal insight. Featuring 16 dual‑mode channels, a 400MHz sampling rate, and up to 16G sample depth in stream mode, it captures long, detailed waveforms without missing critical events. The device includes 256Mbit SDRAM for multiple buffer modes, adjustable thresholds, and shielded wire support to ensure clean, noise‑free data. Its compact USB‑C connection delivers fast data transfer to a PC running Windows, macOS, or Linux, and the open‑source software on GitHub provides nearly 100 protocol decoders for versatile analysis.

Usage

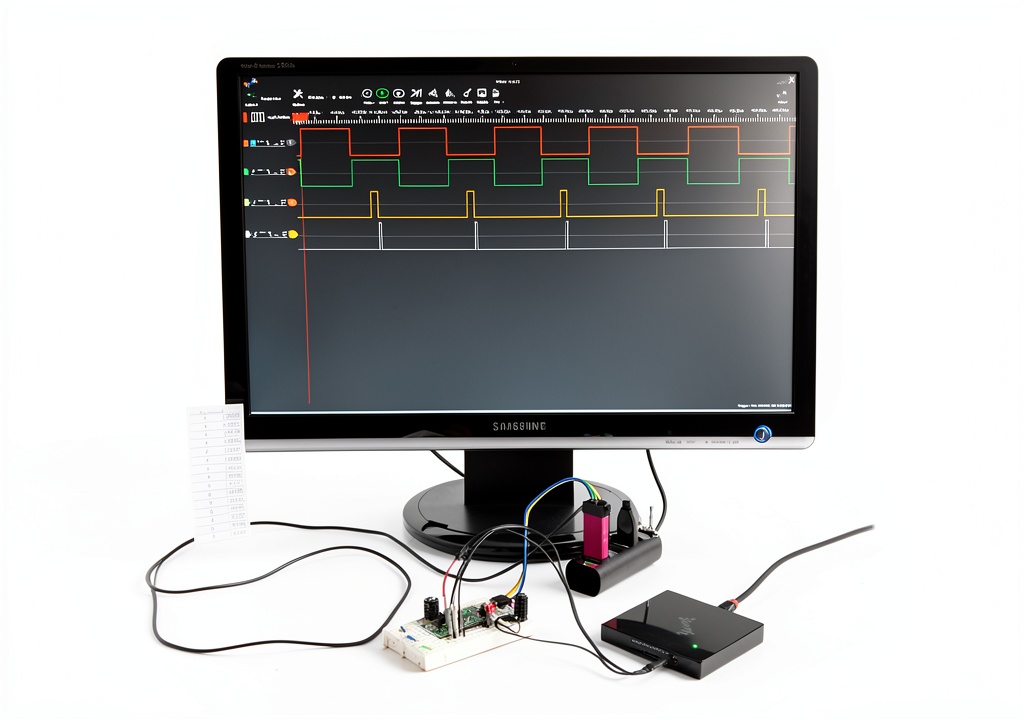

Designed for a wide range of applications, this analyzer excels in hardware debugging, firmware validation, and classroom labs. Connect it to any modern PC via USB‑C and launch the intuitive software to start capturing signals from microcontrollers, FPGA boards, or communication interfaces. Its dual‑mode operation lets you choose stream mode for continuous real‑time capture or buffer mode for high‑speed bursts, making it suitable for both long‑duration monitoring and high‑frequency event detection.

Why Choose Us

VQP combines reliable manufacturing with rigorous quality testing to ensure each unit meets professional standards. The analyzer’s robust SDRAM and USB‑C design guarantee stable performance, while the open‑source firmware allows users to customize and extend functionality. Backed by responsive technical support and a clear warranty policy, VQP provides confidence for both commercial projects and academic research.

Key Features

• Capture up to 16 channels simultaneously for comprehensive circuit insight
• 400MHz sampling rate ensures fast signal transitions are accurately recorded
• 16G sample depth in stream mode enables long‑duration monitoring without data loss
• USB‑C interface provides rapid data transfer and broad OS compatibility
• Dedicated customer support and firmware updates keep the analyzer future‑proof

FAQ

What operating systems are supported?

The analyzer works with Windows XP through Windows 10, macOS, and major Linux distributions.

Can I use the device with a MacBook that only has USB‑C ports?

Yes, the built‑in USB‑C connector is fully compatible with MacBooks and other USB‑C enabled computers.

How many protocol decoders are available?

Nearly 100 protocol decoders are included, covering common interfaces such as I2C, SPI, UART, CAN, and more.

Is the software open source?

Yes, the analysis software is open source on GitHub, allowing users to modify and extend its capabilities.

What is the warranty period?

VQP offers a one‑year limited warranty covering manufacturing defects and provides free technical assistance during that period.
