USB to CAN Module Converter WALFRONT V2.0 LED Type-C Power for CAN FD

Description

Product Overview

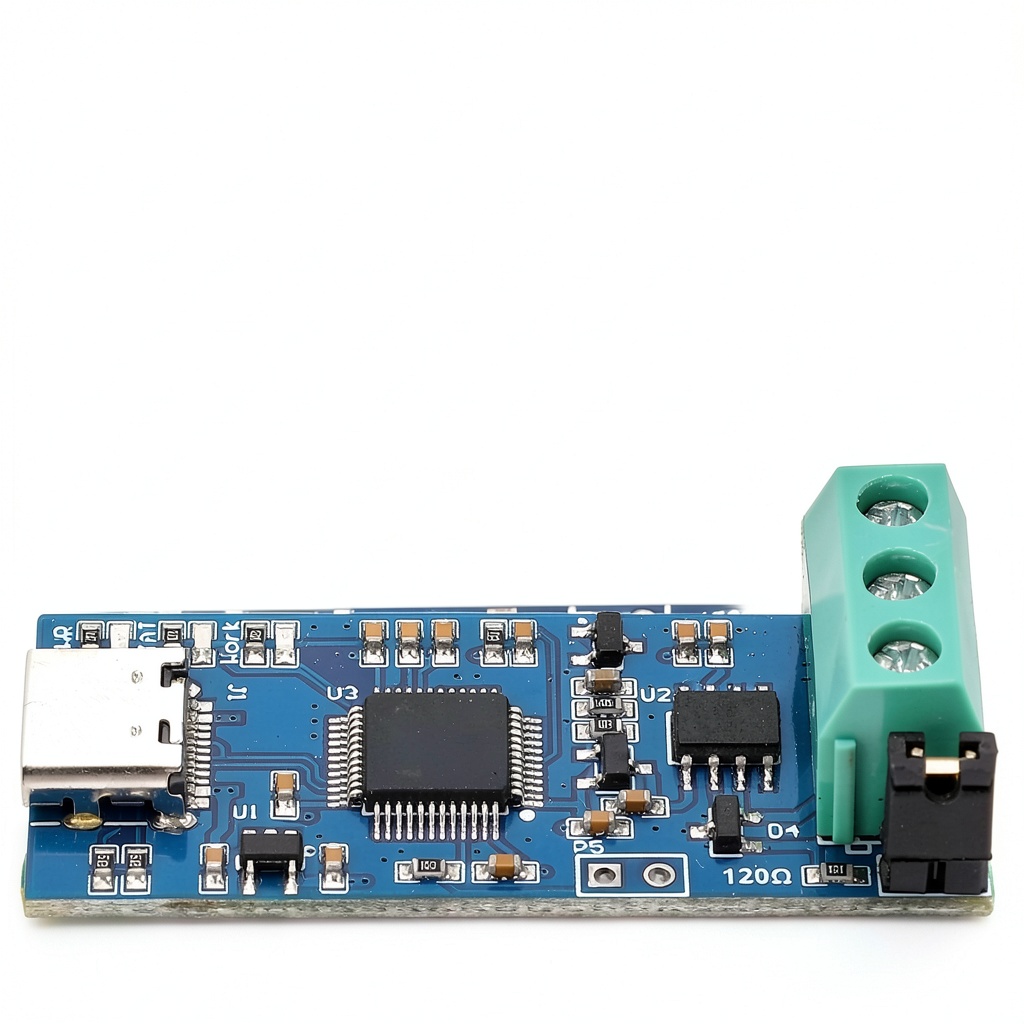

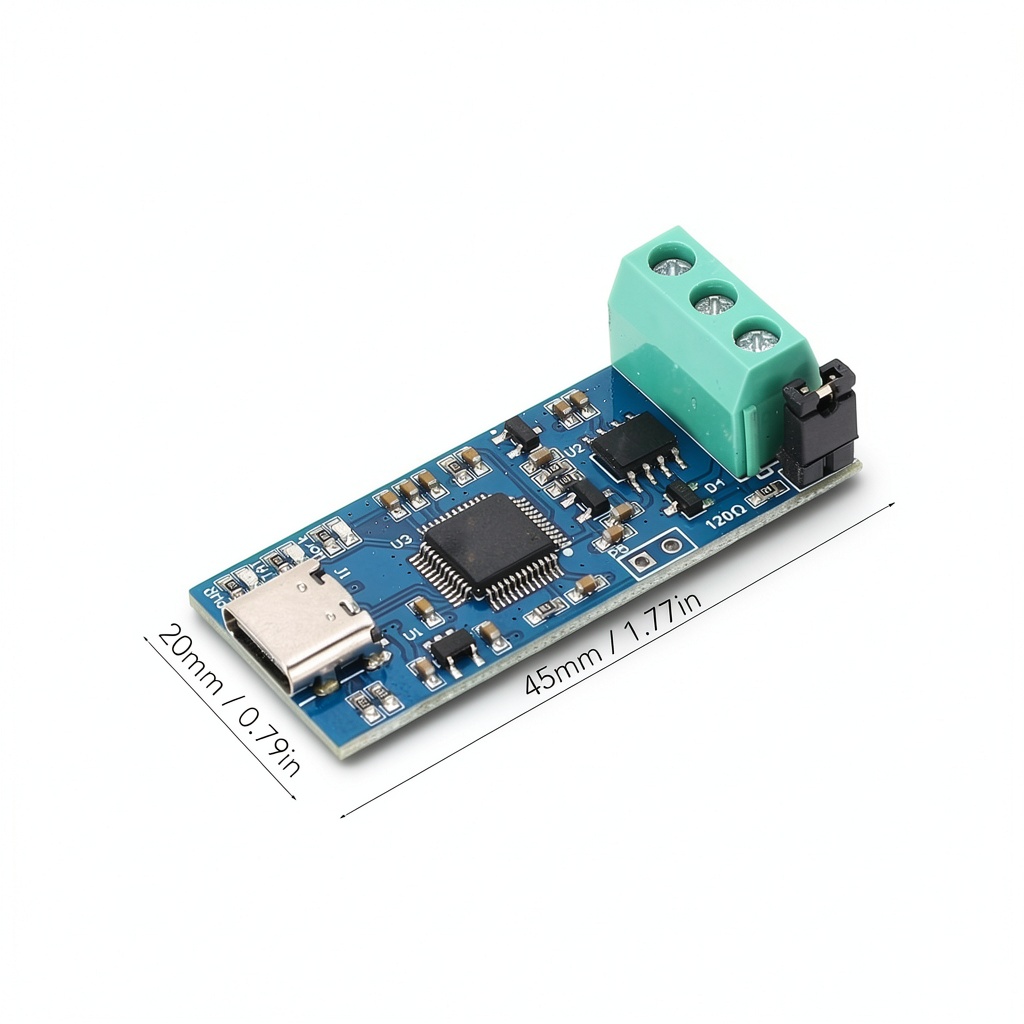

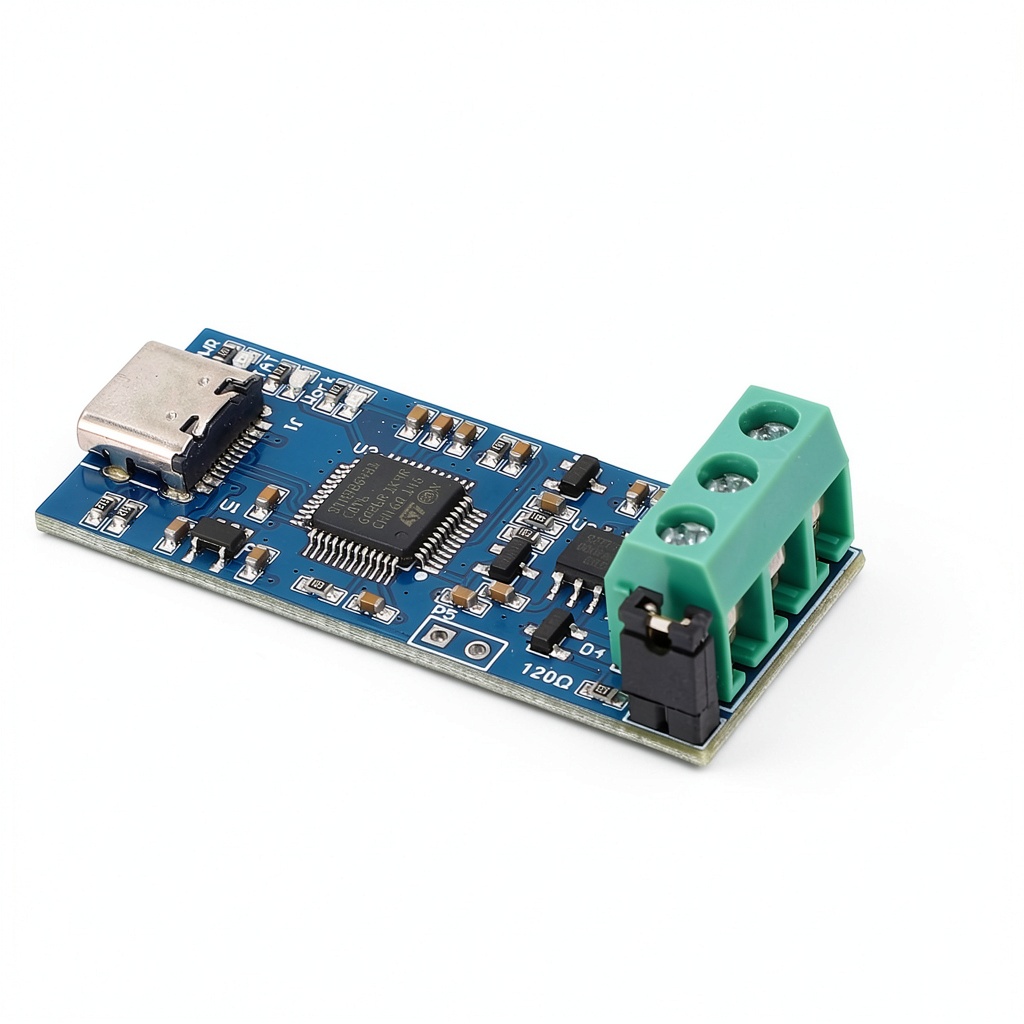

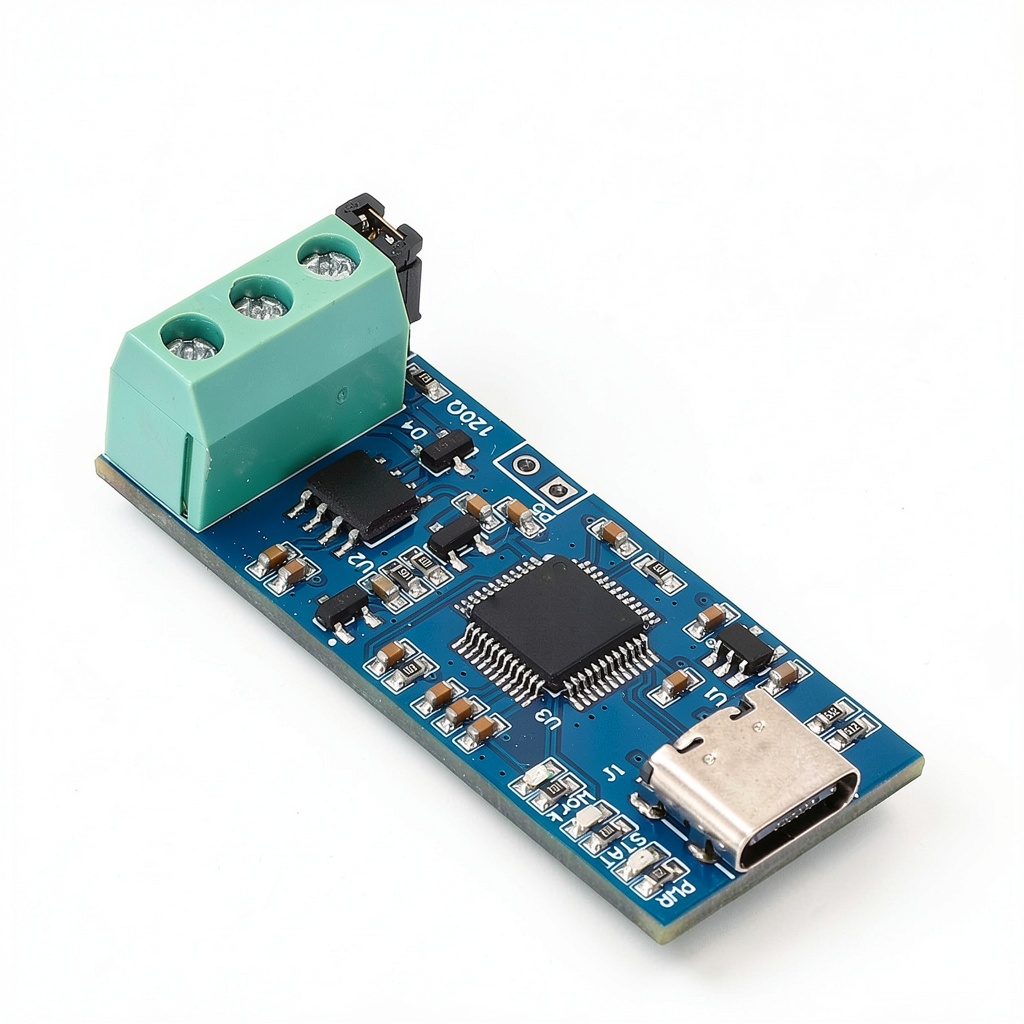

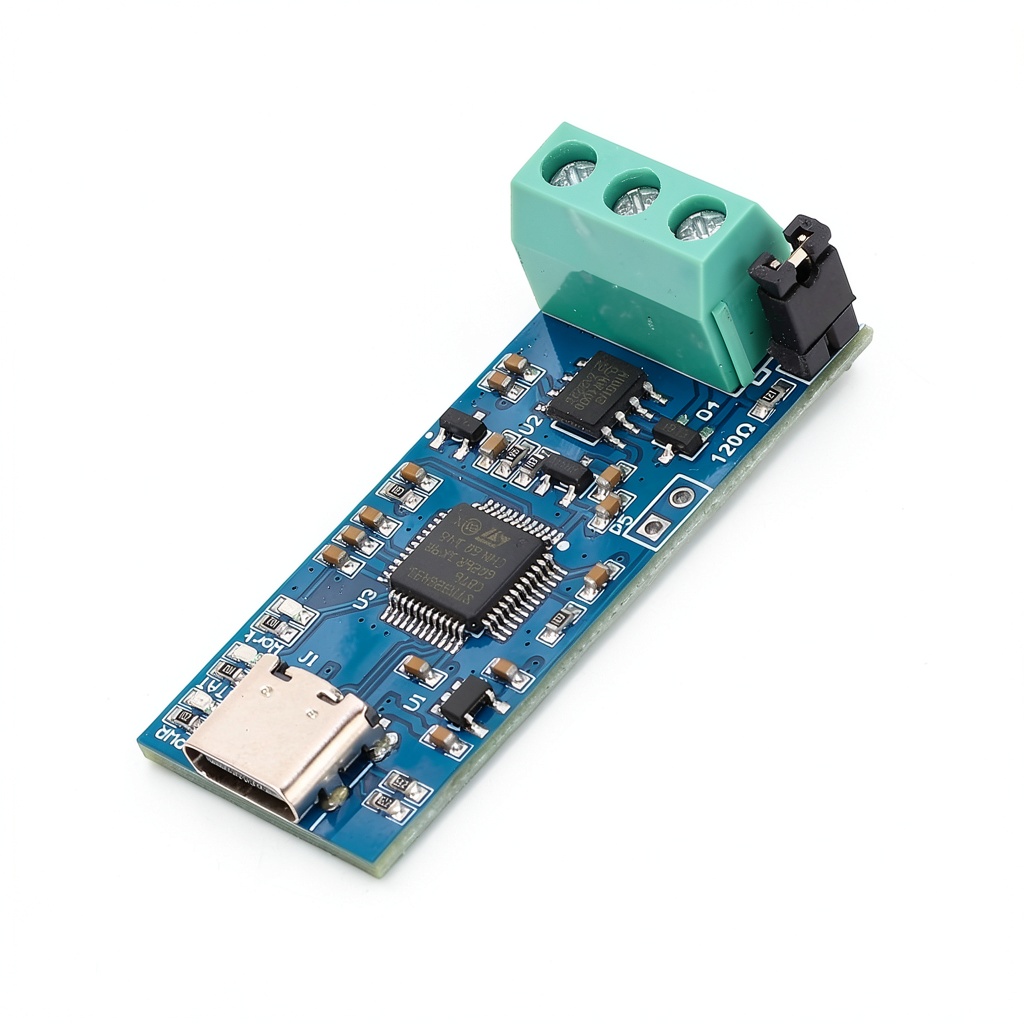

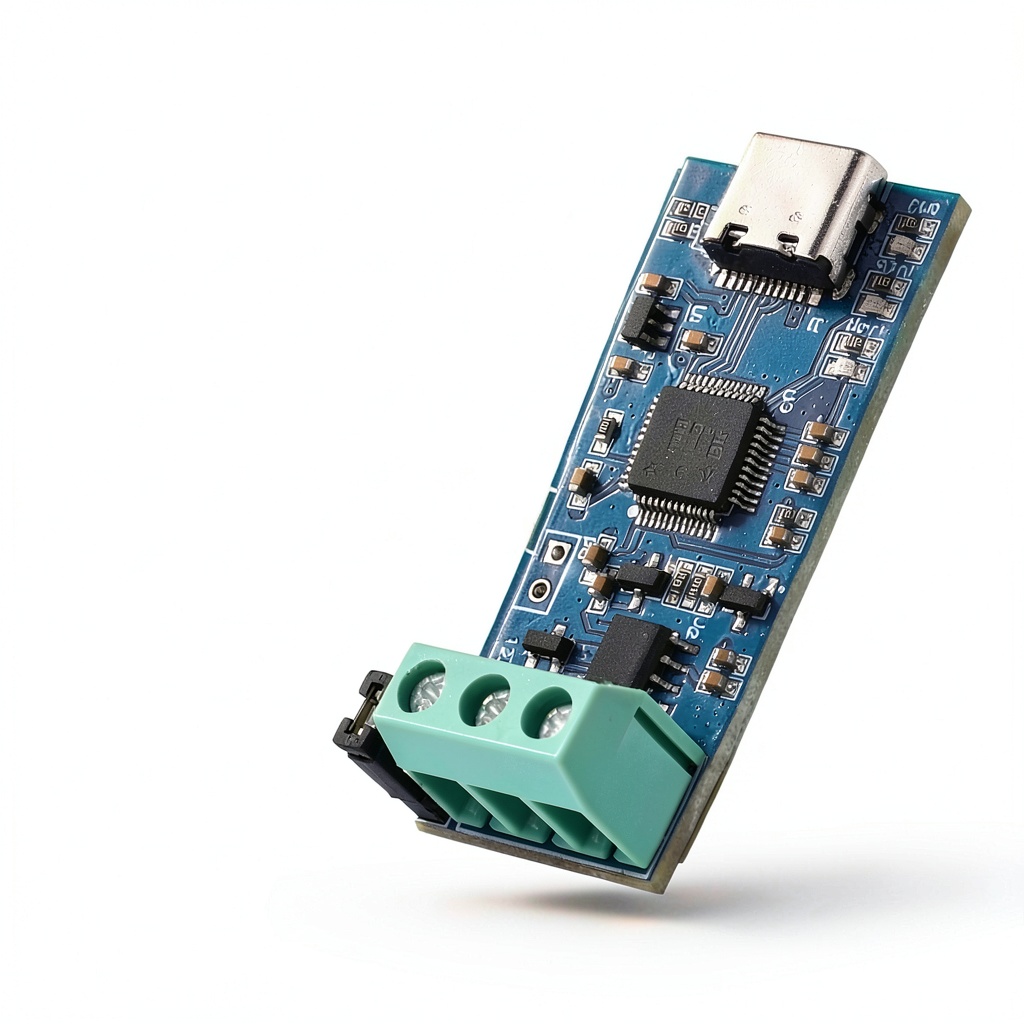

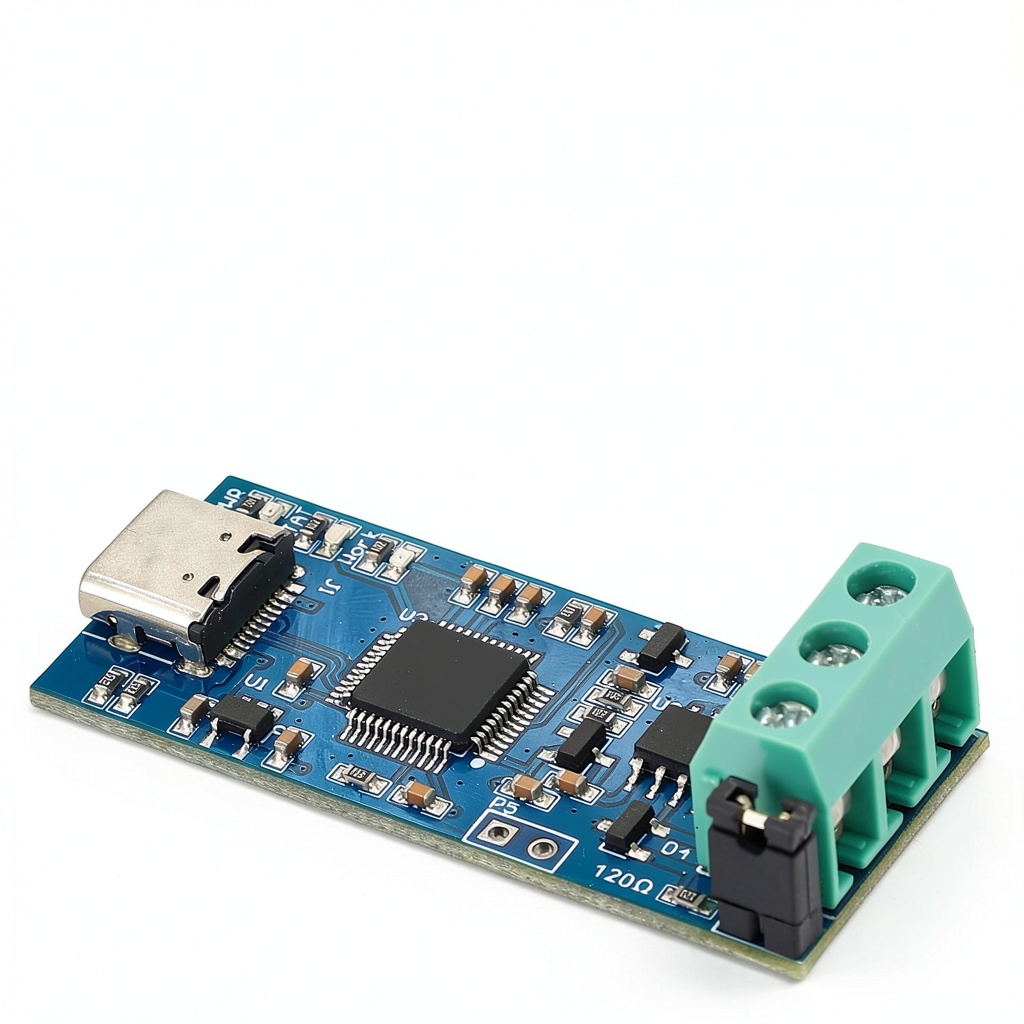

The WALFRONT USB to CAN Module V2.0 is engineered to bridge the gap between modern USB Type‑C powered devices and legacy CAN bus networks. Built around a high‑performance STM32G4 series microcontroller, the module supports CAN2.0A, CAN2.0B, and the newer CAN‑FD protocols, delivering data throughput up to 170 Mbps. A three‑color LED indicator provides instant visual feedback on bus activity, error states, and power status, allowing users to diagnose issues at a glance. The compact, lightweight housing—measuring just 5.08 × 4.13 × 0.83 inches and weighing 0.53 oz—makes it ideal for portable test rigs, bench‑top setups, and field deployments. The device draws power directly from a standard 5 V Type‑C source, eliminating the need for external adapters and simplifying cable management. With a plug‑and‑play USB interface, the module is recognized by Windows, Linux, and macOS without additional drivers, enabling rapid integration into existing development environments.

Usage

Designed for automotive engineers, industrial automation specialists, and hobbyist developers, the USB to CAN Module excels in a variety of real‑world scenarios. In automotive diagnostics, it can capture and replay CAN traffic from vehicle ECUs, facilitating firmware debugging and performance tuning. In industrial control systems, the module monitors sensor networks and actuator commands, providing a reliable window into the communication layer of PLCs and SCADA systems. Its low latency and high‑speed capabilities also make it suitable for research labs exploring advanced CAN‑FD features such as flexible data rate and extended payloads. Because the device is powered via USB‑C, it can be deployed on laptops, tablets, or single‑board computers like the Raspberry Pi, enabling on‑the‑go analysis without bulky power supplies. The intuitive LED status display reduces the learning curve for newcomers, while the open‑source firmware and accompanying software tools give seasoned professionals the flexibility to customize functionality to match specific project requirements.

Why Choose Us

WALFRONT brings over a decade of experience in high‑reliability electronic instrumentation, and the USB to CAN Module reflects that heritage through rigorous quality control and component selection. Each unit undergoes functional testing at the factory to verify compliance with CAN‑FD timing specifications and USB 2.0 electrical standards. The module’s firmware is regularly updated to incorporate the latest protocol enhancements and bug fixes, and users can download updates directly from the WALFRONT website. In addition to the robust hardware, WALFRONT offers comprehensive technical support, including detailed documentation, example code, and a responsive engineering help desk that assists with integration challenges. The product’s competitive pricing—priced at $14.50—makes advanced CAN analysis accessible to startups and educational institutions alike, while the inclusion of a Type‑C power interface future‑proofs the device for emerging hardware platforms. By choosing WALFRONT, customers benefit from a blend of performance, affordability, and ongoing support that few competitors can match.

Key Features

• High‑speed CAN‑FD support up to 170 Mbps for rapid data capture and analysis.
• Three‑color LED status indicator provides immediate visual feedback on bus health.
• USB‑C 5 V power input eliminates external adapters and simplifies setup.
• Compact, lightweight design fits easily into any test environment or portable kit.
• Dedicated technical support and regular firmware updates ensure long‑term reliability.

FAQ

What operating systems are compatible with the module?

The USB to CAN Module is recognized as a standard USB device on Windows 10/11, macOS 10.13 and later, and major Linux distributions. No additional drivers are required for basic operation, though WALFRONT provides optional driver packages for advanced features.

Can the module be used with a Raspberry Pi?

Yes. The module’s USB‑C connector works with the Raspberry Pi’s USB ports, and the open‑source software library includes Python bindings that allow direct CAN communication from the Pi.

How does the LED indicator work?

The three‑color LED displays green for normal bus activity, amber for warning conditions such as error frames, and red for critical faults or loss of power. This visual cue helps users quickly assess the health of the CAN network.

Is the firmware upgradable?

Absolutely. Firmware updates can be downloaded from the WALFRONT website and applied via the USB interface, ensuring the module stays current with the latest CAN standards and performance improvements.

What is the warranty period?

WALFRONT offers a one‑year limited warranty covering defects in materials and workmanship, backed by a responsive support team to assist with any issues that arise.
