Logic Analyzer Board Adapter 8 Channel 24MHz USB Kit LONELY BINARY

Description

Product Overview

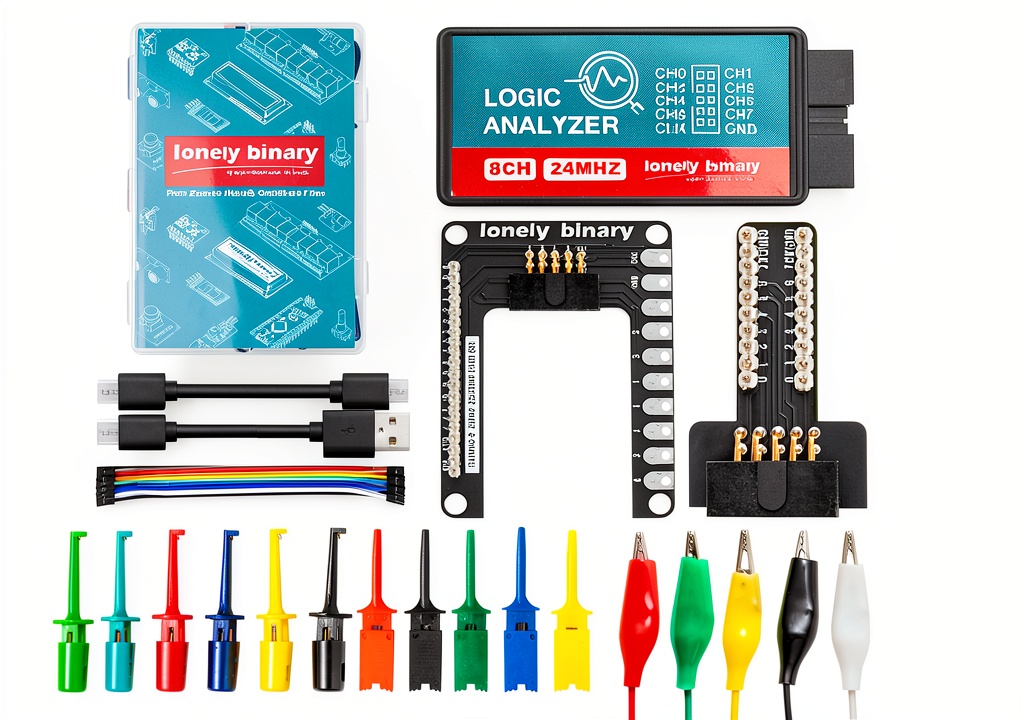

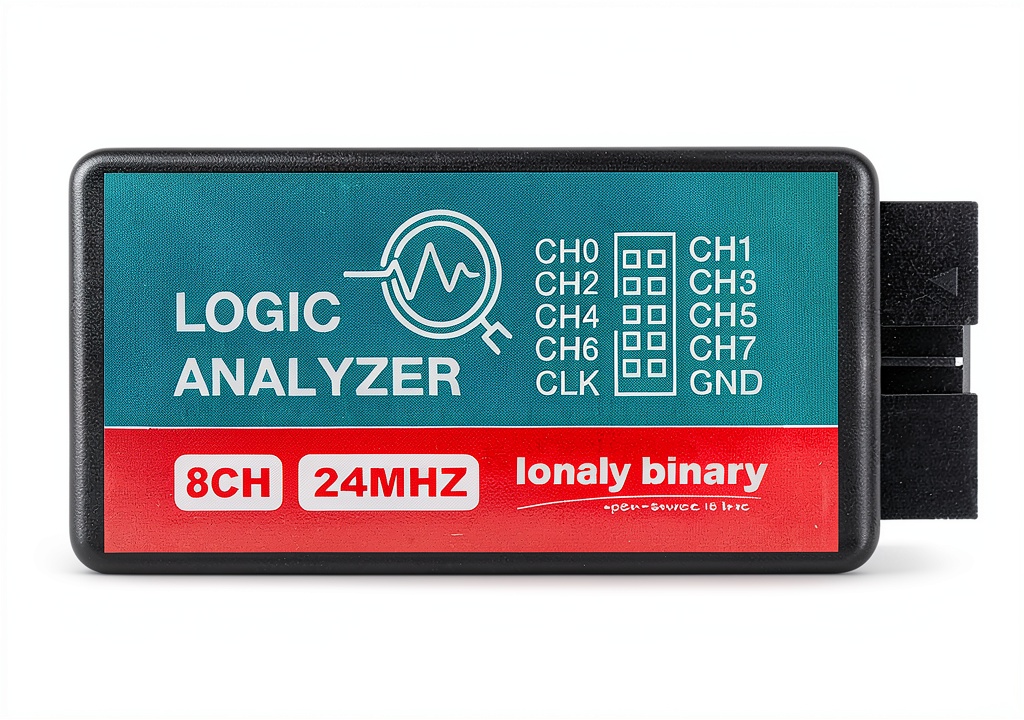

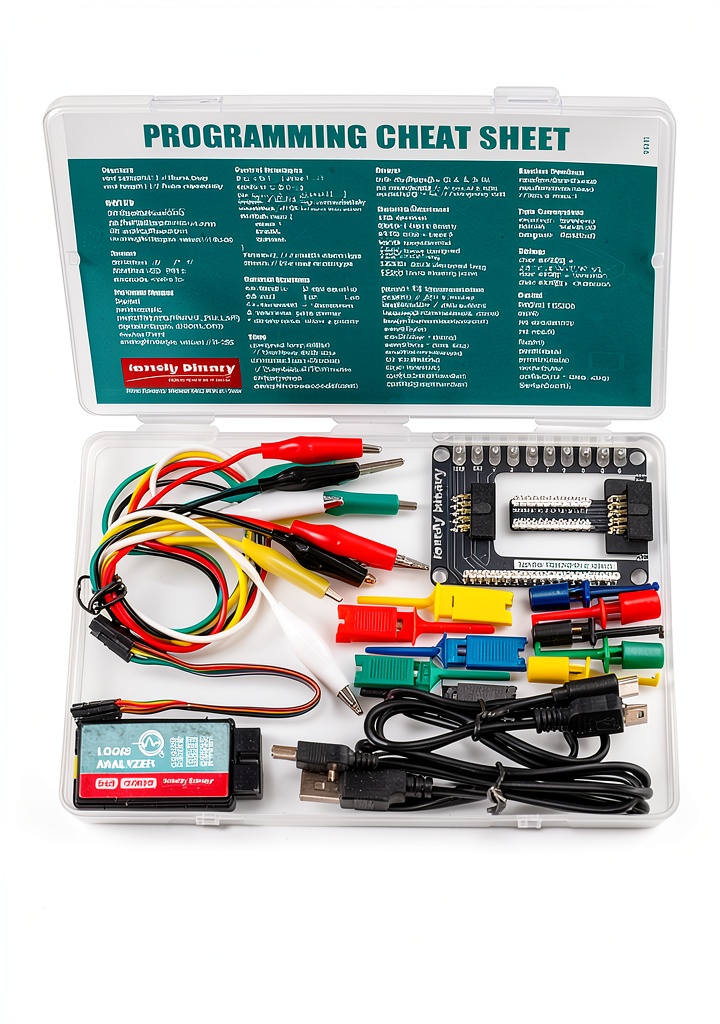

The LONELY BINARY Logic Analyzer 8‑Channel 24MHz USB Kit is engineered for makers, students, and professionals who need reliable, high‑speed digital signal capture without the complexity of traditional oscilloscopes. Powered by a 24 MHz core processor, the analyzer can monitor up to eight independent channels simultaneously, delivering precise timing information for protocols such as I²C, SPI, UART, and custom bus architectures. The kit includes a sturdy base module that houses the core logic circuitry, a breadboard‑compatible breakout board that maps each channel to 2.54 mm male pins, and a portable storage case that keeps all accessories organized for on‑the‑go projects.

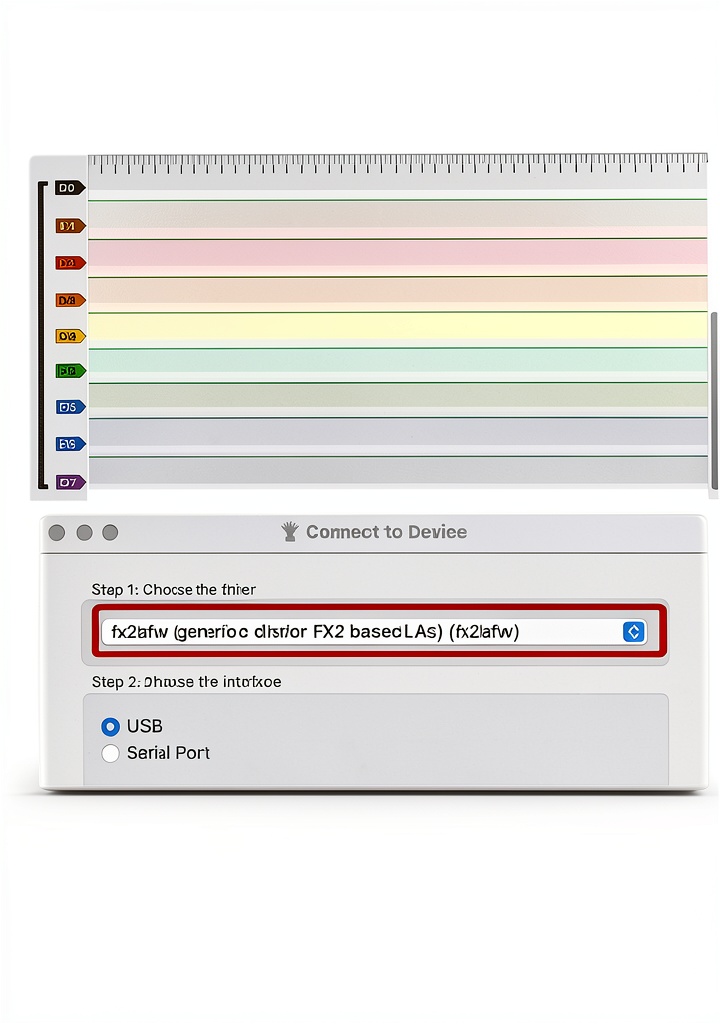

Designed for cross‑platform compatibility, the analyzer works seamlessly with Windows, macOS, Linux, and Ubuntu operating systems. The bundled software provides an intuitive graphical interface, allowing users to set trigger conditions, capture buffers, and export data in common formats for further analysis. Whether you are developing a new IoT device, troubleshooting a microcontroller firmware issue, or teaching digital communication concepts in a classroom, this kit offers the flexibility and performance required for modern embedded development.

Usage

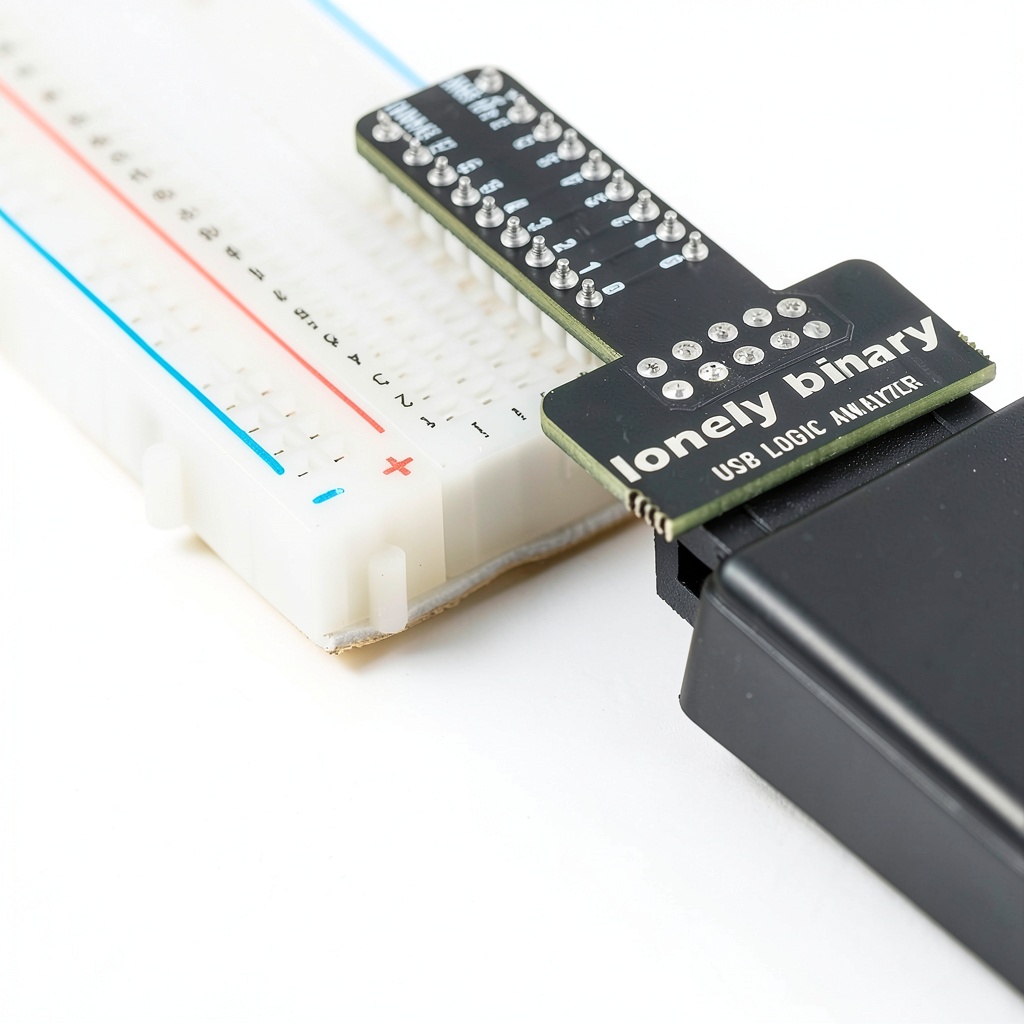

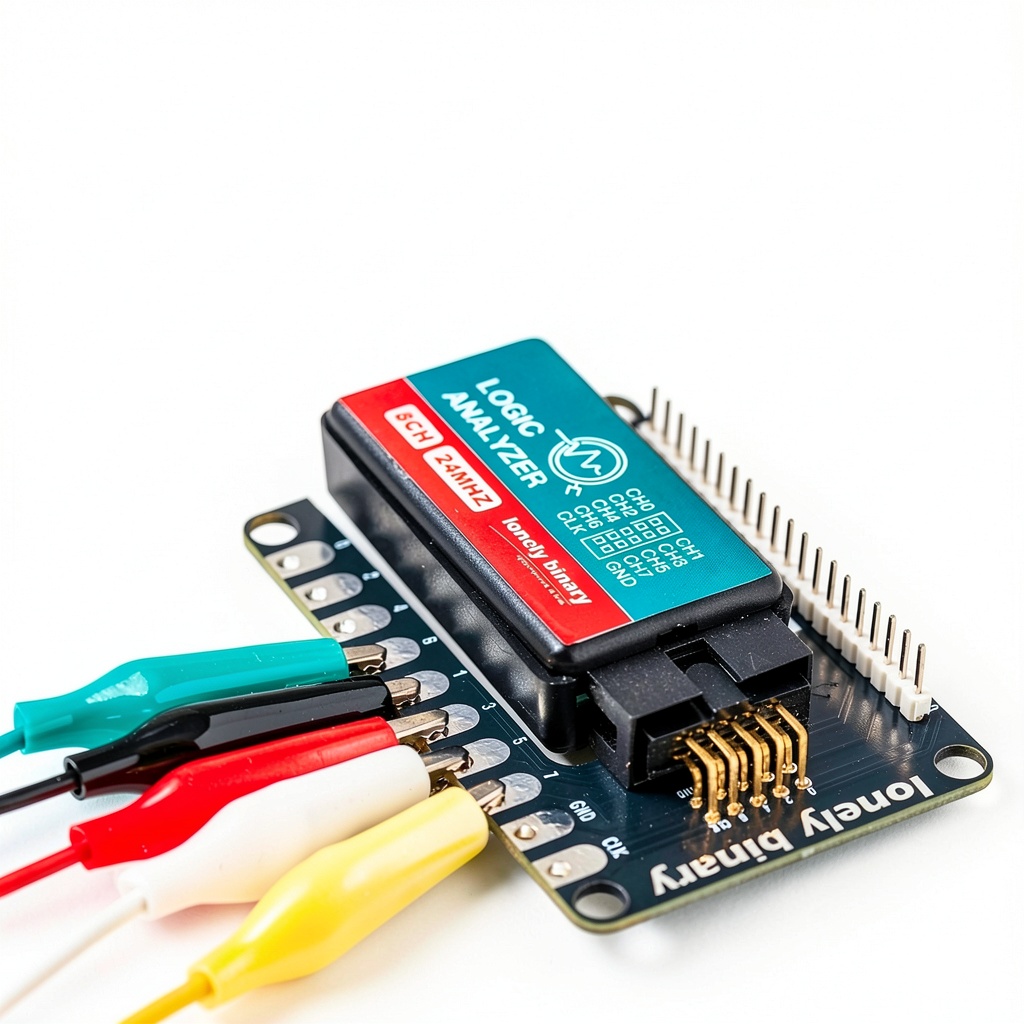

In a typical laboratory or hobbyist environment, the analyzer connects directly to a breadboard or prototype board via the breakout board’s 2.54 mm pins. The included USB‑A and Type‑C cables ensure a plug‑and‑play experience on both legacy laptops and the latest ultrabooks. Users can attach test clips or alligator clips to signal lines, then launch the companion software to configure capture depth, sampling rate, and trigger logic. The compact form factor makes it easy to integrate the analyzer into a portable test rig, allowing field diagnostics of embedded systems, sensor networks, or robotic controllers.

Educational settings benefit from the visual nature of the software, which displays waveforms, timing diagrams, and protocol decoding side‑by‑side. Instructors can demonstrate real‑time data flow, while students gain hands‑on experience interpreting digital signals. The kit’s versatility also extends to professional environments where rapid prototyping and iterative debugging are essential. By reducing setup time and eliminating the need for multiple adapters, the analyzer streamlines the workflow from concept to validation.

Why Choose Us

Choosing the LONELY BINARY Logic Analyzer means selecting a product built on a foundation of quality components and rigorous testing. The core processor is sourced from a reputable manufacturer, ensuring stable operation at the advertised 24 MHz sampling rate. The breakout board’s layout follows industry‑standard spacing, guaranteeing reliable connections to standard breadboards and development kits such as Arduino and ESP32. Each unit undergoes a multi‑stage quality assurance process, including functional verification, electrical safety checks, and firmware validation.

Beyond hardware excellence, LONELY BINARY provides comprehensive customer support. Buyers receive access to detailed documentation, video tutorials, and a responsive technical support team available via email and community forums. Firmware updates are released regularly to improve performance, add new protocol decoders, and maintain compatibility with the latest operating system releases. This commitment to after‑sales service ensures that the analyzer remains a valuable tool throughout the product lifecycle.

Key Features

• Capture up to 24 MHz on eight independent channels for fast protocol debugging
• Base module and breakout board simplify wiring to breadboards and microcontrollers

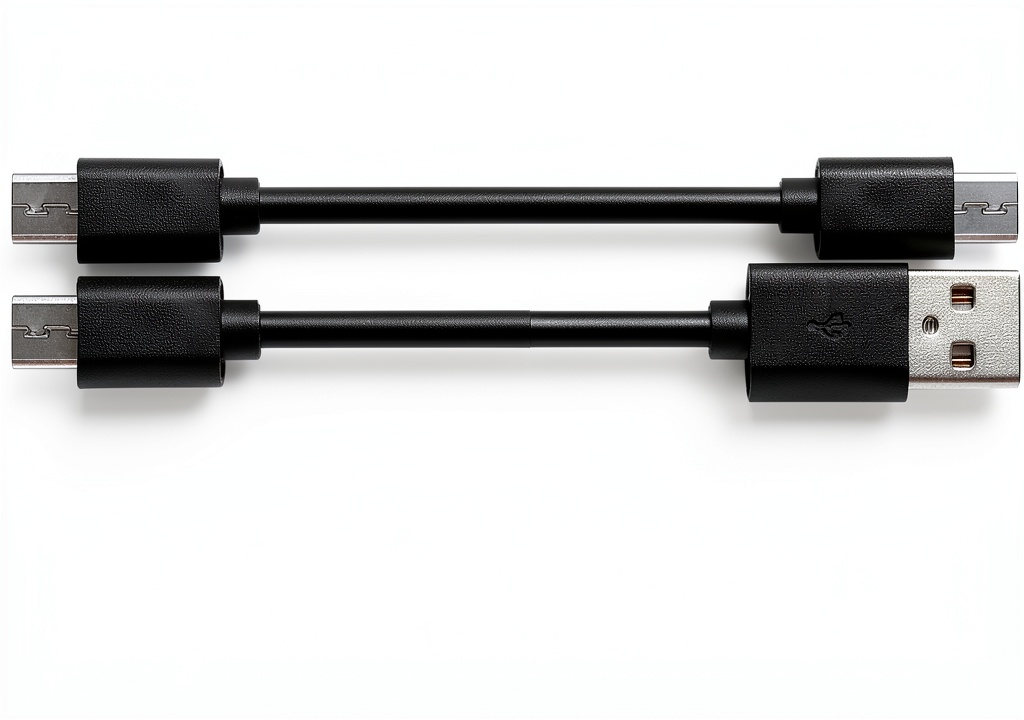

• Dual USB‑A and Type‑C cables provide universal compatibility with legacy and modern computers

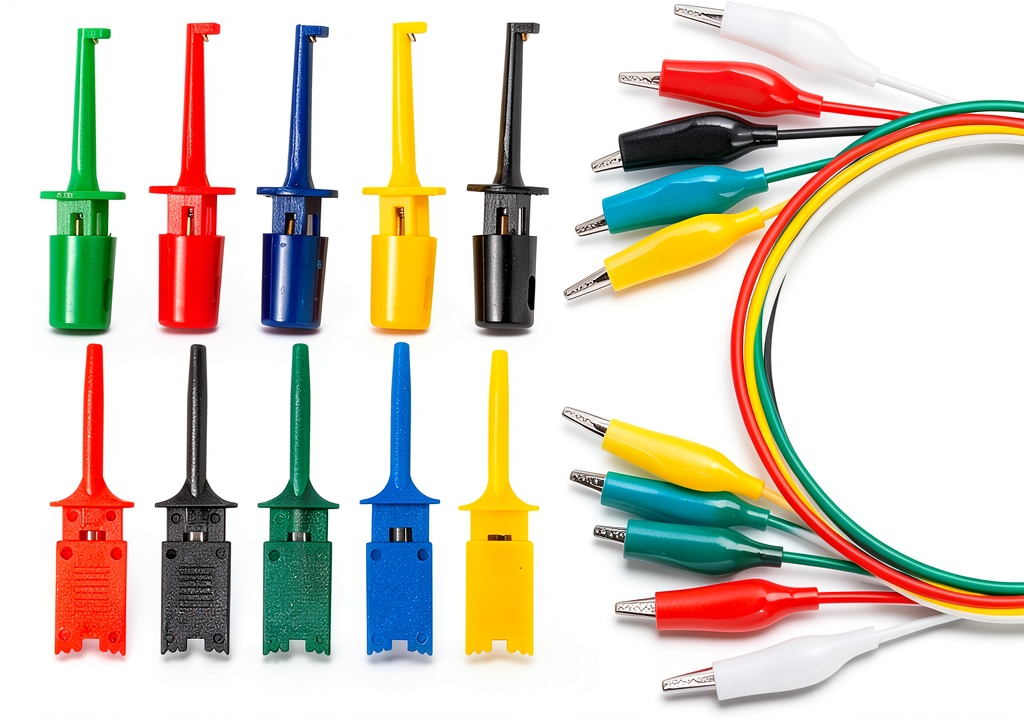

• Comes with test clips, alligator clips, jumper wires, and a storage case for immediate deployment
• Responsive technical support and regular firmware updates ensure long‑term reliability

FAQ

What operating systems are supported?

The analyzer works with Windows 10/11, macOS 10.15 and later, and major Linux distributions including Ubuntu, Fedora, and Debian.

Can I use the analyzer with Arduino and ESP32 boards?

Yes, the breakout board’s 2.54 mm pins match the standard header spacing on Arduino, ESP32, and most other development boards, allowing direct connection without additional adapters.

How many samples can the analyzer store per capture?

The device provides a configurable buffer that can store up to 1 M samples per channel, which is sufficient for most protocol analysis and timing verification tasks.

Is the software included free?

All necessary software and drivers are provided at no extra cost. The package includes a user‑friendly GUI and command‑line tools for advanced scripting.

What is the warranty period?

The product comes with a one‑year limited warranty covering manufacturing defects and includes free technical assistance during that period.
