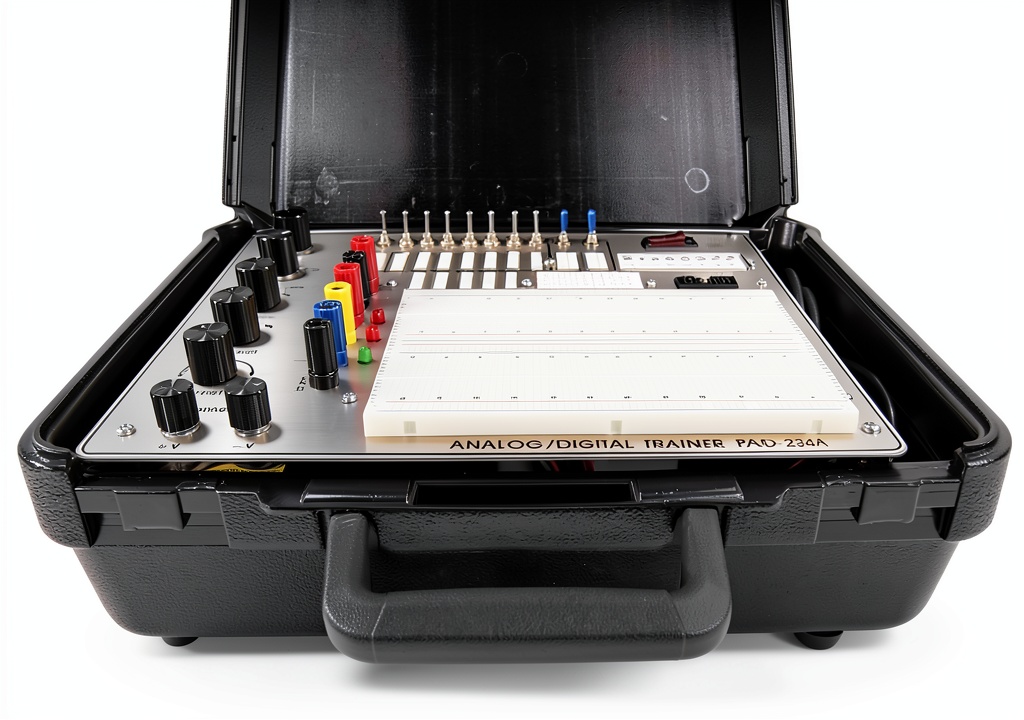

Electronix Express Assembled Digital/Analog Trainer

Description

Product Overview

The Electronix Express Assembled Digital/Analog Trainer is a purpose‑built logic analyzer designed for engineers, educators, and hobbyists who need a reliable platform for testing, measuring, and debugging electronic circuits. Constructed from a rugged ABS enclosure, the unit measures 13.5 x 10.2 x 5.8 inches and weighs 7.24 pounds, making it portable enough for field work yet sturdy enough for bench use. Inside, the trainer houses a 5 V fixed power supply and dual ±12 V and ±15 V variable supplies, each capable of delivering up to 1 A of continuous DC current. All outputs are short‑circuit protected by RSR Electronics’ proprietary protection circuitry, ensuring safe operation even when accidental shorts occur.

Beyond power delivery, the trainer includes a high‑speed digital capture engine that can sample up to 100 MS/s, providing clear visibility into timing relationships across multiple channels. The built‑in trigger logic allows users to isolate events of interest, while the USB interface enables seamless data transfer to a PC for deeper analysis using popular software suites. The device is fully assembled and calibrated at the factory, so users receive a ready‑to‑use instrument straight out of the box.

Usage

This trainer excels in a variety of environments. In academic laboratories, instructors can demonstrate fundamental concepts such as voltage regulation, signal integrity, and timing analysis with a single piece of equipment. In professional R&D settings, engineers can quickly prototype power‑sensitive circuits, verify logic timing, and perform fault isolation without needing multiple bench supplies. Hobbyists building Arduino or Raspberry Pi projects will appreciate the ability to power sensors, motors, and communication modules while simultaneously monitoring digital signals.

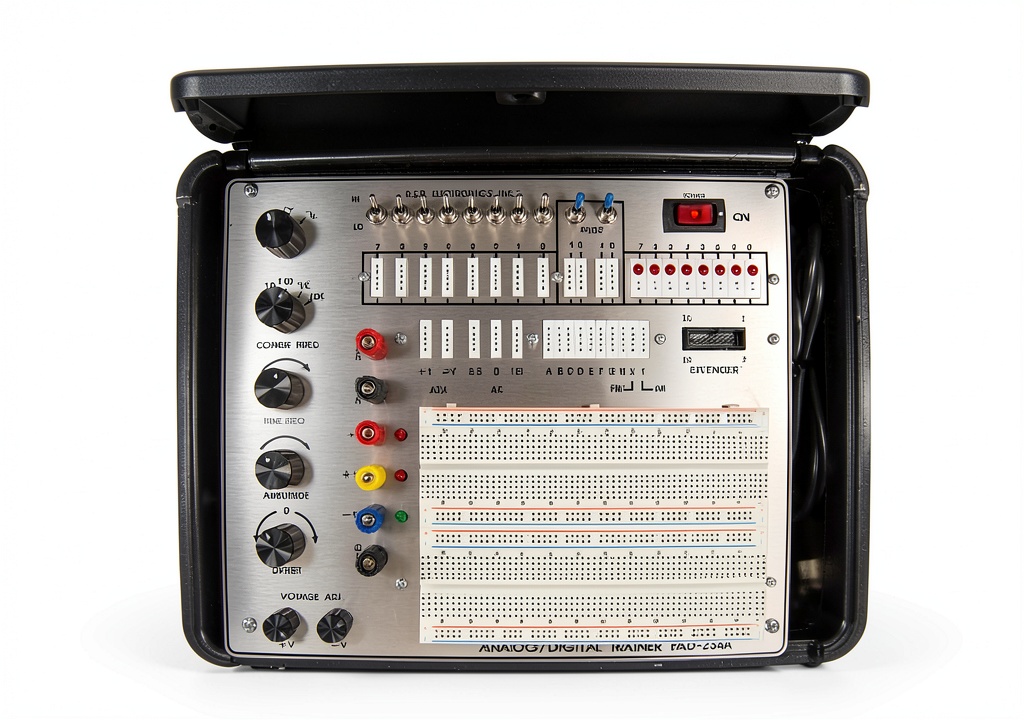

The unit’s compact footprint makes it ideal for portable test kits, allowing field technicians to diagnose circuit failures on-site. Its intuitive front‑panel layout—featuring clearly labeled knobs, LED indicators, and a high‑resolution LCD—means users can adjust voltage levels, set current limits, and start captures with minimal training. The trainer also supports external trigger inputs, enabling synchronization with other test equipment such as oscilloscopes or function generators.

Why Choose Us

RSR Electronics has a reputation for delivering high‑quality testing equipment that balances performance, durability, and cost‑effectiveness. The Electronix Express Trainer benefits from a decade of design refinement, incorporating feedback from over 20,000 users worldwide. Each unit undergoes a rigorous quality‑assurance process that includes functional testing, calibration verification, and environmental stress screening to guarantee reliable operation over a temperature range of 0 °C to 40 °C.

Our after‑sales support includes a 12‑month limited warranty, access to a dedicated technical support team, and comprehensive documentation that covers setup, operation, and troubleshooting. Customers also receive free firmware updates that add new features and improve existing functionality, ensuring the trainer remains a valuable tool as technology evolves.

Because the trainer is fully assembled, users avoid the time‑consuming and error‑prone process of building their own test rigs. The integrated design reduces cable clutter, minimizes connection errors, and provides a consistent performance baseline that is essential for repeatable measurements.

Key Features

• Provides 5 V fixed and ±12 V/±15 V variable power supplies with 1 A output for versatile circuit powering.
• Short‑circuit protection on all outputs safeguards components and prolongs equipment life.
• High‑speed logic capture up to 100 MS/s with flexible trigger options for precise timing analysis.
• Compact, rugged ABS enclosure designed for both bench and field use, weighing only 7.24 lb.
• RSR Electronics’ dedicated after‑sales support and 12‑month warranty ensure confidence and long‑term reliability.

FAQ

What voltage ranges can the trainer supply?

The unit includes a 5 V fixed supply and dual adjustable supplies that can be set to any voltage between –12 V and +12 V or –15 V and +15 V, each delivering up to 1 A of continuous current.

Is the trainer compatible with standard PC software?

Yes. The trainer connects via USB and works with popular logic‑analysis software packages, including open‑source tools and RSR’s own suite, allowing you to capture, view, and export data easily.

How does short‑circuit protection work?

Each power output incorporates a fast‑acting current‑limit circuit that detects over‑current conditions and automatically shuts down the supply to prevent damage to both the trainer and the connected device.

Can the trainer be used in a classroom setting?

Absolutely. Its intuitive interface, clear labeling, and built‑in safety features make it an excellent teaching tool for electronics courses, enabling students to experiment safely with real‑world power supplies and logic analysis.

What warranty and support are provided?

RSR Electronics offers a 12‑month limited warranty covering defects in materials and workmanship, plus access to a knowledgeable technical support team for installation, operation, and troubleshooting assistance.
