TL631 Mini Motherboard Analyzer Card by ViaGasaFamido PCIe LPC Kit

Description

Product Overview

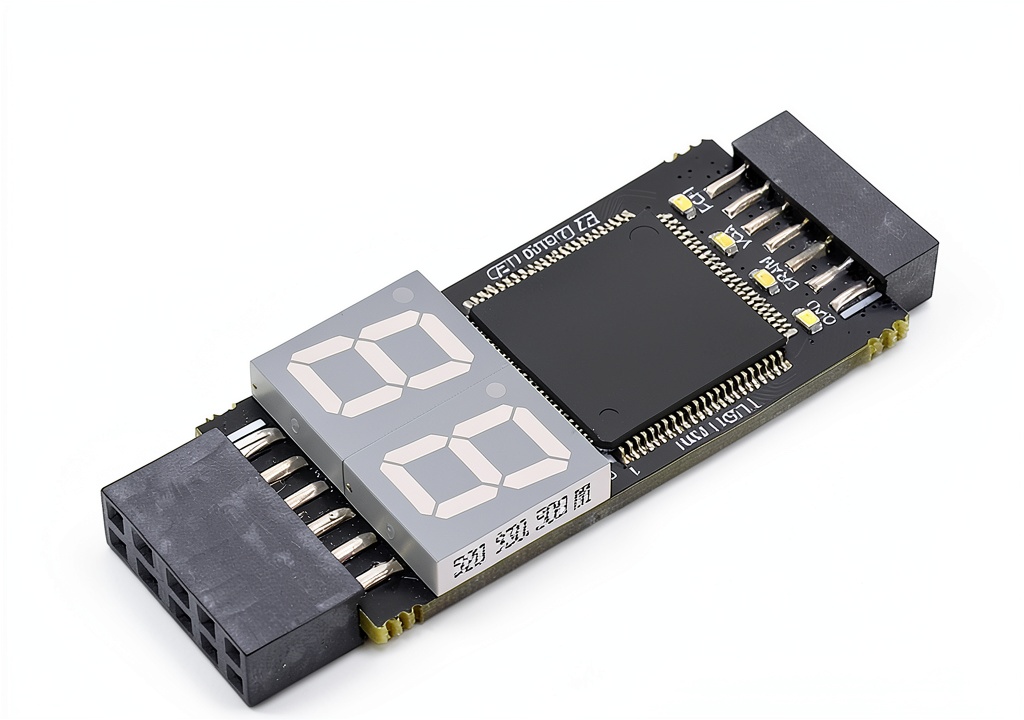

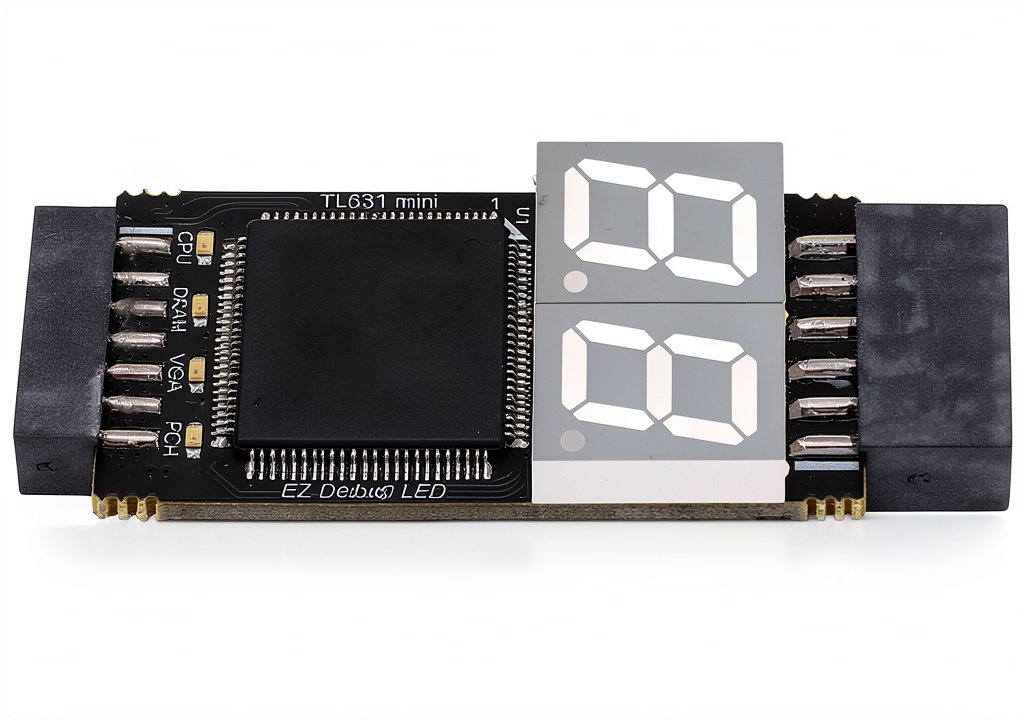

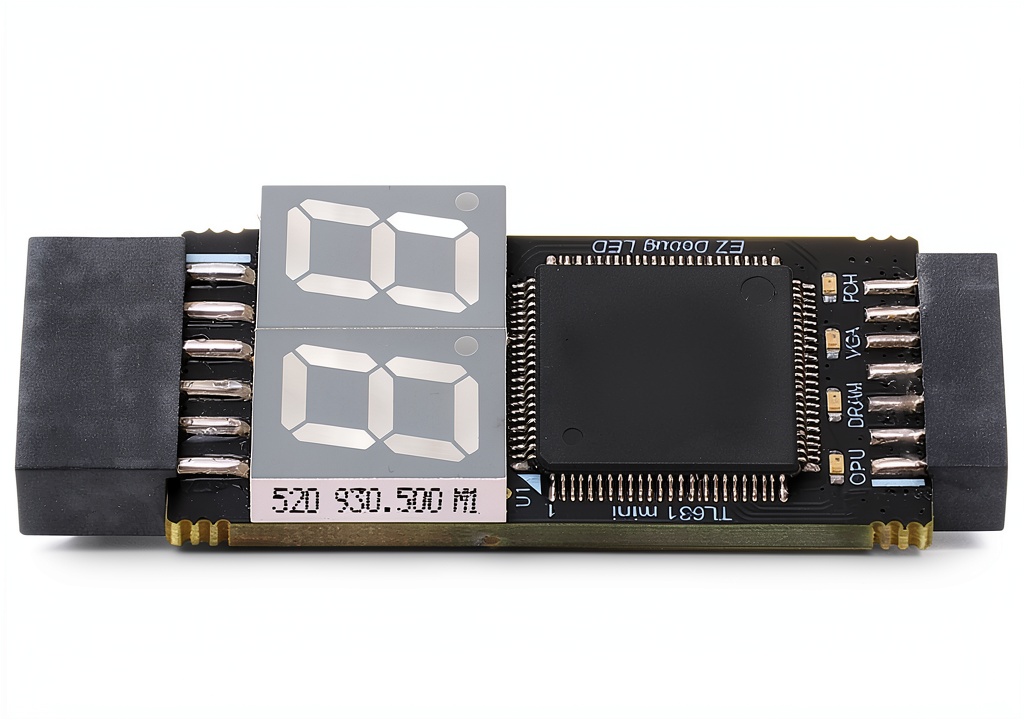

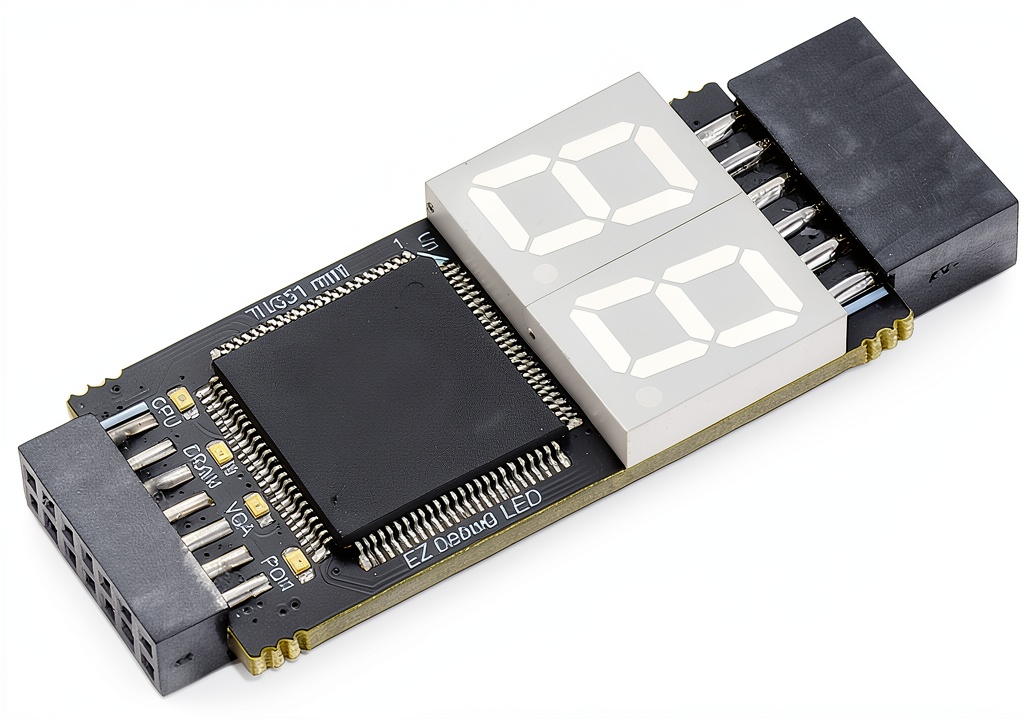

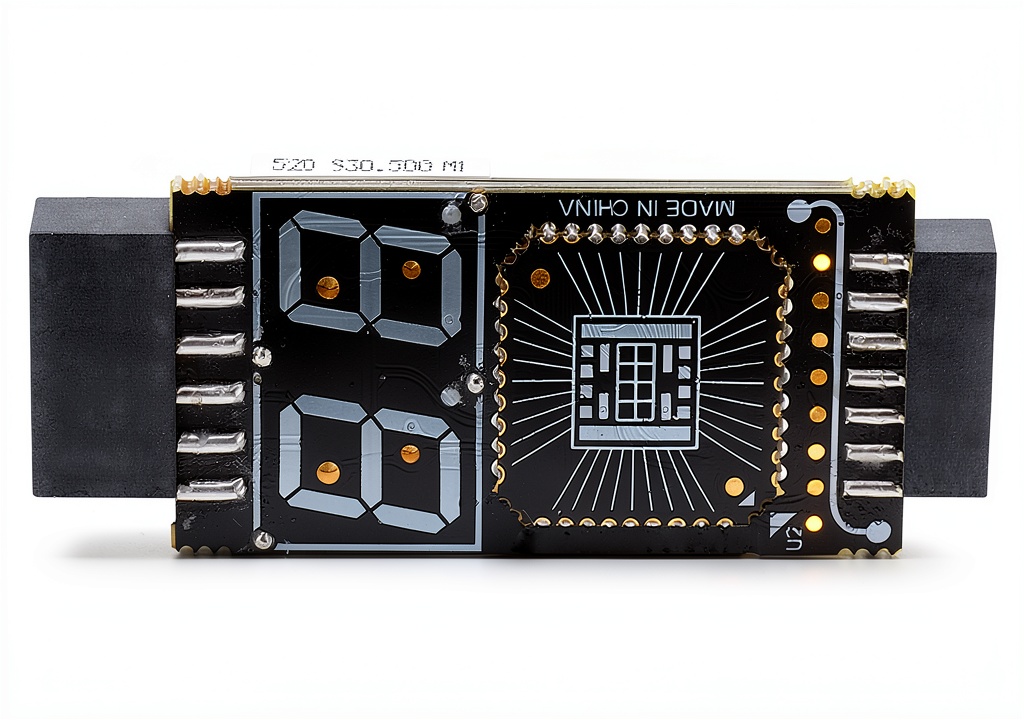

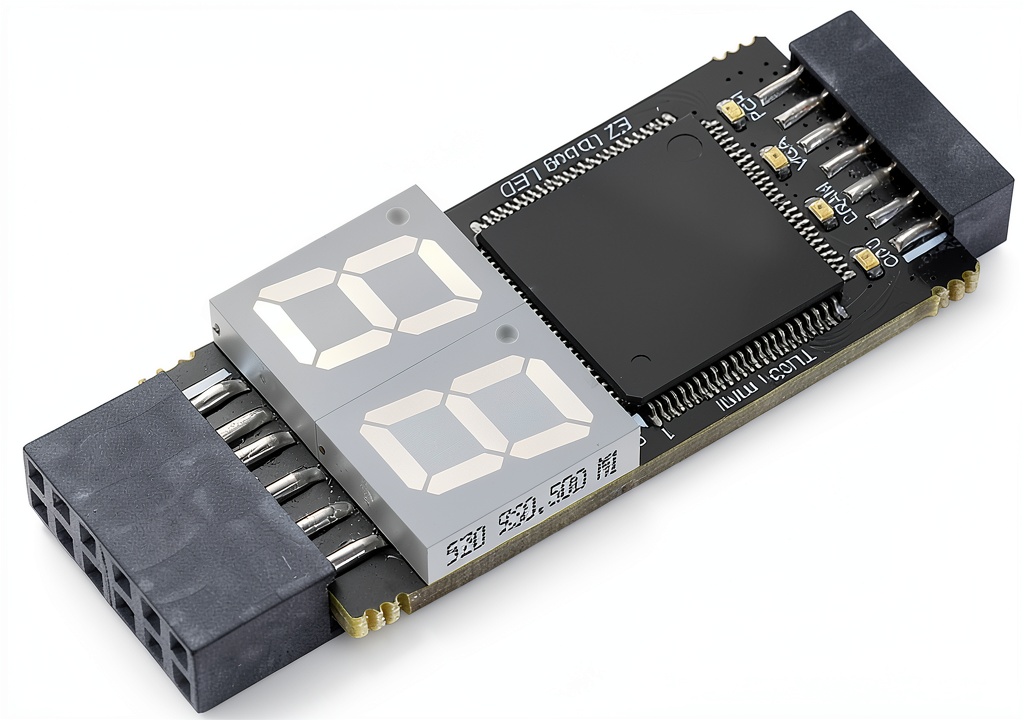

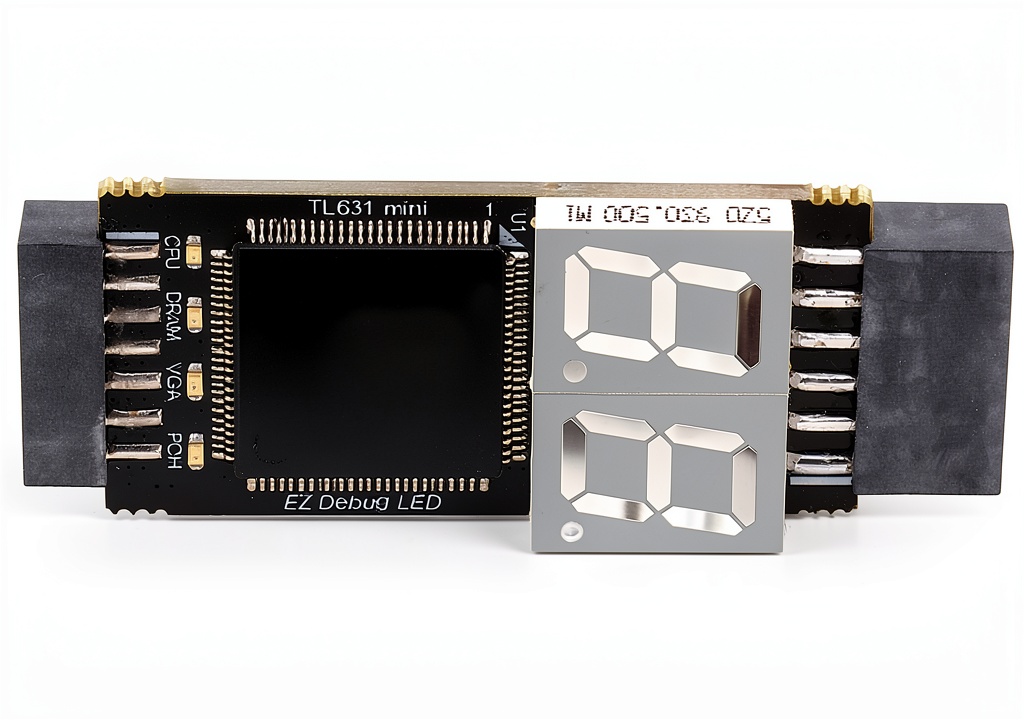

The TL631 Mini Motherboard Analyzer is a compact yet powerful diagnostic card designed for modern computer repair and development environments. Engineered by ViaGasaFamido, this tool integrates seamlessly with PCIe, mini PCIe, and LPC slots, delivering real‑time insight into system health. Its robust construction, featuring a lightweight metal chassis and high‑visibility LED array, ensures durability while providing clear visual feedback on power, CPU, memory, video, and storage subsystems. The package includes a laptop adapter card, a versatile connection cable, and ribbon cables, allowing technicians to quickly attach the analyzer to a wide range of motherboards without the need for additional adapters. With a weight of just 0.529 ounces and dimensions of 6.3 × 4.33 × 0.39 inches, the TL631 is portable enough for field service yet feature‑rich for lab use.

Usage

Designed for both professional service technicians and electronics hobbyists, the TL631 excels in diagnosing a variety of issues ranging from power‑supply anomalies to peripheral failures. In a typical workflow, the user inserts the card into an available PCIe slot, connects the supplied ribbon cables to the target motherboard, and powers the system. The LED indicators instantly reveal the status of critical components, enabling rapid identification of faulty modules. This makes the analyzer ideal for troubleshooting desktop PCs, workstations, and even certain laptop motherboards when used with the included adapter. Its serial communication protocol supports COM DEBUG, UART1, and MSI JDP, expanding its utility for firmware developers who need to monitor low‑level signals during debugging sessions.

Why Choose Us

ViaGasaFamido has a reputation for delivering reliable testing equipment that meets the rigorous demands of industrial and scientific applications. The TL631 benefits from a high recognition rate, automatically detecting power modules and adapting to various motherboard configurations without manual reconfiguration. Quality control processes include multi‑stage testing, thermal cycling, and electromagnetic compatibility verification, ensuring each unit performs consistently under diverse operating conditions. Additionally, the product is backed by a responsive customer support team that provides technical assistance, firmware updates, and warranty service, reinforcing confidence for users who rely on uninterrupted diagnostic capabilities.

Key Features

• Universal compatibility with PCIe, mini PCIe, and LPC slots for broad device coverage

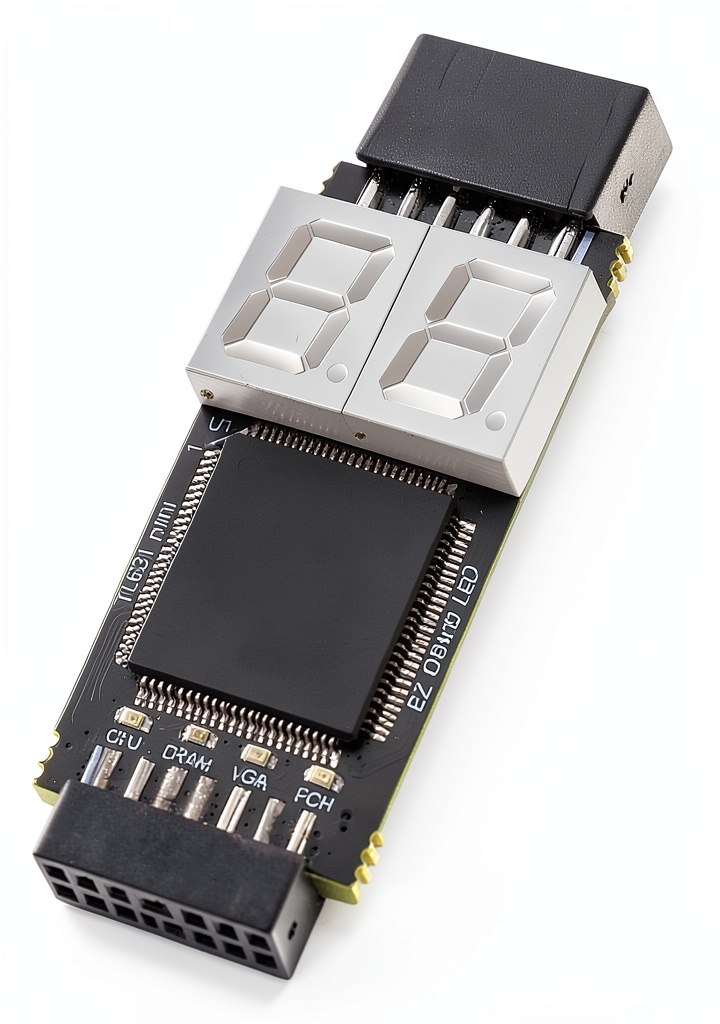

• Clear LED status indicators simplify fault isolation across power, CPU, memory, video, and storage
• Integrated serial communication protocols support advanced debugging and firmware development
• Compact, lightweight design enables easy transport and on‑site troubleshooting
• Comprehensive kit includes adapter card, connection cable, and ribbon cables for plug‑and‑play operation
• Responsive after‑sales support and firmware updates ensure long‑term reliability

FAQ

What motherboard interfaces does the TL631 support?

The TL631 works with standard PCIe slots, mini PCIe slots, and LPC ports, making it suitable for a wide range of desktop and laptop motherboards.

How do the LED indicators help in diagnosing issues?

Each LED corresponds to a specific subsystem—power, CPU, memory, video, and storage—allowing you to quickly see which component is not functioning correctly without needing to open the case.

Is any special software required to use the diagnostic card?

No additional software is needed for basic LED monitoring. For advanced serial communication debugging, you can use any standard terminal program that supports COM, UART, or MSI JDP protocols.

Can the TL631 be used on laptops?

Yes, the included laptop adapter card enables connection to laptop motherboards that expose an LPC interface, extending the card’s utility beyond desktop systems.

What warranty and support options are available?

ViaGasaFamido provides a one‑year limited warranty covering manufacturing defects, along with access to technical support via email and phone for troubleshooting assistance.
