RigExpert AA-35 Zoom HF Antenna Analyzer 0.06‑35 MHz Portable Tester

Description

Product Overview

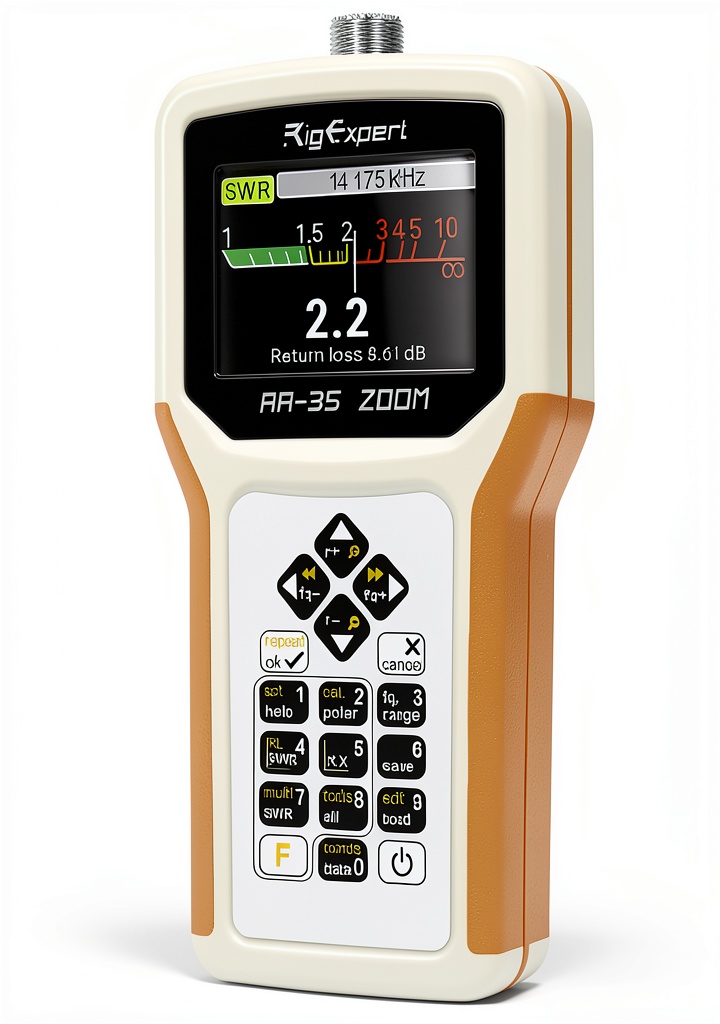

The RigExpert AA-35 Zoom HF Antenna Analyzer is engineered to deliver precise impedance, SWR, and resonance data across a broad frequency spectrum from 0.06 MHz up to 35 MHz. Its compact dimensions of 4.06 x 1.46 x 8.15 inches and lightweight 1.58‑pound build make it easy to carry in a field bag or place on a workbench. Powered by two standard AA batteries, the unit operates for many hours without the need for external power, ensuring uninterrupted testing in remote locations. The device features a clear LCD display, intuitive navigation buttons, and a built‑in speaker that audibly indicates resonance points, allowing users to perform rapid checks without constantly staring at the screen.

Designed for both amateur radio enthusiasts and professional RF engineers, the AA‑35 offers a versatile set of measurement modes, including antenna tuning, coaxial stub analysis, cable loss and characteristic impedance determination, as well as capacitance and inductance evaluation of reactive loads. The analyzer’s built‑in frequency generator produces a stable signal that can be injected into the device under test, while the internal detector accurately captures reflected power to calculate SWR and impedance values. All measurements are presented in real‑time, enabling users to make immediate adjustments to antennas or transmission lines.

Construction quality is a hallmark of RigExpert products. The AA‑35 housing is molded from high‑impact ABS plastic, providing resistance to drops and environmental exposure. Internal circuitry is shielded to minimize interference, and the device complies with relevant FCC regulations for emissions. The analyzer also includes a detachable BNC connector for easy integration with a variety of test accessories, such as adapters, baluns, and extension cables, expanding its utility across diverse testing scenarios.

Usage

In a typical field deployment, an operator can quickly attach the AA‑35 to an antenna feed line, power it with two AA cells, and begin sweeping the frequency range to locate the antenna’s resonant point. The audible tone that rises at resonance helps users fine‑tune the antenna length or adjust matching networks without needing to watch the display constantly. This makes the analyzer especially valuable for portable HF stations, emergency communications setups, and temporary field operations where speed and simplicity are critical.

Within a laboratory or workshop environment, the AA‑35 serves as a reliable tool for evaluating coaxial cable quality, measuring loss, and verifying characteristic impedance. By connecting the analyzer to a known reference load, technicians can identify faults such as shorts, opens, or impedance mismatches, and then document the results for maintenance records. The device’s ability to measure capacitance and inductance also supports the design and verification of antenna matching circuits, RF filters, and other reactive components.

For educational purposes, the AA‑35 provides a hands‑on learning platform for students studying antenna theory, transmission line fundamentals, and RF measurement techniques. Its straightforward interface encourages experimentation, while the visual and audible feedback reinforces theoretical concepts. Whether used in a university lab, a hobbyist club, or a private workshop, the analyzer helps bridge the gap between abstract calculations and real‑world performance.

Why Choose Us

RigExpert has built a reputation for delivering high‑quality RF test equipment that combines accuracy with user‑friendly design. The AA‑35 continues this tradition by offering a measurement accuracy that rivals more expensive bench‑top analyzers, yet it remains affordable for a wide audience. Our commitment to durability means the analyzer is tested against rigorous drop and vibration standards, ensuring it survives the rigors of field work and frequent handling.

Customer support is a core pillar of the RigExpert experience. Every AA‑35 unit is backed by a comprehensive warranty and access to a dedicated technical assistance team that can help with setup, troubleshooting, and firmware updates. We also provide an extensive online knowledge base, video tutorials, and community forums where users can share tips, ask questions, and collaborate on projects.

In addition to the hardware, RigExpert continuously refines the firmware to improve measurement speed, add new features, and enhance the user interface based on feedback from the field. This ongoing development ensures that owners of the AA‑35 benefit from a product that evolves over time, protecting their investment and keeping the analyzer relevant as RF technology advances.

Key Features

• Broad frequency coverage from 0.06 MHz to 35 MHz for versatile HF testing
• Battery‑operated design with two AA cells for true portability and long runtime
• Instant audible resonance tone and clear LCD display for fast, intuitive tuning
• Multi‑mode functionality: antenna tuning, coax loss, impedance, capacitance, and inductance measurement
• Responsive after‑sales support, firmware updates, and a robust warranty for peace of mind

FAQ

What types of antennas can I test with the AA‑35?

The AA‑35 is suitable for any HF antenna, including dipoles, verticals, end‑fed wires, and loop antennas. Its wide frequency range allows you to evaluate resonance and SWR across the entire HF band, making it a universal tool for amateur and professional installations.

Can the analyzer measure coaxial cable loss accurately?

Yes. By connecting the analyzer to one end of the coax and using a known reference load, the device calculates insertion loss and characteristic impedance. This helps identify damaged sections, mismatches, or excessive attenuation in the cable run.

Do I need any additional accessories to use the AA‑35?

The unit includes a detachable BNC connector, but you may want to add adapters, baluns, or extension cables depending on your specific antenna or test setup. All accessories are standard RF components that can be sourced from most electronics suppliers.

How does the audible resonance tone work?

When the analyzer sweeps the frequency range, it generates a tone that rises in pitch as the antenna approaches resonance. At the exact resonant frequency, the tone peaks, providing a clear audible cue that helps you fine‑tune the antenna without constantly watching the screen.

Is the AA‑35 suitable for professional RF engineering work?

Absolutely. While its user‑friendly interface appeals to hobbyists, the measurement accuracy, repeatability, and comprehensive feature set meet the requirements of professional engineers who need reliable data for antenna design, troubleshooting, and certification tasks.
