USB Logic Analyzer WWZMDiB 8-Channel 24Msps ARM FPGA Debugging Tool

Description

Product Overview

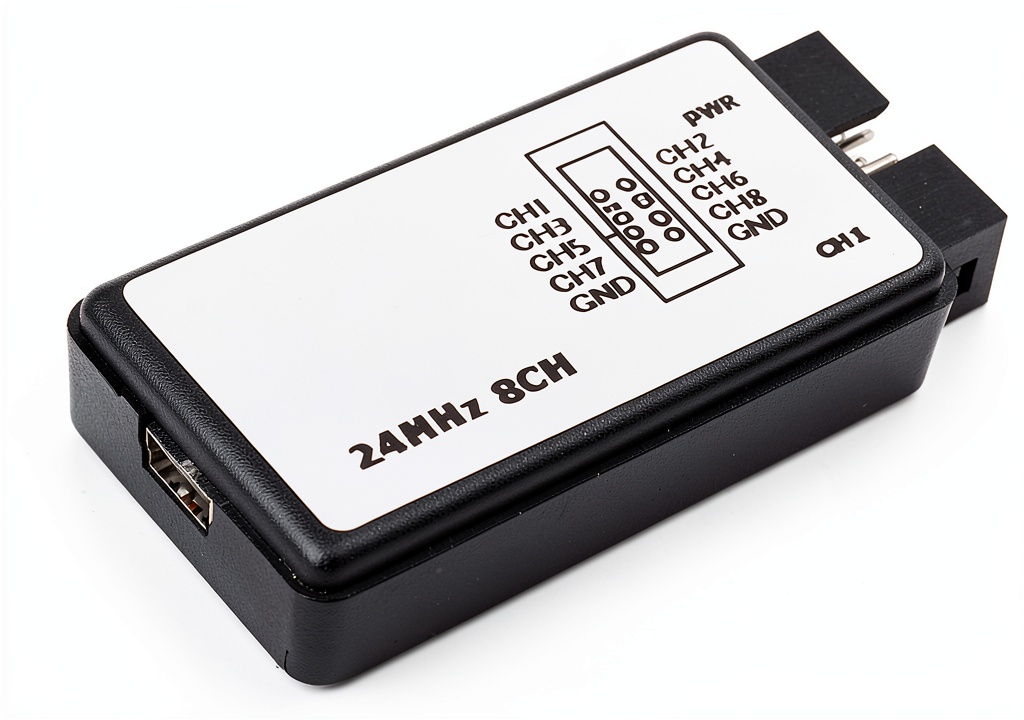

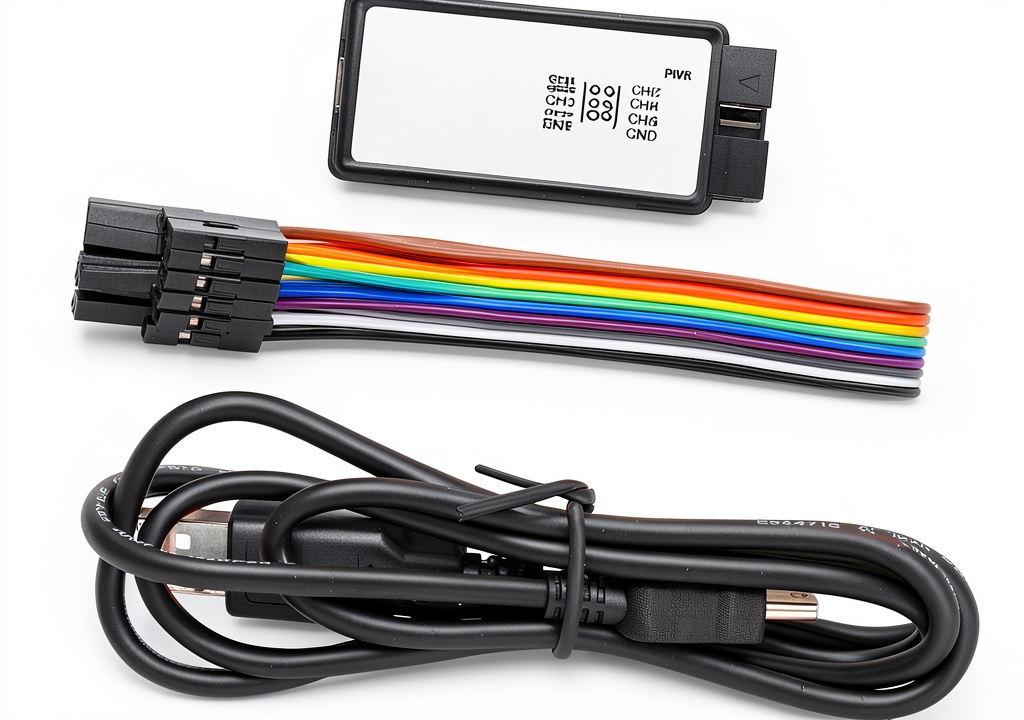

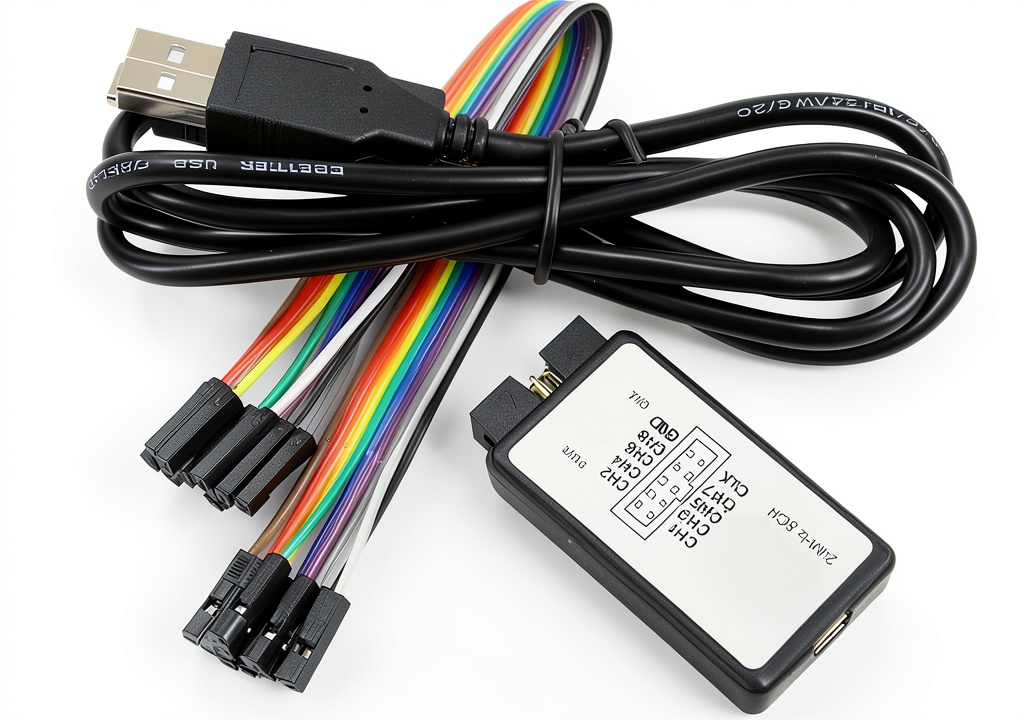

The WWZMDiB USB Logic Analyzer is engineered to meet the demanding needs of modern hardware developers, offering a robust combination of speed, channel count, and protocol support. With a maximum sampling rate of 24Msps, the device captures high‑frequency signals with precision, ensuring that even the most transient glitches are recorded accurately. Its eight independent digital inputs accept voltage levels from 0 to 5V, making it compatible with a wide range of microcontrollers, FPGA boards, and peripheral devices. The analyzer connects via a standard USB interface, delivering plug‑and‑play compatibility with Linux operating systems and eliminating the need for additional drivers or complex setup procedures. Compact dimensions of 4.72 x 3.27 x 0.75 inches and a lightweight design of just 1.76 ounces allow engineers to carry the tool easily between workstations, labs, and field sites. The unit includes built‑in protocol decoders for UART, I2C, SPI, CAN, SMBus, I2S, and custom formats, providing real‑time interpretation of communication streams without requiring external software licenses. This comprehensive feature set positions the WWZMDiB analyzer as a cost‑effective yet powerful solution for debugging, validation, and performance analysis across a broad spectrum of electronic projects.

Usage

Designed for engineers, hobbyists, and educators, the WWZMDiB USB Logic Analyzer excels in a variety of real‑world scenarios. In a typical development workflow, users connect the analyzer to a target board via its eight channels, launch the accompanying software on a Linux PC, and begin capturing waveforms instantly. The high sampling speed enables detailed analysis of fast serial protocols such as SPI and CAN, while the protocol decoders automatically translate raw binary data into human‑readable formats, accelerating troubleshooting cycles. Whether you are debugging an ARM Cortex‑M microcontroller firmware, validating FPGA timing constraints, or testing custom peripheral interfaces, the analyzer provides the visibility required to identify timing violations, data corruption, and logic errors. Its USB connectivity also supports remote operation, allowing users to monitor devices located in test chambers or embedded environments without direct physical access. Educational settings benefit from the intuitive interface and clear visualizations, helping students grasp complex digital communication concepts through hands‑on experimentation. The analyzer’s versatility extends to hobbyist projects, where its affordable price point and straightforward setup make it an ideal companion for Arduino, Raspberry Pi, and other open‑source platforms.

Why Choose Us

Choosing the WWZMDiB USB Logic Analyzer means investing in a product that balances performance, reliability, and support. Each unit undergoes rigorous quality control testing to ensure consistent sampling accuracy and long‑term durability, even under continuous operation. The device’s firmware is regularly updated to incorporate the latest protocol definitions and performance optimizations, guaranteeing that users stay ahead of emerging standards. WWZMDiB provides comprehensive technical documentation, including detailed user manuals, application notes, and example projects, empowering customers to get the most out of their analyzer from day one. In addition, a responsive customer support team is available to assist with integration questions, software configuration, and troubleshooting, offering personalized guidance that extends beyond the typical warranty period. The company’s commitment to open communication and continuous improvement is reflected in its active community forums, where users share insights, scripts, and custom decoder implementations. By selecting this analyzer, you benefit from a trusted brand that prioritizes engineering excellence and customer satisfaction.

Key Features

• Eight high‑speed digital channels capture complex signals up to 24Msps, reducing missed events.
• Built‑in protocol decoders for UART, I2C, SPI, CAN and more simplify analysis and speed up debugging.
• Plug‑and‑play USB connection works seamlessly with Linux, eliminating driver hassles.
• Compact, lightweight design enables portable testing in labs, field, or classroom environments.
• Responsive technical support and regular firmware updates ensure long‑term reliability and performance.

FAQ

What operating systems are supported?

The analyzer is fully compatible with Linux distributions. Drivers are included in the software package, and no additional installation steps are required.

Can the device decode custom protocols?

Yes, the software allows users to define custom protocol decoders using a scripting interface, enabling support for proprietary or emerging communication standards.

Is there a warranty or return policy?

WWZMDiB offers a one‑year limited warranty covering manufacturing defects, and a 30‑day return policy for unused items, providing peace of mind for new purchasers.

How many samples can be stored during a capture?

The analyzer can store up to several megabytes of data per capture, limited only by the host computer’s available RAM and storage capacity.

What is the maximum input voltage range?

All eight channels accept input voltages from 0 V to 5 V, making the device suitable for most digital logic levels used in embedded systems.
