USB Logic Analyzer 24MHz 8CH Ferwooh with 12 Color Test Hook Clips

Description

Product Overview

The Ferwooh USB Logic Analyzer is engineered for engineers, developers, and hobbyists who require a compact yet powerful tool to capture and analyze digital signals. Operating at a maximum sampling rate of 24 megasamples per second, the device can monitor up to eight independent channels simultaneously, providing the granularity needed for high‑frequency protocols such as UART, I²C, and SPI. Its input voltage range of 0 to 5 V makes it compatible with a wide variety of microcontroller and sensor outputs, while the defined low‑level ( 1.4 V) thresholds ensure accurate logic level detection across diverse circuit conditions.

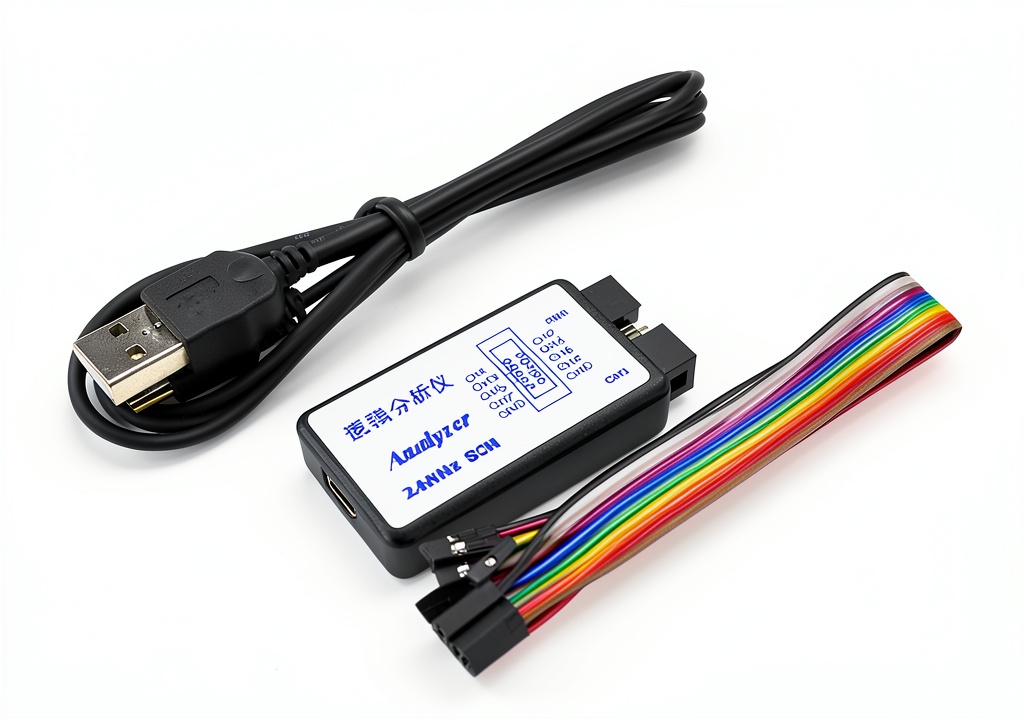

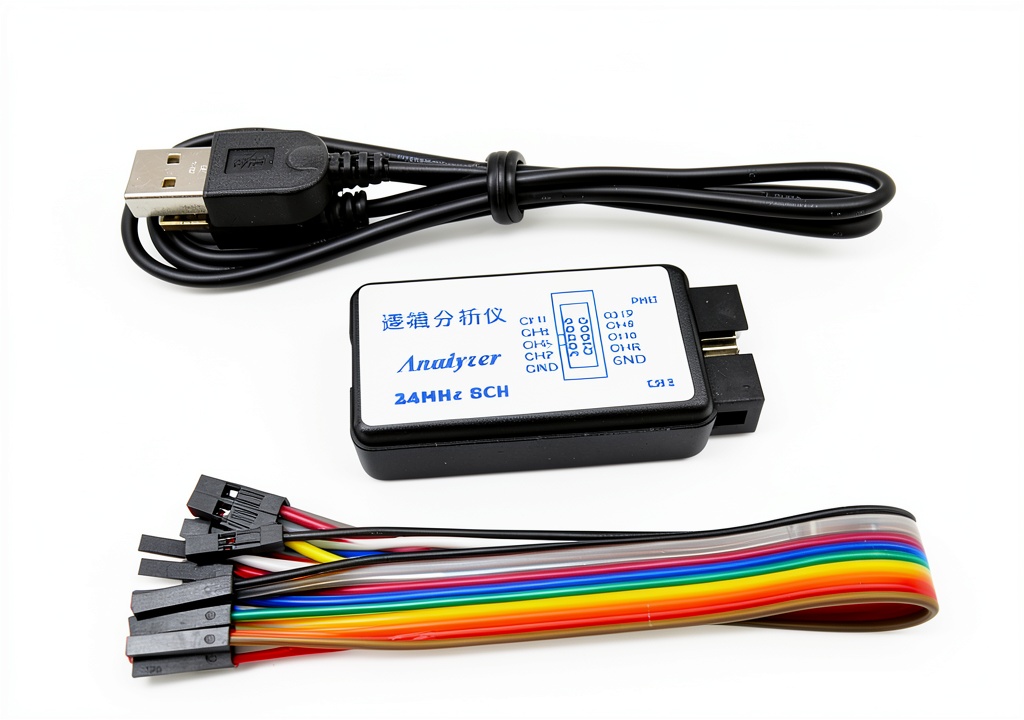

Beyond raw sampling speed, the analyzer offers flexible trigger options, allowing users to isolate specific events or patterns within a data stream. The included software suite runs on Windows 7 (both 32‑ and 64‑bit), Windows 10, Windows 11, as well as Linux distributions, delivering an intuitive graphical interface for real‑time waveform visualization, protocol decoding, and data export. The hardware package is thoughtfully assembled: a sturdy USB‑type‑C connector for reliable power and data transfer, a 12‑piece set of six‑color test hook clips designed to latch onto surface‑mount devices without soldering, and a short USB cable for immediate deployment.

Usage

In practical terms, the Ferwooh analyzer excels in environments where space is at a premium and rapid debugging cycles are essential. Whether you are developing firmware for an embedded system, troubleshooting communication between peripheral modules, or validating timing constraints in a prototype board, the device fits comfortably on a workbench or inside a portable toolkit. Its eight‑channel capability means you can simultaneously monitor power rails, clock lines, data buses, and control signals, reducing the need for multiple instruments and streamlining the diagnostic process.

Typical use cases include capturing UART traffic to verify baud‑rate settings, decoding I²C transactions to ensure correct address acknowledgment, and analyzing SPI exchanges to detect timing mismatches. The analyzer’s ability to measure pulse widths with an accuracy of ±42 ns at 24 MHz further empowers users to assess signal integrity and jitter, which is critical in high‑speed communication and precision timing applications. Because the device is USB‑powered, it can be operated directly from a laptop or a powered USB hub, making it ideal for field work, classroom demonstrations, and on‑site service calls.

Why Choose Us

Choosing the Ferwooh USB Logic Analyzer means investing in a solution that balances performance, affordability, and user‑centric design. The product is manufactured by Ferwooh, a brand known for delivering reliable testing equipment that adheres to strict quality standards. Each unit undergoes comprehensive functional testing before shipment, guaranteeing that the sampling engine, voltage thresholds, and USB interface meet the specifications advertised. Moreover, the inclusion of a full set of colorful test hook clips eliminates the need for additional accessories, providing immediate value out of the box.

Customer support is a cornerstone of the Ferwooh experience. Buyers gain access to a dedicated technical assistance team that can help with software installation, driver issues, and advanced troubleshooting techniques. Firmware updates are released regularly to expand protocol support and improve stability, and these updates are delivered through an easy‑to‑use update utility. The company also maintains an online knowledge base filled with tutorials, example projects, and community forums where users can share insights and solutions.

From a durability perspective, the analyzer’s enclosure is constructed from high‑impact ABS plastic, offering resistance to drops and everyday wear. The USB connector is reinforced with a metal shield to protect against bending, and the test hook clips are fabricated from spring‑tempered alloy that retains its gripping force over thousands of insertion cycles. This combination of robust materials ensures that the device can withstand the rigors of both laboratory and field environments.

Key Features

• 24 MHz sampling rate per channel delivers high‑resolution capture of fast digital signals.
• Eight independent channels let you monitor multiple lines simultaneously, simplifying complex debugging tasks.

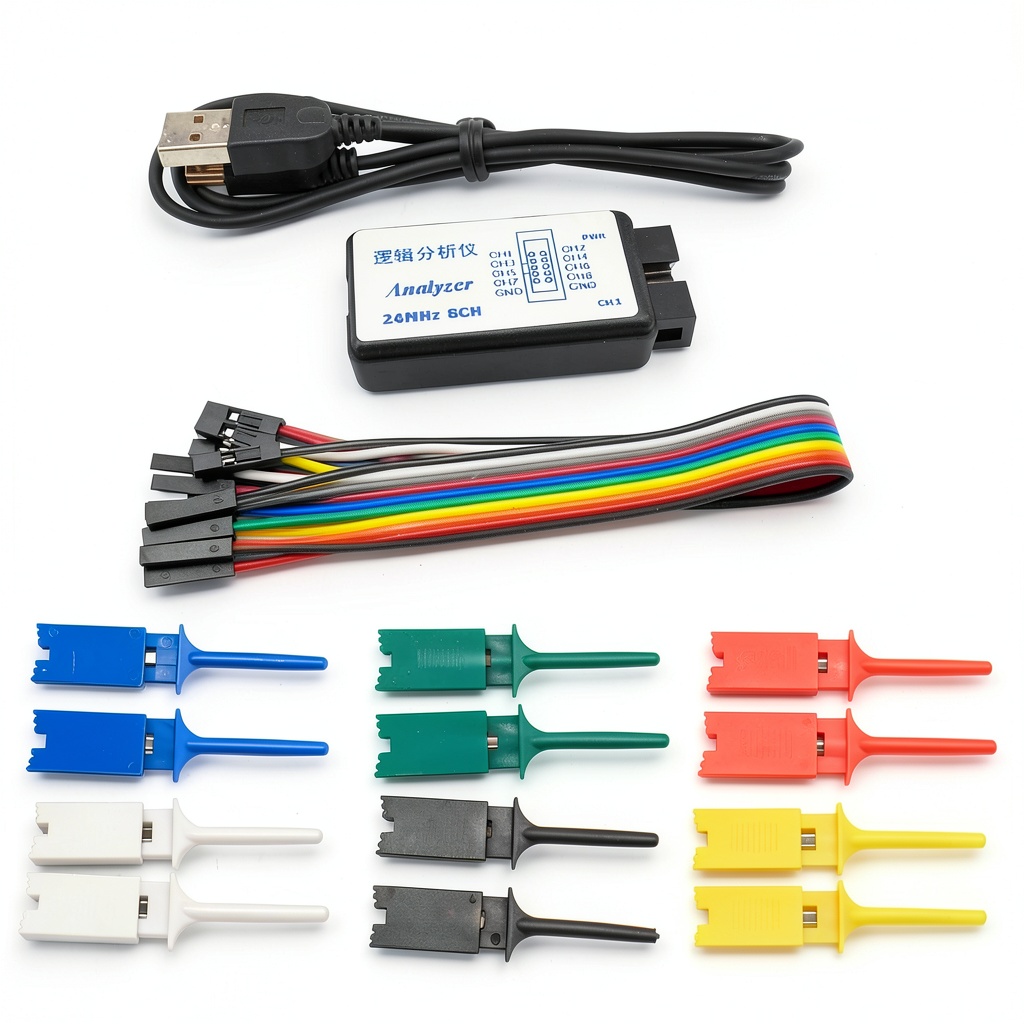

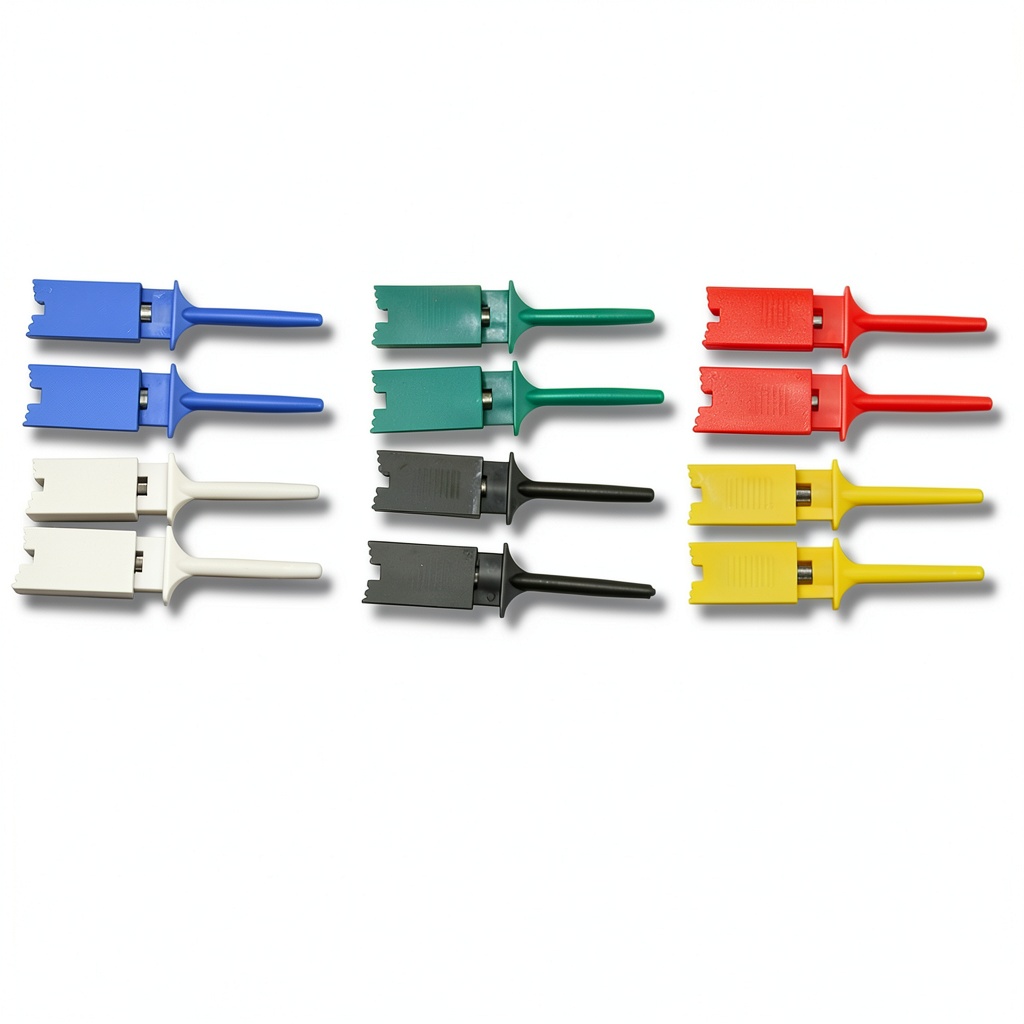

• Inclusive set of 12 six‑color test hook clips provides instant, solder‑free access to surface‑mount components.
• Cross‑platform software supports Windows and Linux, offering real‑time waveform display and protocol decoding.
• Responsive customer support and regular firmware updates ensure long‑term reliability and feature growth.
