USB Logic Analyzer ViaGasaFamido 8-Channel 24MHz DSLogic Plus

Description

Product Overview

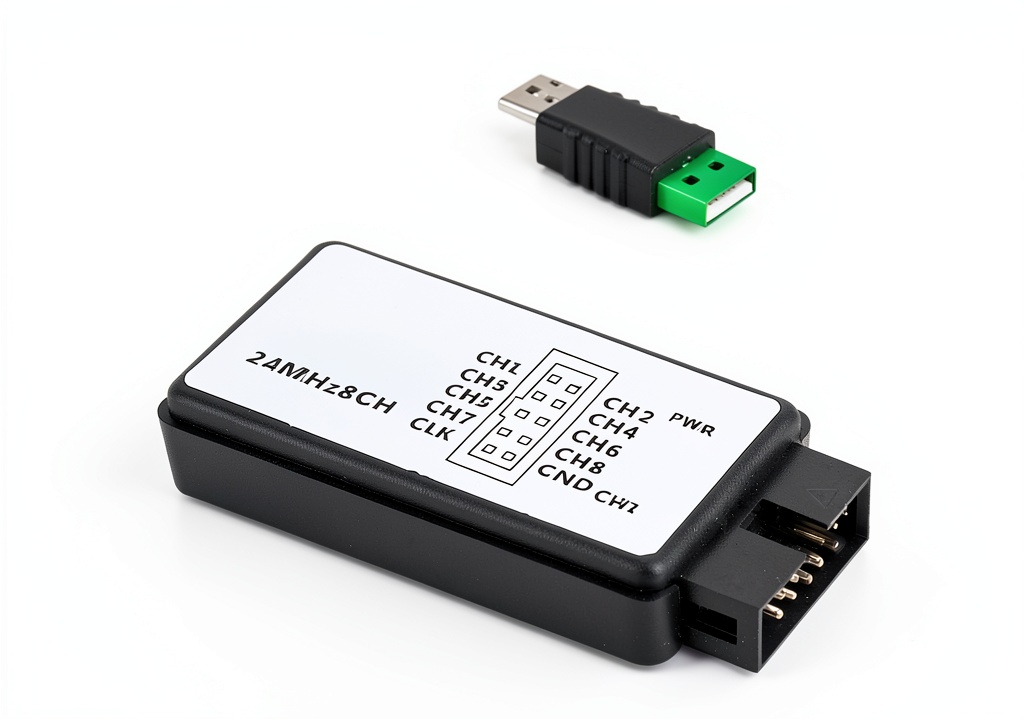

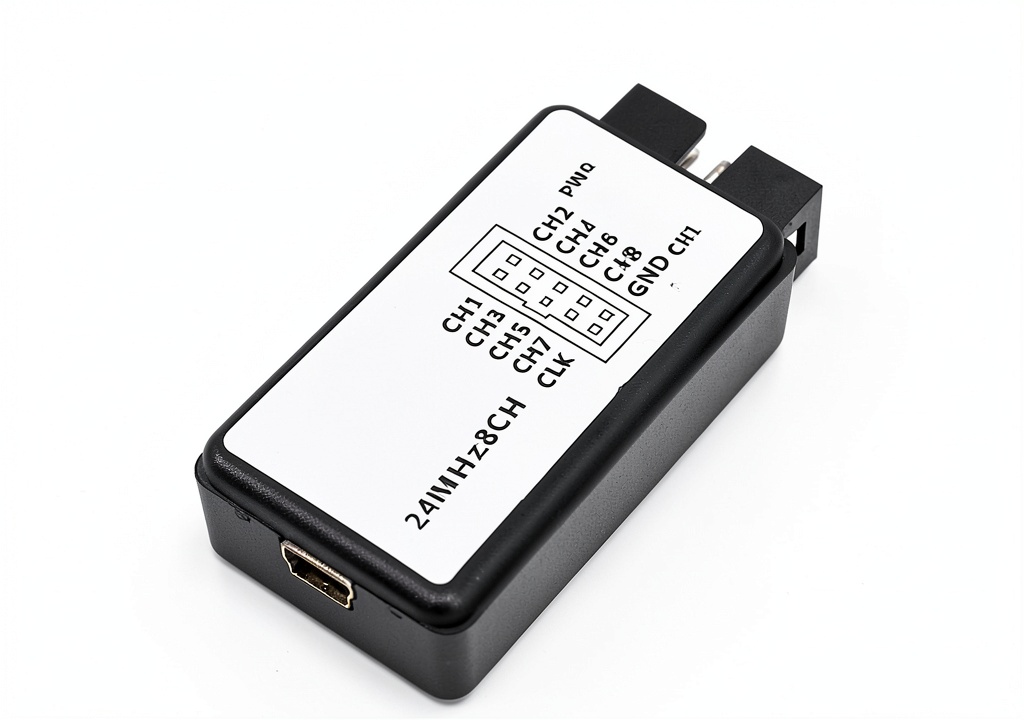

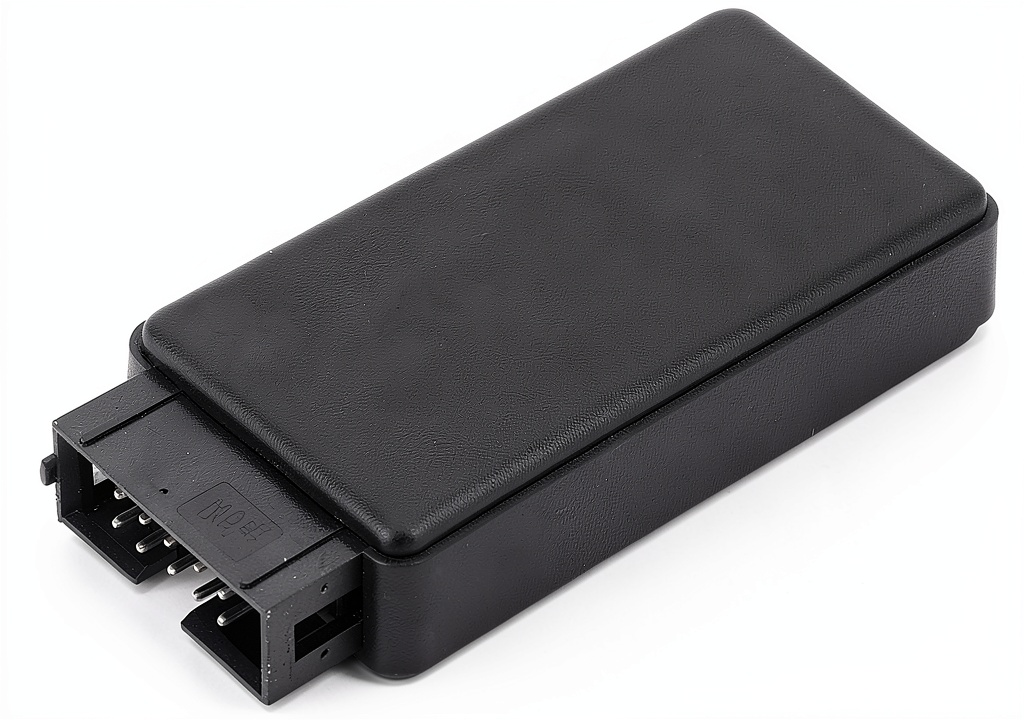

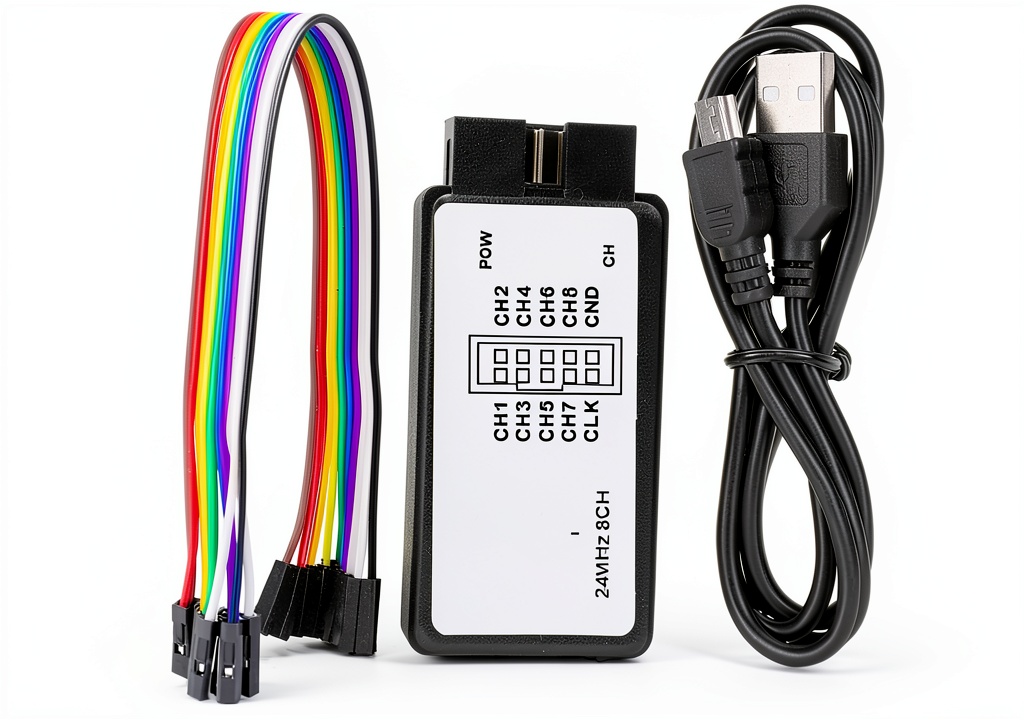

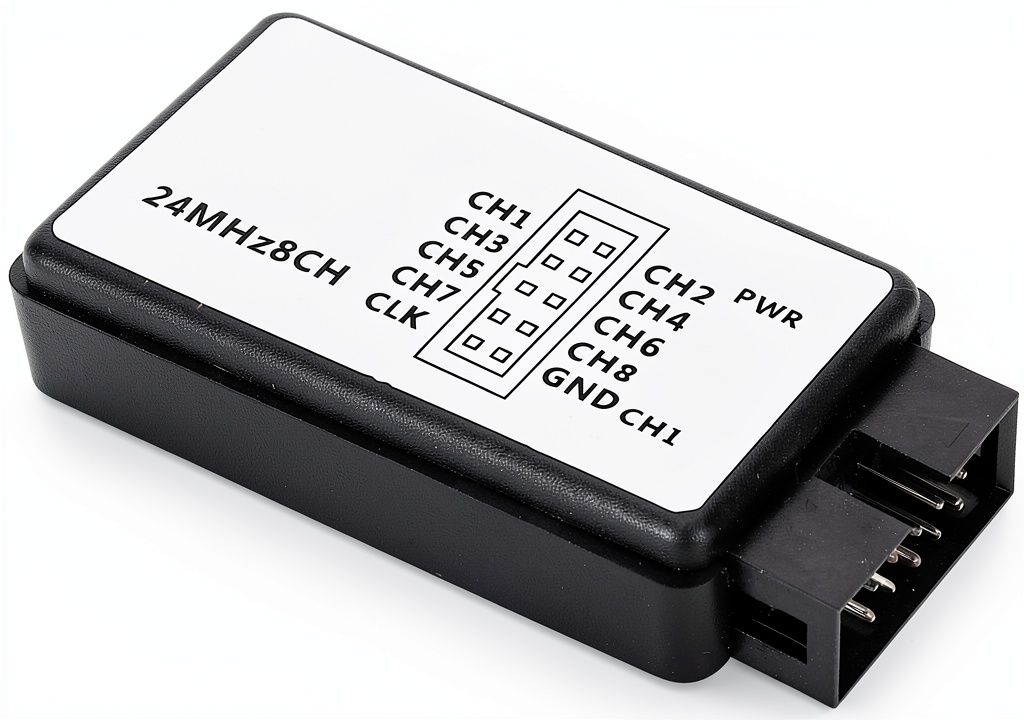

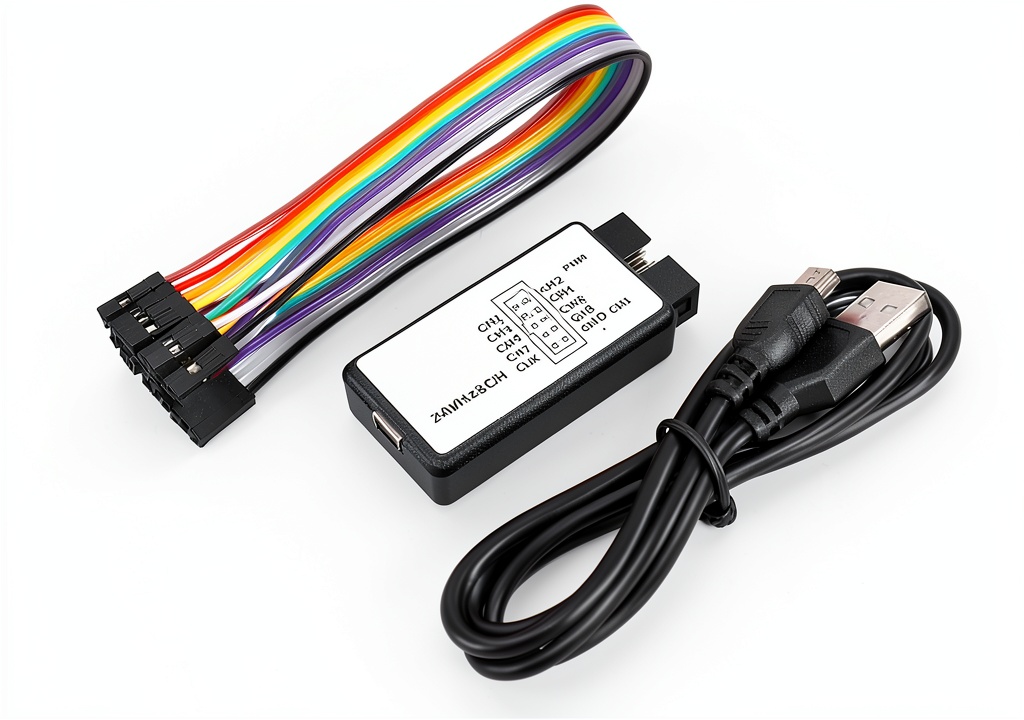

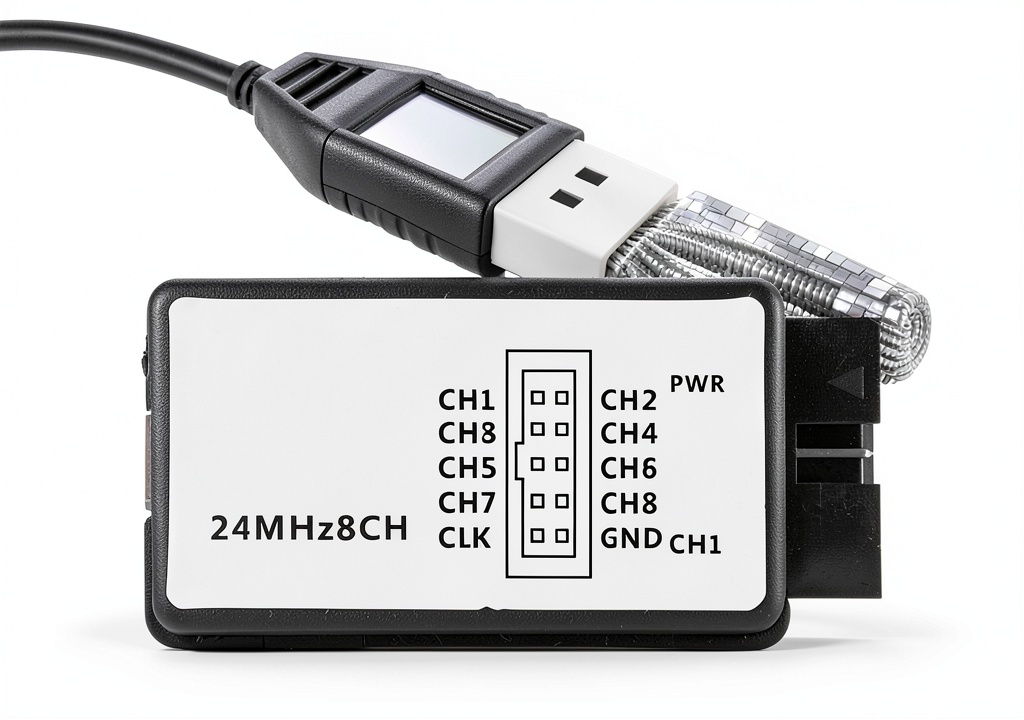

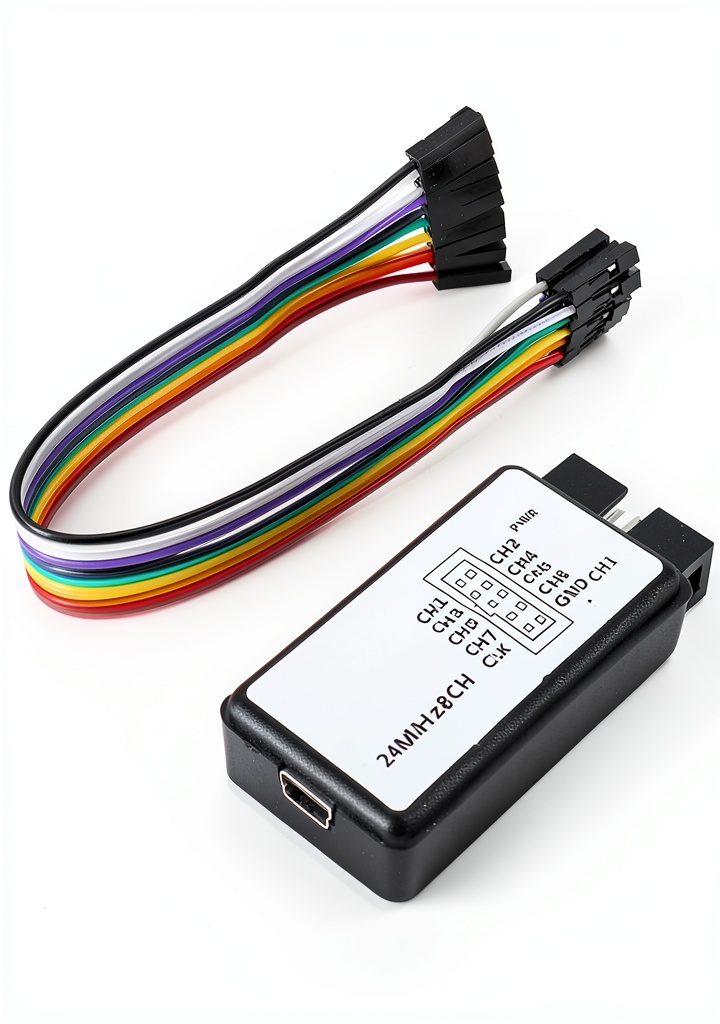

The ViaGasaFamido USB Logic Analyzer is engineered to meet the demanding needs of modern electronics development. Featuring eight independent digital inputs, the device captures signals at up to 24 MHz per channel, delivering precise timing information essential for debugging complex circuits. Its compact, pocket‑size chassis houses a high‑quality printed circuit board (PCB) that ensures signal integrity and long‑term durability, even in rigorous laboratory environments. The analyzer connects directly to a computer via a standard USB interface, eliminating the need for external power sources and simplifying setup.

Designed with both professionals and hobbyists in mind, the analyzer supports a wide range of trigger modes, including rising edge, falling edge, high‑level, low‑level, and composite triggers. This flexibility allows users to isolate specific events within a digital stream, reducing the time spent sifting through irrelevant data. The device’s firmware is compatible with popular open‑source analysis software, providing a familiar user experience and extensive post‑processing capabilities.

Usage

In a typical engineering workflow, the USB Logic Analyzer is employed to monitor microcontroller I/O lines, communication buses such as I²C, SPI, and UART, as well as custom digital protocols. Its high sampling rate makes it suitable for capturing fast edge transitions, ensuring that timing violations are detected early in the design cycle. The analyzer’s lightweight form factor allows it to be used on‑bench, in field testing, or integrated into portable test rigs for on‑site diagnostics.

Educators leverage the device in classroom labs to demonstrate real‑time digital signal behavior, giving students hands‑on experience with waveform analysis and trigger configuration. Hobbyists appreciate the plug‑and‑play nature of the analyzer, which requires only a USB connection to begin capturing data, making it an ideal companion for DIY projects, robotics, and home automation prototypes.

Why Choose Us

ViaGasaFamido distinguishes itself through a commitment to quality and customer satisfaction. Each analyzer is manufactured using premium PCB materials that resist wear and maintain signal fidelity over thousands of test cycles. Rigorous quality control processes ensure that every unit meets exacting performance standards before it reaches the market.

Our after‑sales support includes comprehensive documentation, firmware updates, and responsive technical assistance. Users can rely on a dedicated support team to troubleshoot configuration issues, provide software guidance, and recommend best practices for optimal data acquisition. This level of service reduces downtime and enhances the overall testing experience.

Furthermore, the analyzer’s cost‑effective pricing does not compromise on functionality. By integrating advanced trigger options and high‑speed sampling into a single, affordable device, we empower engineers and makers to achieve professional‑grade results without exceeding budget constraints.

Key Features

• Eight independent channels capture digital signals up to 24 MHz per channel, delivering detailed timing insight.
• Compact pocket‑size design with durable PCB construction ensures reliable performance in any environment.
• USB‑powered operation eliminates the need for external power, simplifying setup and increasing portability.
• Multiple trigger modes—including edge, level, and composite triggers—allow precise event isolation.
• Responsive customer support and regular firmware updates provide ongoing value and peace of mind.

FAQ

What operating systems are supported?

The analyzer works with Windows, macOS, and major Linux distributions. Drivers are included with the software package, and the device is recognized as a standard USB HID class.

Do I need additional hardware to use the analyzer?

No external power or additional adapters are required. The analyzer connects directly to a computer via USB and draws all necessary power from the host.

Can the analyzer capture analog signals?

The device is designed for digital logic analysis only. For analog waveform capture, a separate oscilloscope or mixed‑signal analyzer is recommended.

How many samples can be stored in memory?

Each channel can store up to 1 M samples, providing ample buffer depth for extended capture sessions and complex trigger conditions.

Is the software compatible with third‑party analysis tools?

Yes, the analyzer supports standard protocols such as SCPI and can be integrated with popular open‑source tools like Sigrok, allowing flexible workflow customization.
