USB Logic Analyzer DUTTY 24MHz 8-Channel EMI Ferrite Ring USB Cable

Description

Product Overview

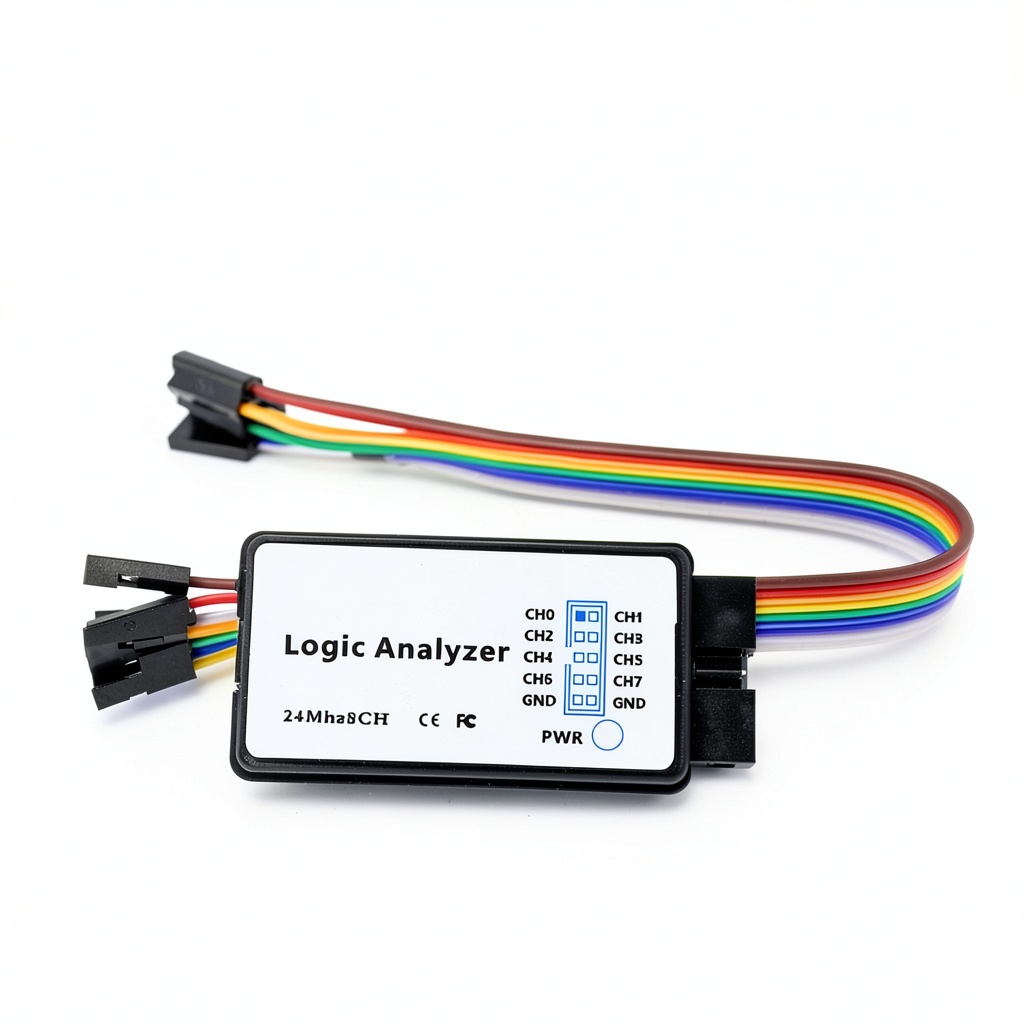

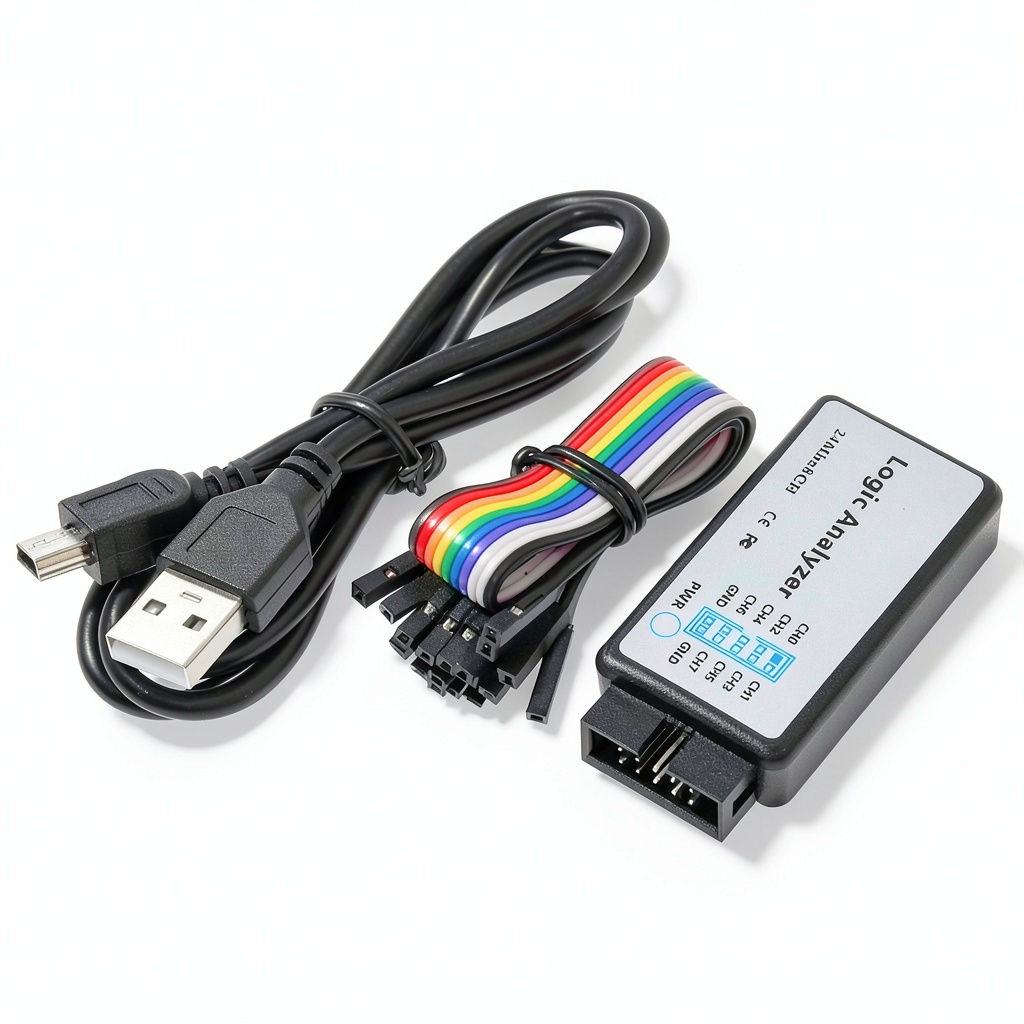

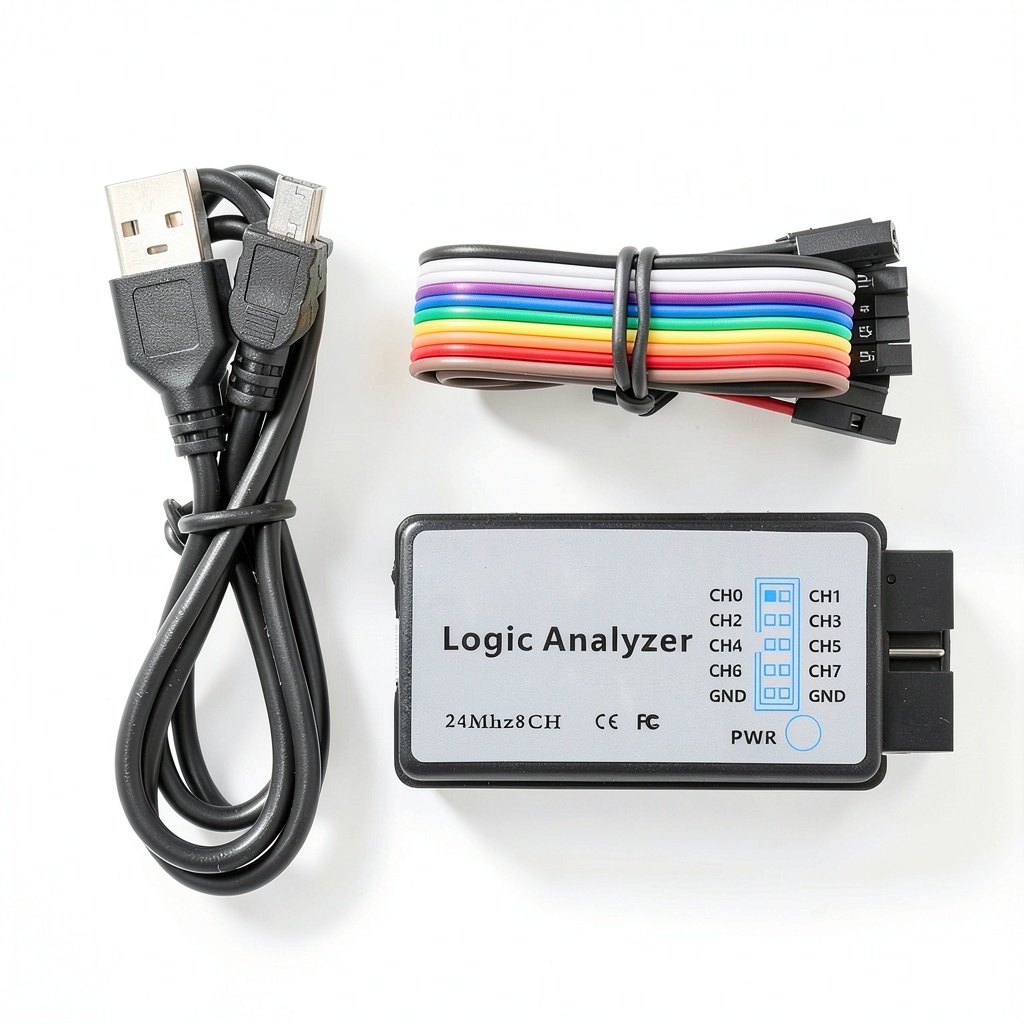

The DUTTY USB Logic Analyzer is a compact yet powerful instrument designed for capturing and analyzing digital signals in real time. Built with a high‑speed 24 MHz sampling engine, it provides eight independent channels that can monitor a wide range of logic levels, making it suitable for both simple and complex debugging tasks. The device incorporates a robust EMI ferrite ring on its USB cable, which minimizes electromagnetic interference and ensures clean data transmission even in noisy environments. Its input voltage range of –0.5 V to 5.25 V accommodates TTL, CMOS, and mixed‑signal circuits, while the 1 MΩ || 10 pF input impedance preserves signal integrity without loading the circuit under test.

Physically, the analyzer measures 5.79 × 4.18 × 0.71 inches and weighs only 1.27 ounces, allowing it to fit comfortably on any workstation or bench. The unit is powered directly from the USB port, eliminating the need for external power supplies and simplifying setup. With a durable plastic housing and a precision‑machined connector, the product is engineered for long‑term reliability in laboratory and field applications. The internal crystal oscillator maintains a tolerance of ±20 ppm, guaranteeing accurate timing across the full sampling range.

Accompanying software runs on Windows, macOS, and Linux, offering a graphical interface that visualizes waveforms, decodes common protocols, and exports data in CSV or VCD formats. The software also supports scripting for custom analysis, enabling advanced users to automate repetitive testing procedures. Firmware updates are delivered over the same USB connection, ensuring the device stays current with the latest features and bug fixes.

Usage

Engineers, developers, and hobbyists can employ the DUTTY analyzer in a variety of scenarios, from firmware development and protocol verification to educational labs and hobby projects. Its eight channels are ideal for monitoring multi‑wire buses such as UART, I²C, SPI, and custom parallel interfaces. The high sampling rate enables users to capture fast edge transitions and transient glitches that might be missed by slower instruments, providing deeper insight into timing relationships and signal integrity.

Because the analyzer is USB‑powered and includes an integrated ferrite ring, it works reliably on laptops, desktops, and even portable power banks, making it a versatile tool for on‑site troubleshooting, prototype validation, and remote debugging sessions. The device’s compact form factor also allows it to be mounted on a test rig or incorporated into a custom enclosure for automated testing environments.

In industrial settings, the analyzer can be used to validate communication between PLCs and sensor modules, ensuring that timing constraints are met and that noise immunity is sufficient. Automotive engineers may employ it to debug CAN‑like signals or to verify the correct operation of microcontroller‑based control units during development. In academic environments, the device serves as a hands‑on teaching aid for courses on digital electronics, embedded systems, and signal processing.

For hobbyists, the analyzer pairs well with popular development boards such as Arduino, Raspberry Pi, and ESP32, allowing users to explore serial communication, logic timing, and peripheral interactions without investing in expensive laboratory equipment.

Why Choose Us

DUTTY has a reputation for delivering high‑quality electronic testing equipment at an affordable price point. This logic analyzer benefits from rigorous quality control processes, including component screening, functional testing, and final inspection to ensure each unit meets the specified performance criteria. The inclusion of the EMI ferrite ring is a distinctive feature that reduces susceptibility to external noise, a common challenge in crowded lab settings.

Customers also receive comprehensive software support that includes a user‑friendly graphical interface, protocol decoders, and export options for CSV and VCD formats. Our technical support team is available to assist with setup, firmware updates, and troubleshooting, providing a seamless experience from purchase to daily operation. Additionally, the product is backed by a one‑year limited warranty, reflecting confidence in its durability and performance.

Manufacturing takes place in a certified ISO‑9001 facility, where each batch undergoes environmental stress screening to verify operation across temperature ranges from -20 °C to 70 °C. The device complies with RoHS and CE directives, ensuring it meets global safety and environmental standards. Regular firmware releases add new protocol decoders and performance enhancements, and all updates are free for registered owners.

Our community forum hosts a growing number of users who share scripts, test setups, and troubleshooting tips, fostering a collaborative environment that helps new users get up to speed quickly. The combination of robust hardware, flexible software, and responsive after‑sales service makes the DUTTY USB Logic Analyzer a reliable choice for both professional and educational applications.

Key Features

• 24 MHz sampling rate delivers high‑resolution capture of fast digital edges.
• Eight independent channels allow simultaneous monitoring of complex bus systems.
• Integrated EMI ferrite ring on USB cable reduces noise for reliable data acquisition.
• Wide input voltage range (‑0.5 V to 5.25 V) supports TTL, CMOS, and mixed‑signal circuits.
• Responsive customer support and one‑year warranty ensure peace of mind.

FAQ

What operating systems are supported?

The analyzer works with Windows 10/11, macOS 10.13 or later, and major Linux distributions. Drivers are automatically installed on Windows, while macOS and Linux users can download the appropriate libraries from the DUTTY website.

Can I use the device for protocol decoding?

Yes, the supplied software includes built‑in decoders for UART, I2C, SPI, and other common serial protocols. Users can also create custom decoders using the provided scripting interface.

How do I connect the analyzer to my target circuit?

Each channel features a standard 0.1 inch (2.54 mm) pitch header. Simply attach probe wires to the points you wish to monitor, ensuring the voltage levels stay within the –0.5 V to 5.25 V range. The USB cable then connects the analyzer to your computer for data capture.

Is the device suitable for high‑frequency applications?

With a maximum sampling rate of 24 MHz, the analyzer can accurately capture signals up to approximately 10 MHz bandwidth, covering most microcontroller and FPGA communication speeds. For higher‑frequency requirements, a dedicated high‑speed oscilloscope may be more appropriate.

What warranty coverage does the product include?

The DUTTY USB Logic Analyzer comes with a one‑year limited warranty that covers manufacturing defects. Warranty claims are processed through our authorized service centers, and replacement units are provided when necessary.

Can the analyzer be used in an automated test setup?

Yes, the device supports command‑line control and scripting via its API, allowing integration into continuous‑integration pipelines and automated test rigs. Trigger settings, channel selection, and data export can all be controlled programmatically.

Does the product include any certifications?

The analyzer complies with CE marking requirements and meets RoHS restrictions for hazardous substances. It has also passed FCC Class B emissions testing, ensuring it does not interfere with other electronic equipment.
