Description
Product Overview

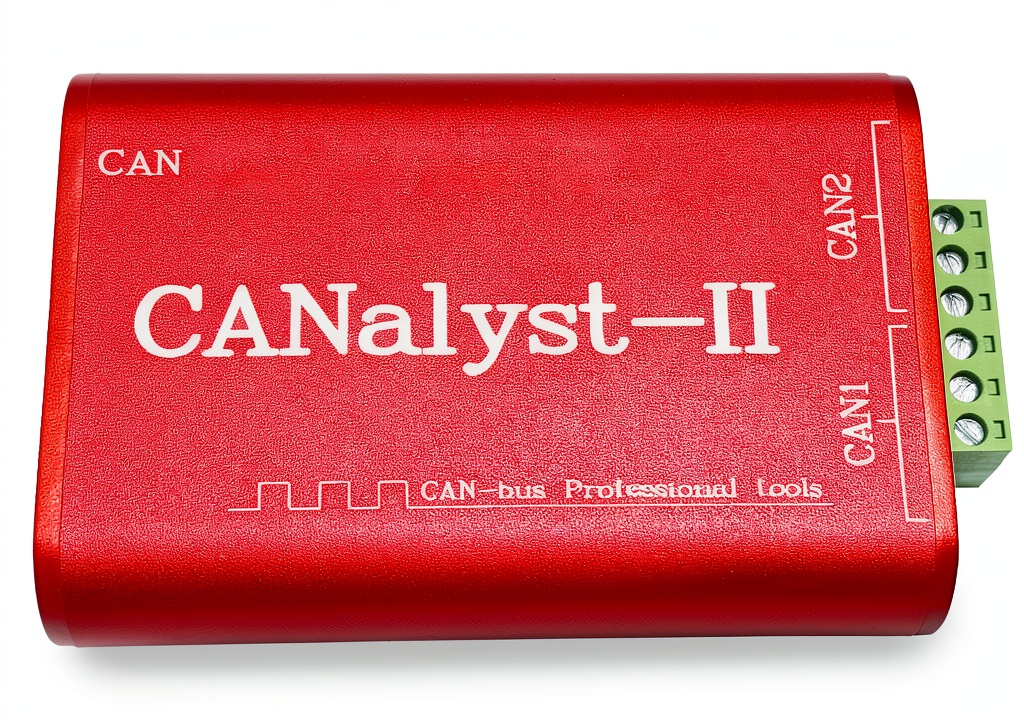

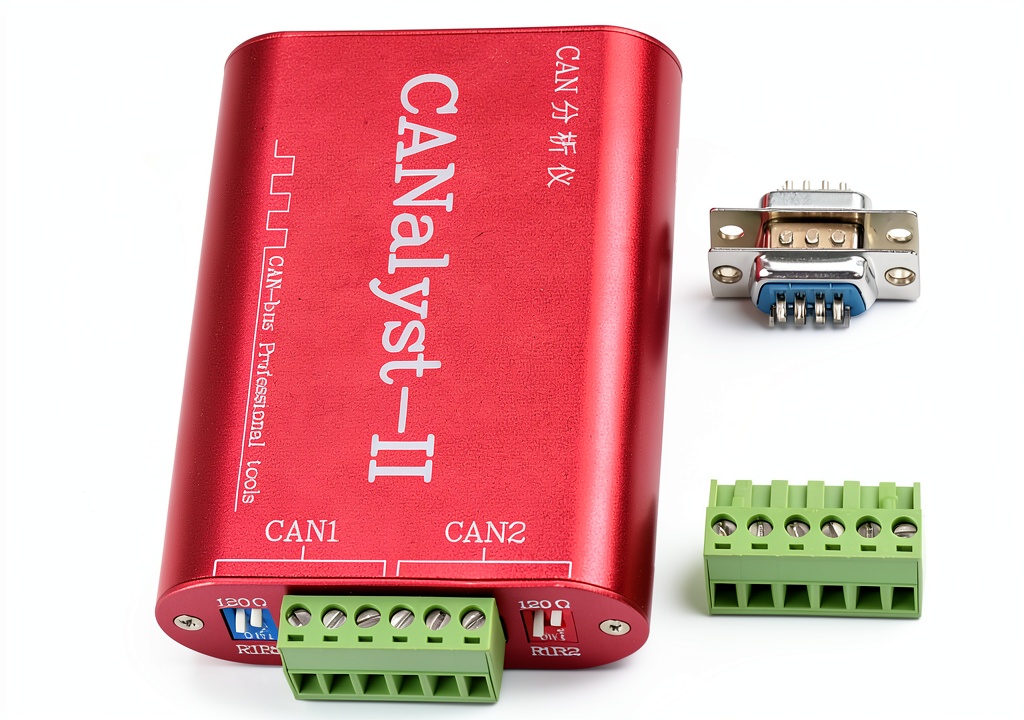

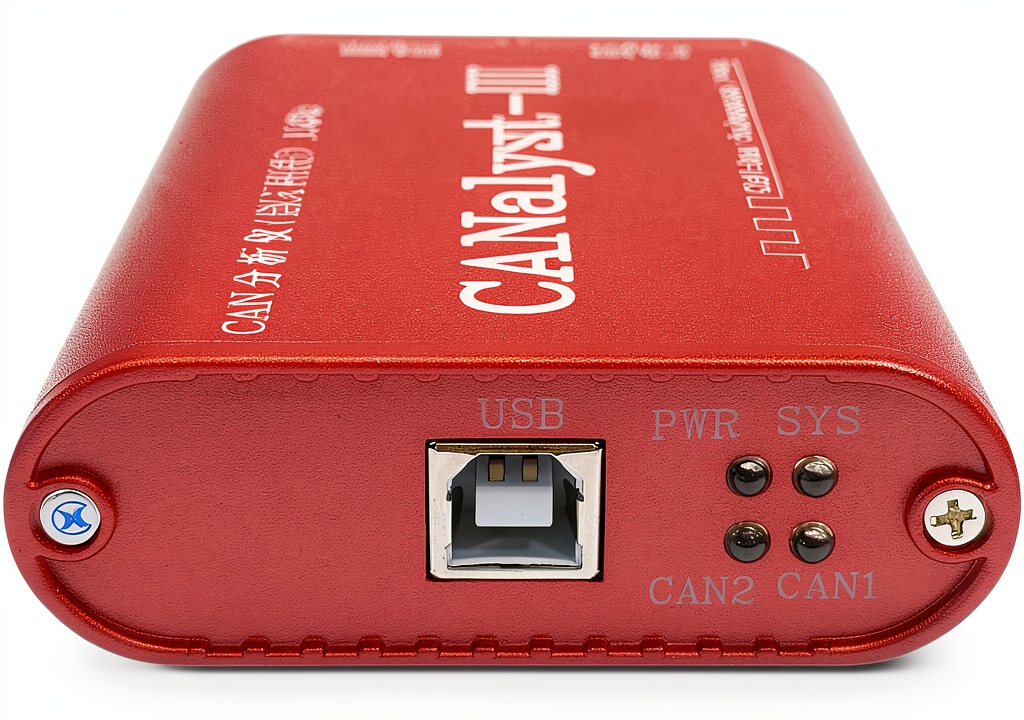

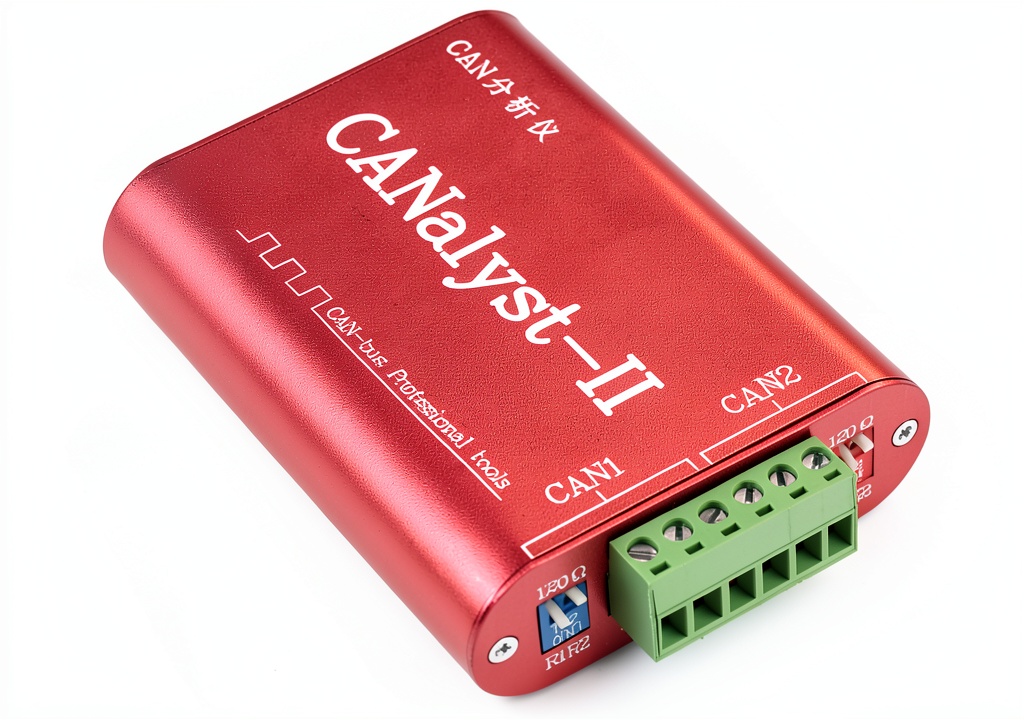

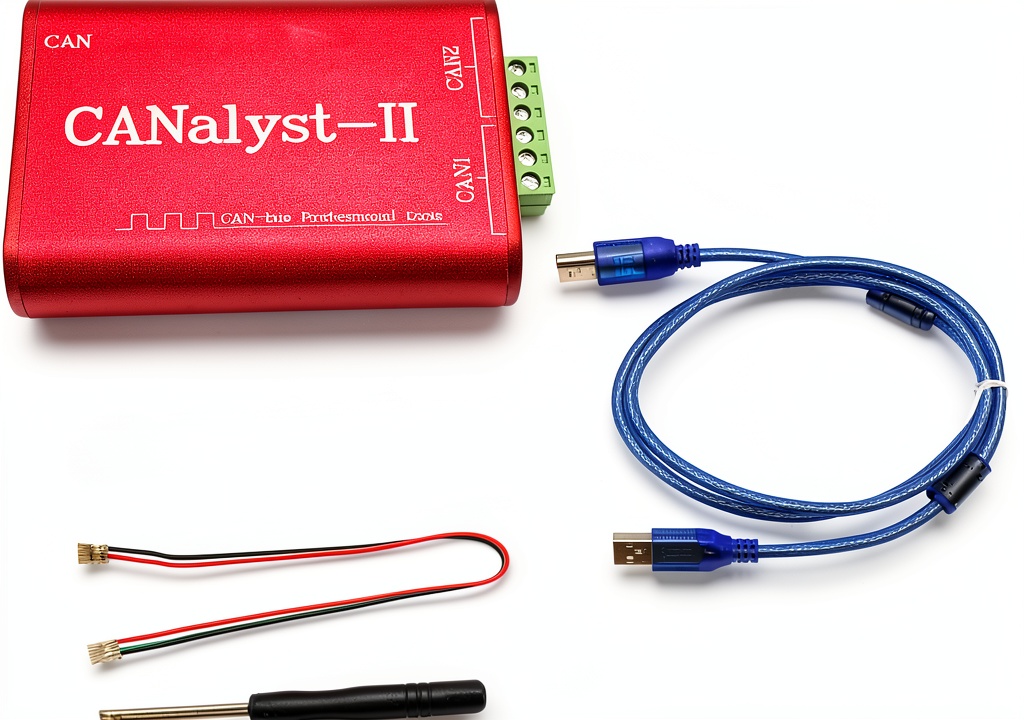

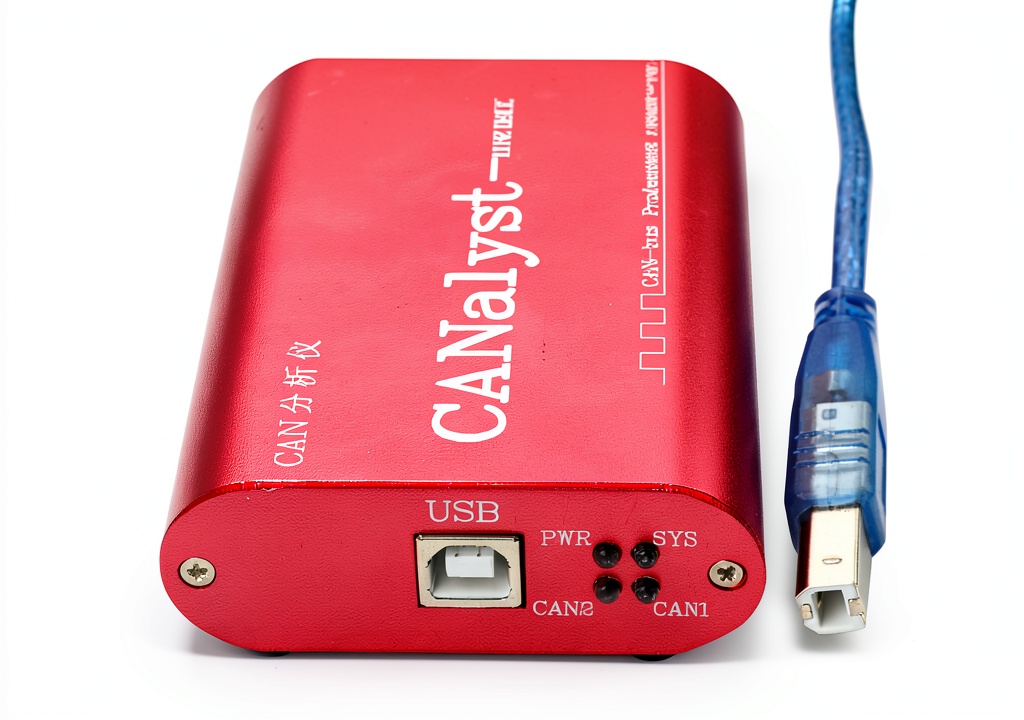

The CANalyst-II USB to CAN Analyzer by KY is engineered for professionals who demand reliable, high‑speed CAN bus analysis. Powered by an 80 MHz 32‑bit processor, the device delivers rapid data processing and supports baud rates from 10 K to 1 M, covering a broad spectrum of automotive and industrial protocols. Its 512 KB flash and 128 KB SRAM provide ample memory for real‑time logging, while the integrated flash‑programming capability allows on‑the‑fly firmware updates without disconnecting the hardware. The compact 10 × 10 × 10 inch form factor and lightweight 1.13‑ounce build make it portable for field diagnostics, yet its robust construction ensures durability in demanding environments. The analyzer connects via a standard USB interface, providing plug‑and‑play compatibility with Windows, Linux, and macOS platforms, and includes a comprehensive driver package that supports popular development environments.
Usage
Designed for a wide range of applications, the CANalyst-II excels in automotive ECU testing, industrial machine monitoring, and research laboratory experiments. Engineers can use it to capture and decode CAN frames from vehicle networks, troubleshoot communication errors, and validate protocol compliance. In manufacturing settings, the analyzer serves as a gateway for integrating legacy CAN devices with modern Ethernet‑based control systems, enabling seamless data exchange and remote diagnostics. Its flexible baud‑rate configuration tools simplify setup for both standard and custom CAN networks, allowing users to quickly adapt to varying signal speeds. The device’s USB‑to‑CAN bridge functionality also makes it an ideal solution for developers building custom software tools, as it provides a reliable hardware interface for sending and receiving CAN messages directly from a PC or laptop.
Why Choose Us
Choosing the CANalyst-II means selecting a product backed by rigorous quality assurance and a commitment to customer success. KY, the manufacturer, has a reputation for delivering precision instrumentation that meets international standards, and each unit undergoes thorough functional testing before shipment. The analyzer’s firmware is regularly updated to incorporate the latest protocol enhancements and security patches, ensuring long‑term compatibility. Additionally, KY provides responsive technical support, detailed documentation, and a vibrant user community where customers can share scripts, troubleshoot issues, and exchange best practices. This comprehensive support ecosystem reduces downtime and accelerates project timelines, giving users confidence that their investment will deliver sustained value.
Key Features
- Fast 80 MHz 32‑bit processor enables real‑time CAN frame capture and analysis.
- Supports a wide baud‑rate range (10 K–1 M) with one‑click configuration tools.
- On‑board flash programming allows firmware updates without removing the device.
- Compact, lightweight design makes it easy to carry for field diagnostics.
- Dedicated technical support and regular firmware updates ensure long‑term reliability.
FAQ
What operating systems are compatible with the CANalyst-II?
The analyzer works with Windows (7, 8, 10, 11), Linux distributions, and macOS. Drivers and SDKs are provided for each platform, enabling seamless integration with popular development tools.
Can the device record CAN traffic continuously?
Yes, the 512 KB flash memory combined with 128 KB SRAM allows continuous logging of high‑speed CAN traffic. Recorded data can be exported in standard formats for post‑analysis.
Is there a warranty or return policy?
KY offers a one‑year limited warranty covering manufacturing defects. If the product does not meet expectations, a 30‑day return policy is available for a full refund, provided the unit is returned in its original condition.
How does the CANalyst-II handle multiple CAN channels?
While the base model provides a single CAN channel, optional expansion modules are available that add additional ports, allowing simultaneous monitoring of multiple CAN networks.
What is the maximum cable length for reliable communication?
Using standard CAN‑high and CAN‑low twisted‑pair cabling, reliable communication can be maintained up to 40 meters at 1 M baud. For lower baud rates, longer cable runs are possible without signal degradation.
