Description
Product Overview

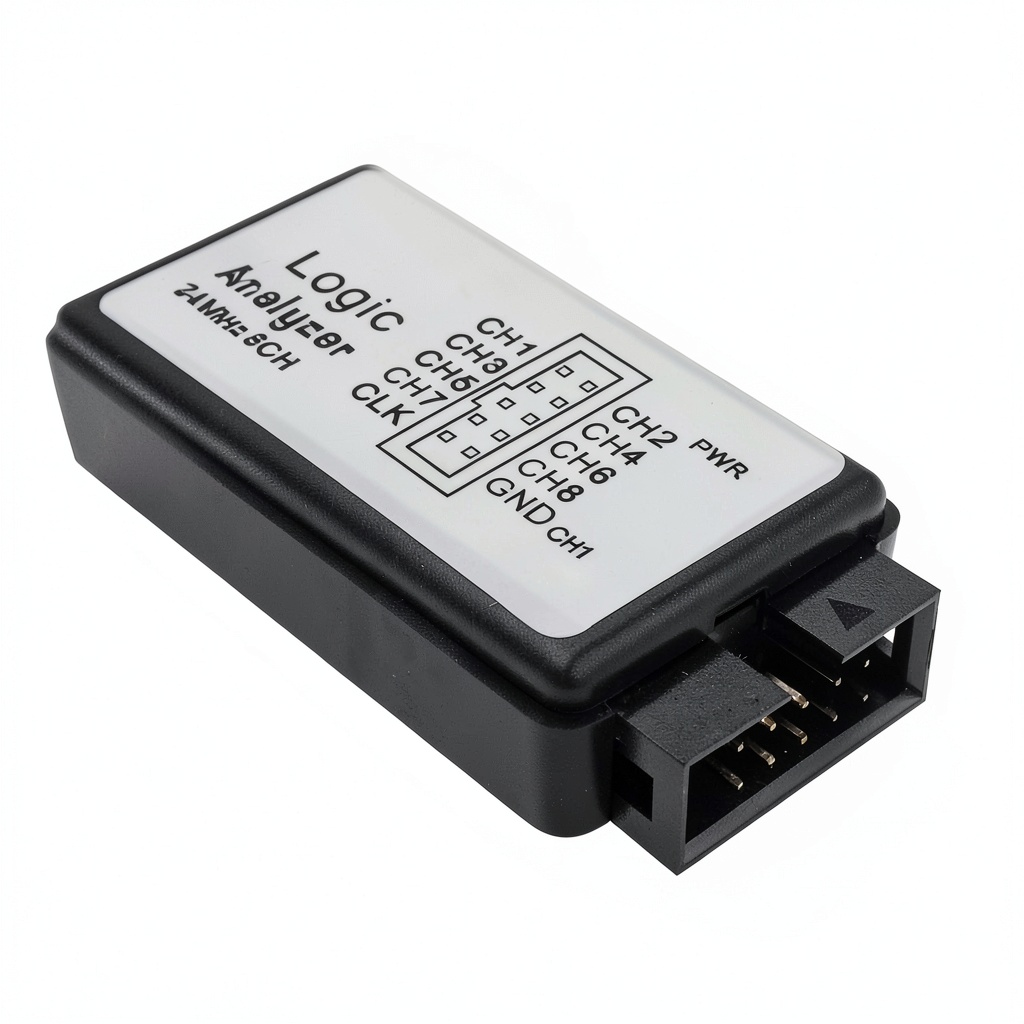

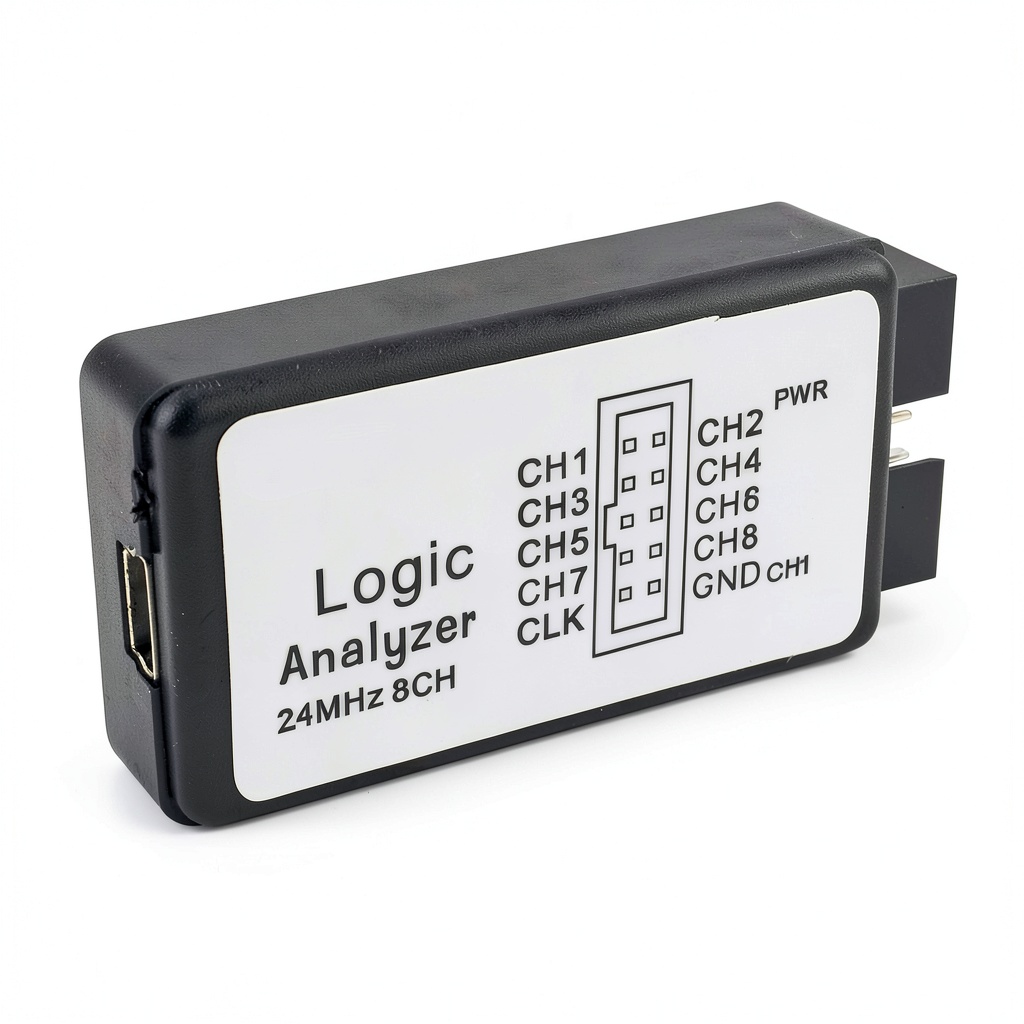

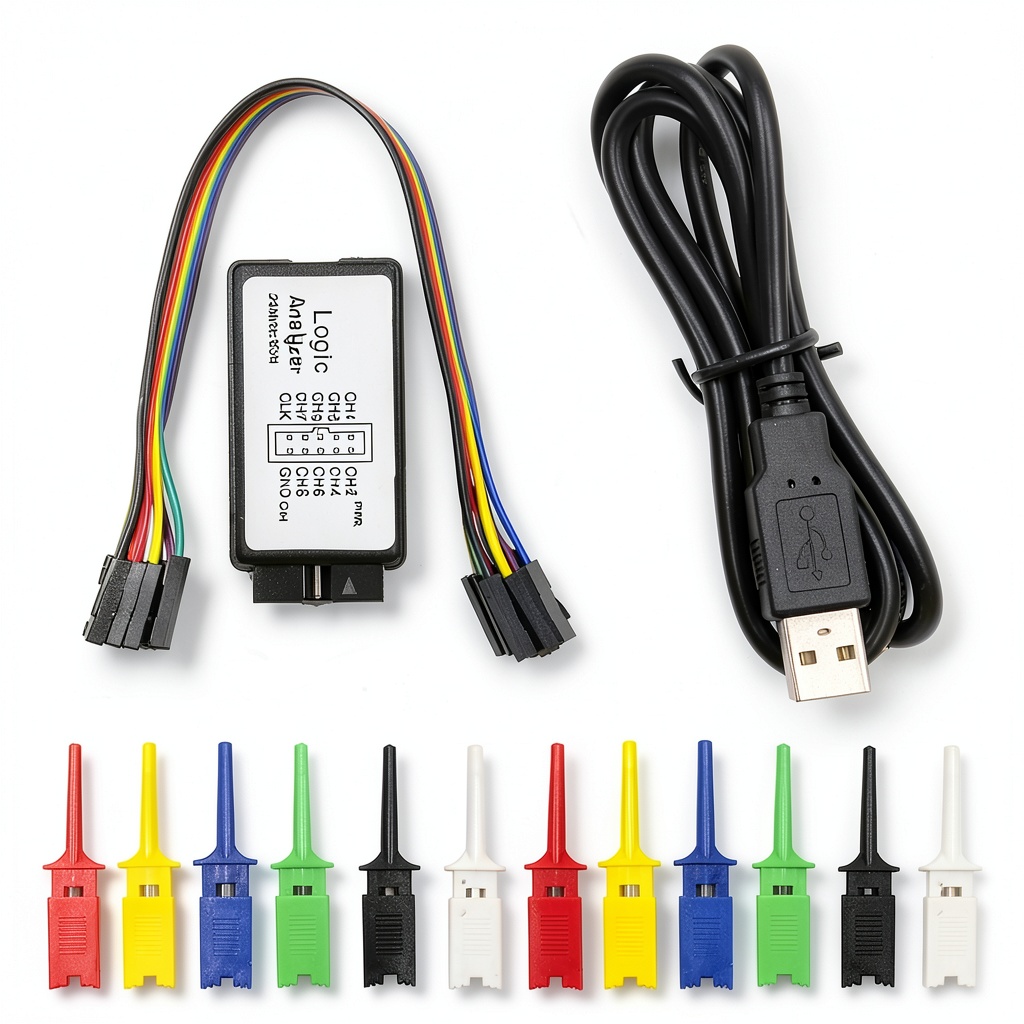

The KeeYees USB Logic Analyzer is engineered to meet the demanding needs of electronics hobbyists and professional engineers alike. Featuring a 24MHz sampling rate and eight independent channels, this compact device captures high‑speed digital signals with precision and reliability. The included 12‑piece, six‑color test hook clip set simplifies probe placement on a wide variety of surface‑mount and through‑hole components, reducing setup time and minimizing the risk of damage. Constructed from a durable ABS housing and a high‑quality USB‑C connector, the analyzer ensures stable data transfer and long‑term durability even in busy workshop environments. Its lightweight design, measuring just 6.73 x 6.06 x 0.83 inches and weighing only 2.29 ounces, makes it portable enough to carry to field sites or classroom labs.
Beyond the hardware, the analyzer integrates seamlessly with popular open‑source software platforms such as sigrok, PulseView, and other protocol analysis tools. This compatibility provides users with a flexible, cost‑effective solution for decoding UART, SPI, I²C, 1‑Wire, and many other serial communication standards. The device’s firmware is regularly updated to support new protocols and improve performance, ensuring that your investment remains future‑proof. Whether you are developing firmware for an Arduino, debugging FPGA logic, or troubleshooting a complex embedded system, the KeeYees analyzer offers the depth of insight required to accelerate development cycles.

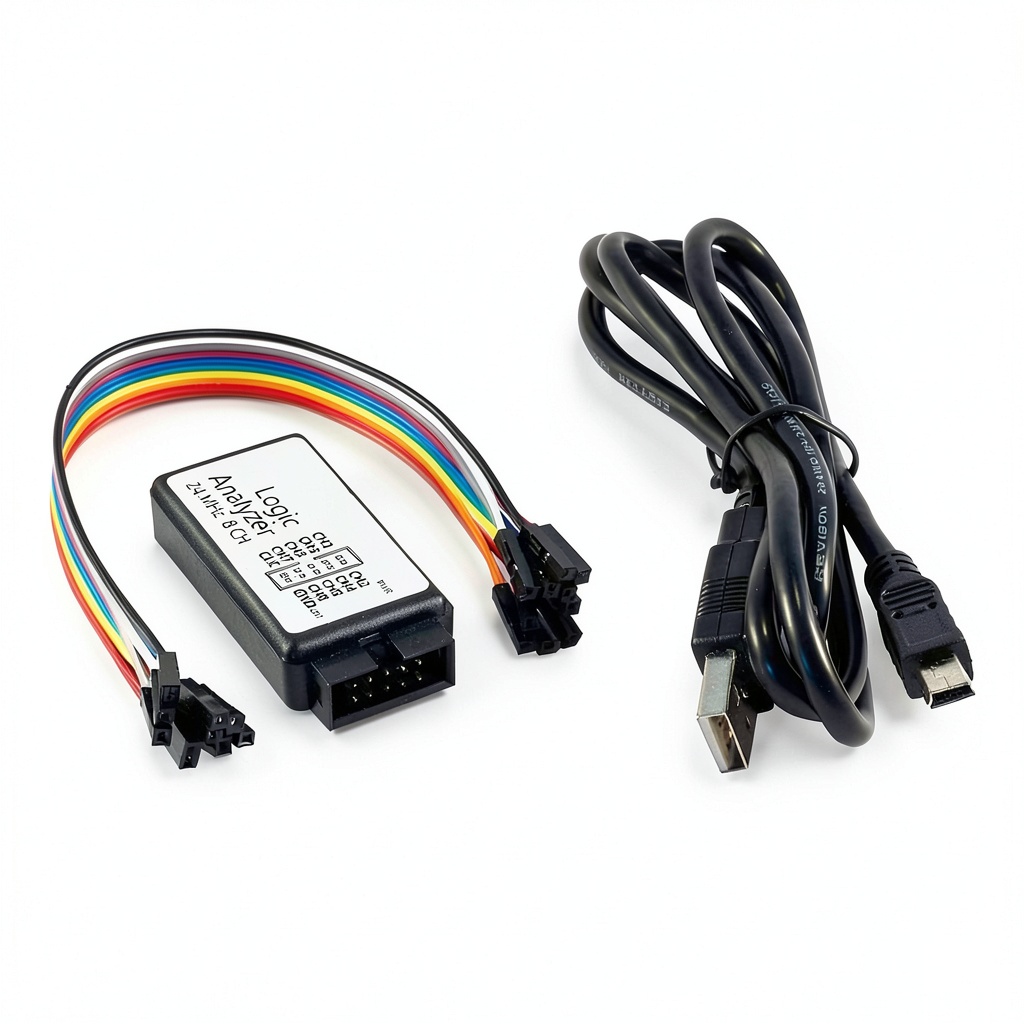

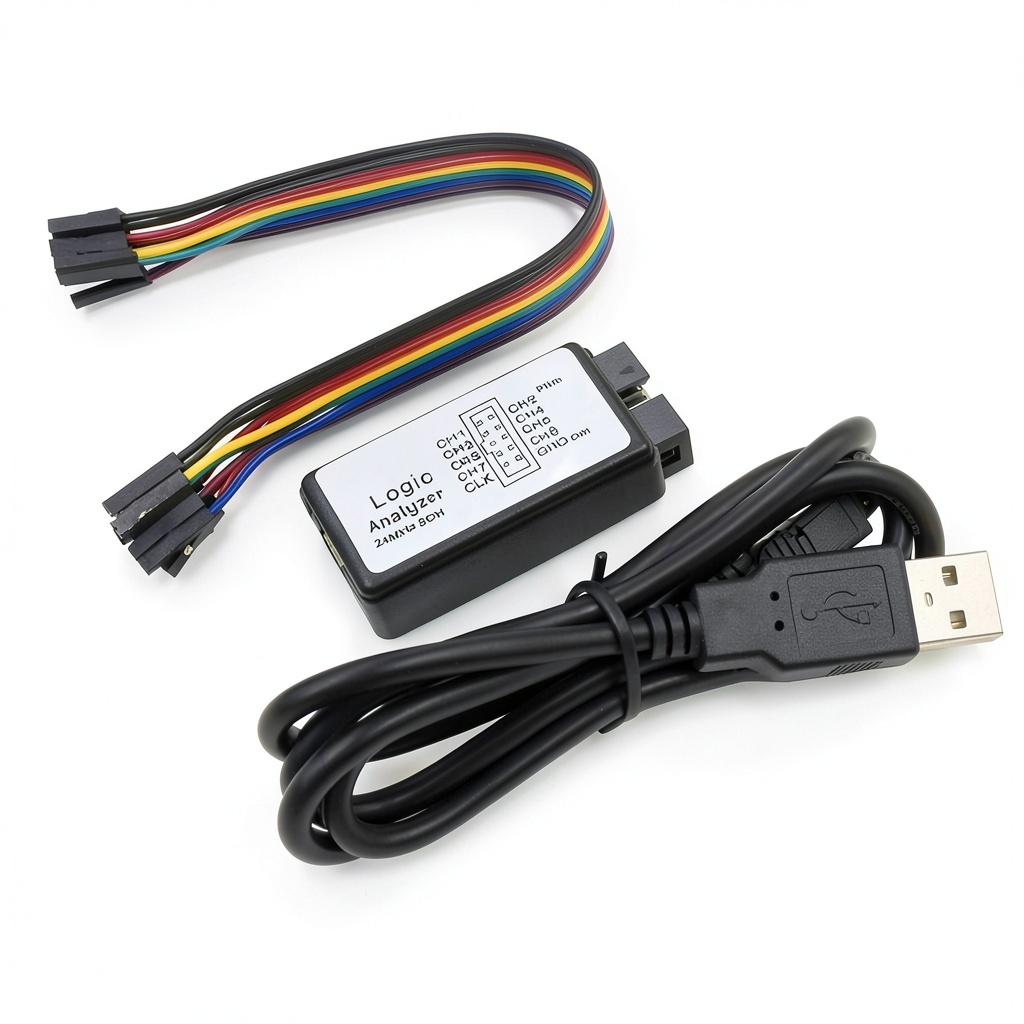

Designed with user experience in mind, the analyzer includes a clear LED indicator for power status and data activity, as well as a straightforward plug‑and‑play USB connection that draws power directly from a computer or laptop. No external power supply is required, which reduces cable clutter and simplifies the overall setup. The package also contains a detailed tutorial guide, wiring diagrams, and example projects to help users get started quickly, regardless of their experience level.
Usage
In a typical development workflow, the KeeYees analyzer is connected to a host computer via USB and positioned alongside the target hardware. The six‑color test hook clips allow engineers to quickly identify and attach to specific signal lines, such as MOSI, MISO, SCK, and CS for SPI, or TX and RX for UART, without the need for soldering or specialized adapters. This rapid prototyping capability is especially valuable in educational settings, where students can experiment with multiple circuits in a single lab session.
For field diagnostics, the analyzer’s compact form factor enables technicians to carry it in a pocket‑sized tool kit, making on‑site troubleshooting of industrial controllers, sensor networks, or automotive ECUs more efficient. Its ability to capture and display real‑time waveforms helps pinpoint timing issues, signal integrity problems, and protocol violations that might otherwise go unnoticed.
Advanced users can leverage the device’s multi‑channel capability to monitor several signals simultaneously, correlating events across different parts of a system. This is particularly useful when working with complex FPGA designs where multiple clock domains and data buses interact. By analyzing the captured data with software decoders, developers can verify state machine behavior, validate communication handshakes, and ensure that timing constraints are met.
Why Choose Us
Choosing the KeeYees USB Logic Analyzer means investing in a product backed by a commitment to quality and customer support. Each unit undergoes rigorous testing to meet industry standards for accuracy and reliability, and the manufacturer provides responsive technical assistance for any questions that arise during integration or operation. The included tutorial materials are written by experienced engineers, offering step‑by‑step guidance that reduces the learning curve for newcomers.
Our design philosophy emphasizes durability and ease of use. The ABS enclosure protects internal components from accidental drops, while the ergonomic USB connector ensures a secure fit that resists loosening during extended use. The test hook clips are fabricated from spring‑tempered metal, guaranteeing consistent contact pressure and long‑lasting performance even after repeated insertions and removals.
Furthermore, the KeeYees brand is recognized for delivering value‑driven solutions that do not compromise on functionality. By offering a high‑performance analyzer at a competitive price point, we enable a broader audience to access professional‑grade debugging tools. Our ongoing software updates and community engagement ensure that users benefit from the latest features and best practices in digital signal analysis.
We also provide a comprehensive warranty and a dedicated support channel where users can receive firmware updates, troubleshooting advice, and recommendations for optimal usage. This level of after‑sales service distinguishes us from many competitors who offer limited or no technical assistance after purchase.
Key Features
- 24MHz sampling rate across eight independent channels for high‑speed signal capture.

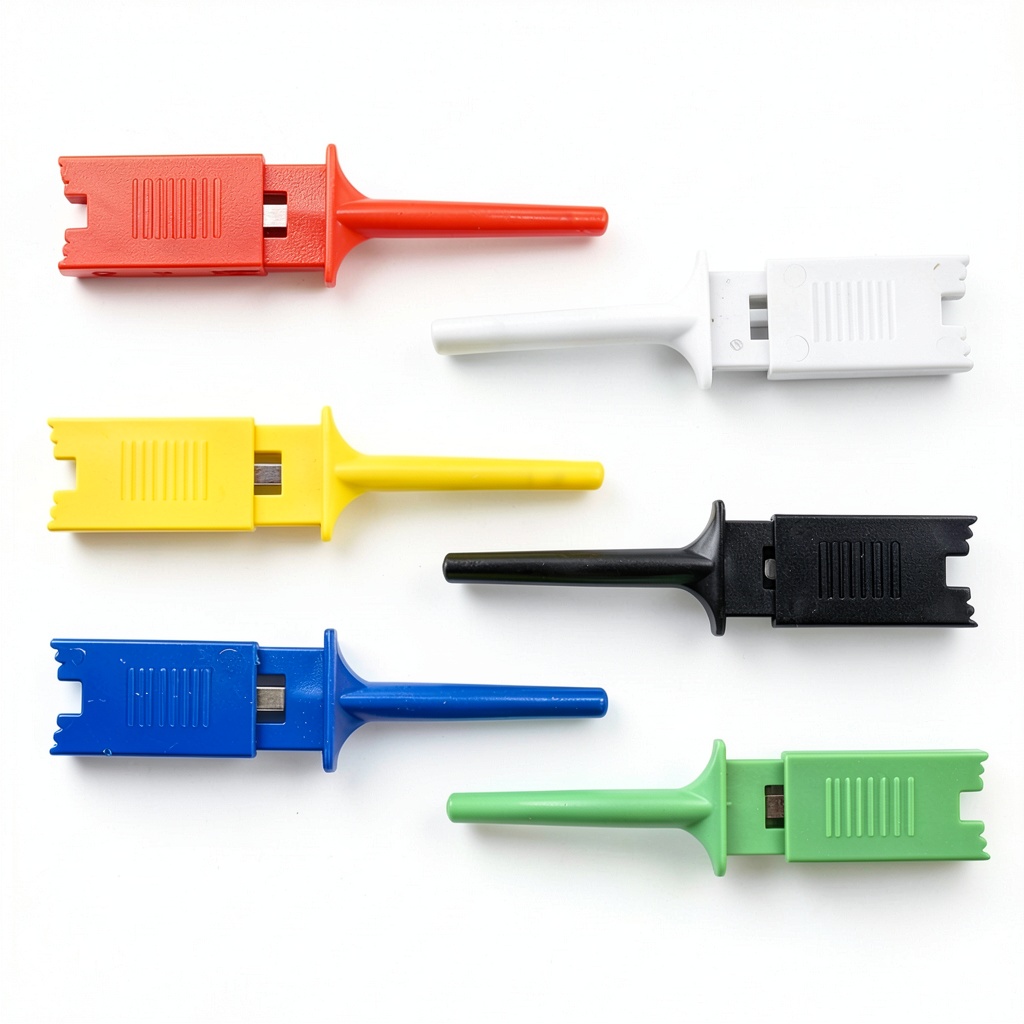

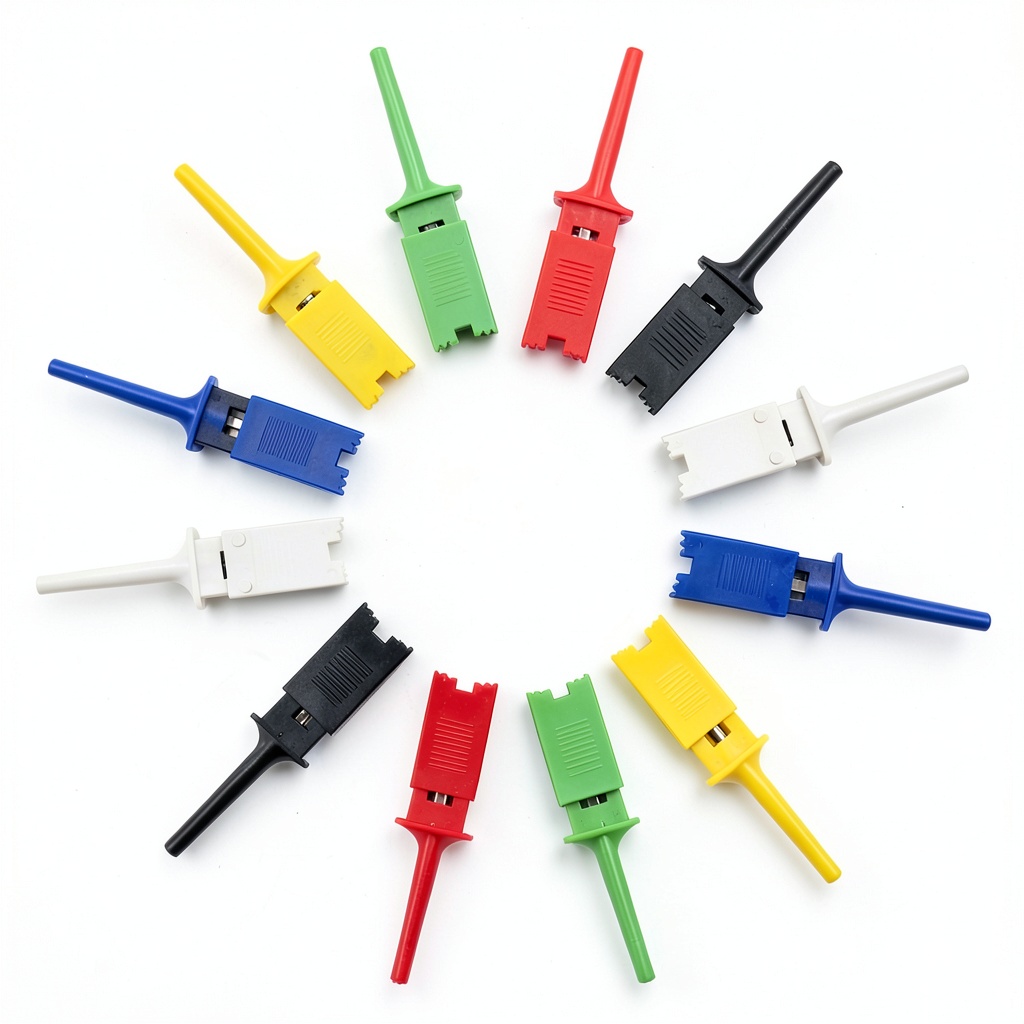

- Inclusive 12‑piece, six‑color test hook clip set simplifies probing of diverse component types.
- Plug‑and‑play USB‑C connection eliminates the need for external power supplies.
- Full compatibility with open‑source analysis software such as sigrok and PulseView.
- Responsive technical support and detailed tutorials ensure a smooth user experience.
FAQ
What operating systems are supported?
The analyzer works with Windows 10 and later, macOS 10.13 and later, and most major Linux distributions. Drivers are automatically recognized by the operating system, and the device can be used with any software that supports the libsigrok library.
Can I use the analyzer with other microcontroller platforms?
Yes, the device is platform‑agnostic. It can capture signals from Arduino, Raspberry Pi, ESP32, STM32, and many other development boards, as long as the signals are within the 24 MHz bandwidth and voltage levels supported by the analyzer.
How do I update the firmware?
Firmware updates are provided on the KeeYees website. Download the latest firmware package, connect the analyzer via USB, and run the supplied update utility. The process takes only a few minutes and does not require any additional hardware.
Is the analyzer suitable for educational use?
Absolutely. Its intuitive interface, comprehensive documentation, and affordable price make it an ideal teaching tool for electronics courses, labs, and workshops. Students can quickly learn protocol analysis without needing expensive equipment.
What warranty does the product include?
Each unit comes with a one‑year limited warranty covering manufacturing defects. Should any issues arise, contact our support team for troubleshooting, replacement, or repair options.
