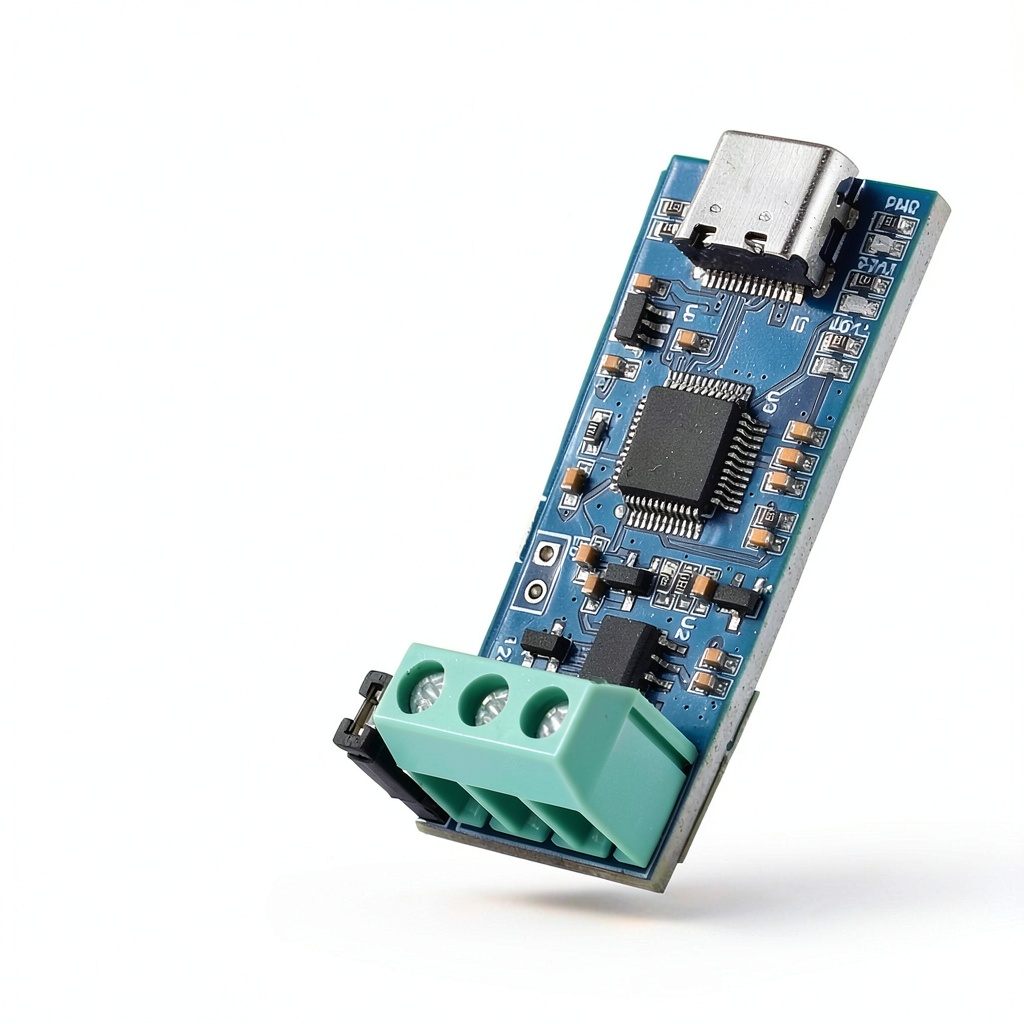

USB CAN Bus Module Culnflun Type-C LED CAN Transceiver for

Description

Product Overview

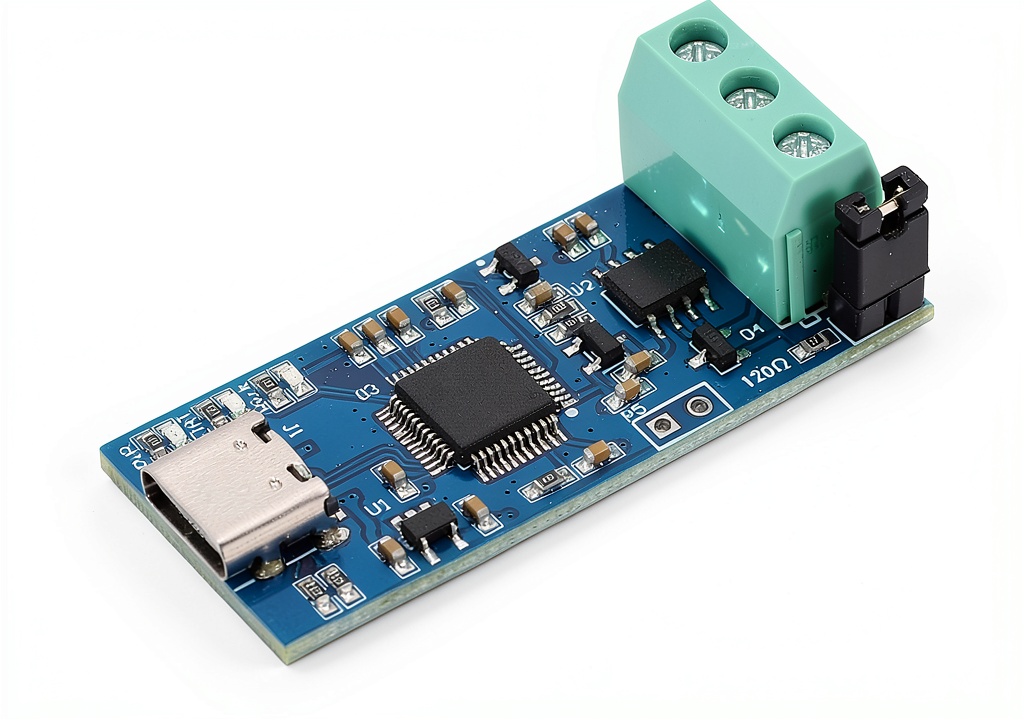

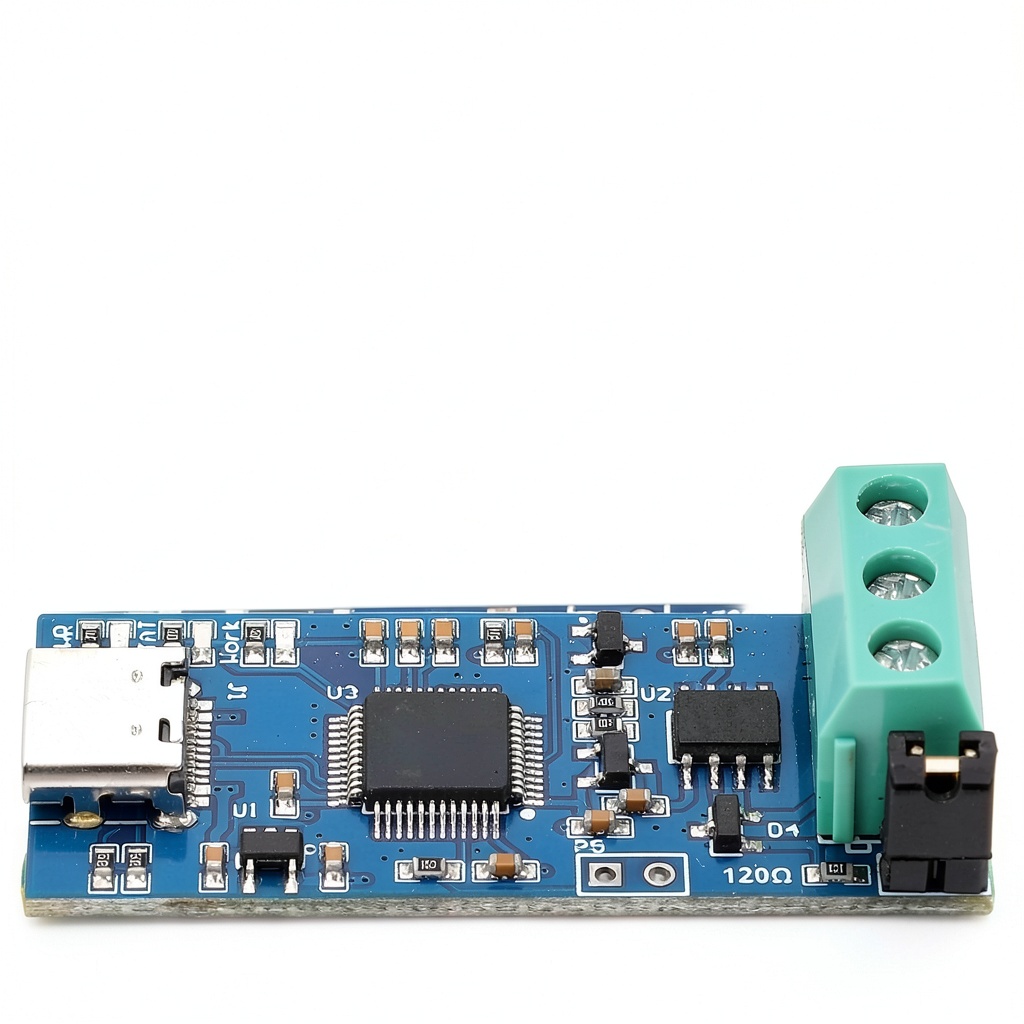

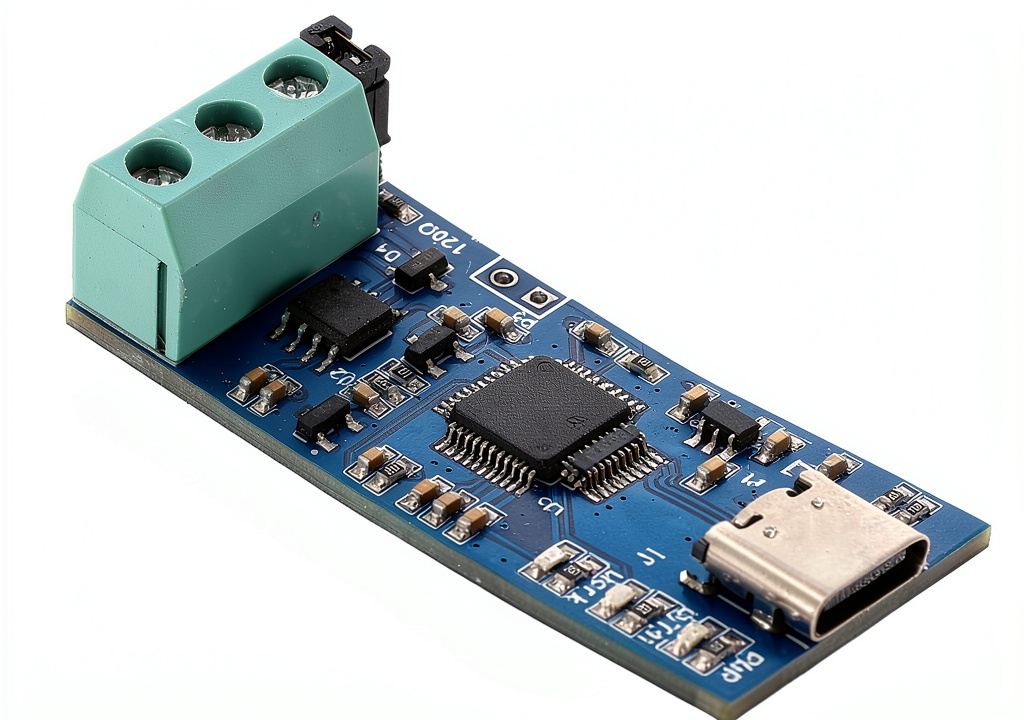

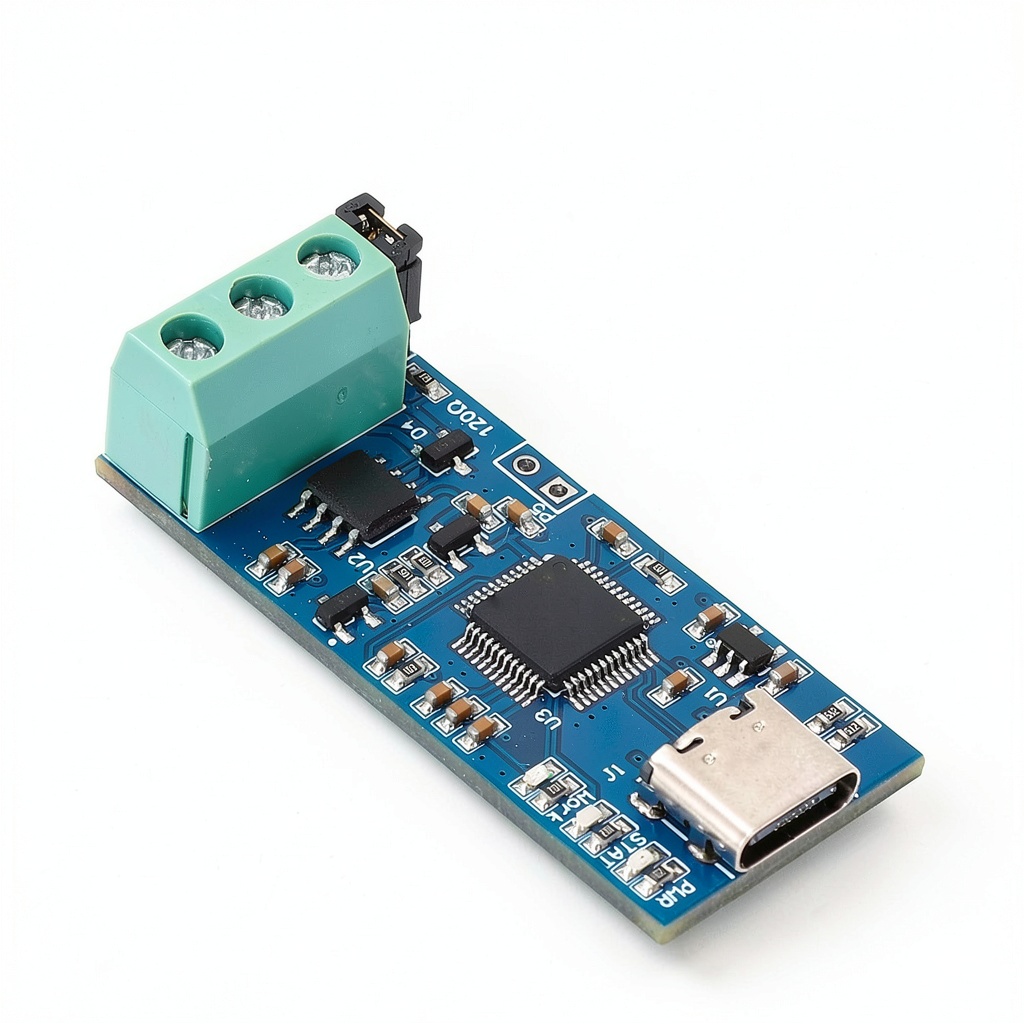

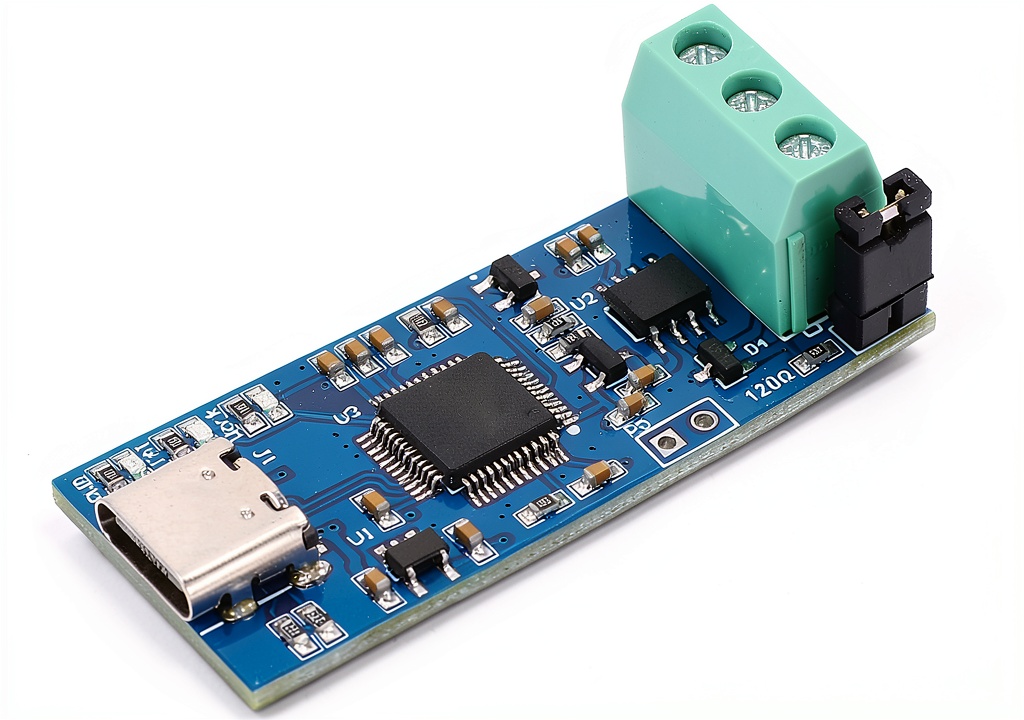

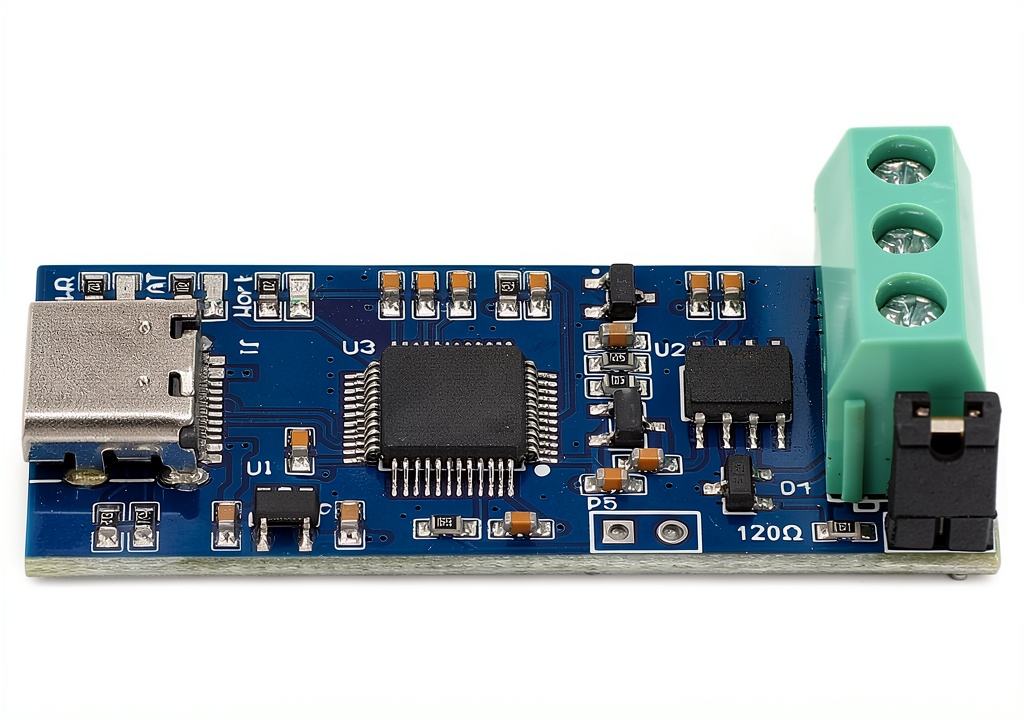

The Culnflun USB CAN Bus Module is engineered to meet the demanding requirements of modern embedded development, automotive diagnostics, and industrial automation testing. Built around a high‑performance STM32G4 series microcontroller, the module operates at frequencies up to 170 MHz, delivering rapid data processing and low‑latency communication across CAN networks. Its Type‑C USB interface supplies 5 V power and supports high‑speed data transfer, eliminating the need for external adapters and simplifying system integration. A three‑color LED indicator provides immediate visual feedback on bus status, error frames, and transmission activity, allowing engineers to diagnose issues at a glance.

Physically, the device measures just 1.97 × 1.18 × 0.39 inches and weighs only 0.459 oz, making it highly portable for field work or bench‑top testing. The module is compatible with CAN2.0A, CAN2.0B, and the newer CAN‑FD protocol, ensuring flexibility across legacy and next‑generation networks. It comes ready‑to‑use out of the box—no assembly required—and includes open‑source firmware that can be updated via a web interface, providing continuous improvement and customization options for developers.

Usage

Designed for a broad range of applications, this USB CAN Bus Module fits seamlessly into automotive ECU testing, robotic control systems, and IoT device development. Engineers can connect the module directly to a laptop or embedded host using the reversible Type‑C connector, then launch their preferred CAN analysis software—such as CANalyzer, SavvyCAN, or custom Python scripts—to monitor, log, and transmit CAN frames in real time. The compact form factor allows the device to be mounted on a test rig, integrated into a portable diagnostic toolkit, or used in a crowded laboratory bench without obstructing other equipment.

In automotive environments, the module enables rapid validation of vehicle network communication, supporting tasks like sensor data acquisition, actuator command verification, and fault injection testing. For industrial automation, it serves as a reliable bridge between PLCs and supervisory control software, facilitating seamless data exchange and troubleshooting of motion control networks. Hobbyists and makers benefit from the plug‑and‑play experience, using the module to explore CAN‑FD capabilities, develop custom firmware, or prototype communication between microcontrollers without investing in expensive hardware.

Why Choose Us

Choosing the Culnflun USB CAN Bus Module means selecting a solution that combines cutting‑edge hardware performance with user‑centric design. The STM32G4 core ensures deterministic timing and high‑resolution signal processing, while the Type‑C interface guarantees robust power delivery and data integrity. Our commitment to open‑source firmware means you retain full control over the device’s functionality, with the ability to modify, extend, or integrate new features as your project evolves.

Quality assurance is a cornerstone of our manufacturing process. Each unit undergoes rigorous testing for electrical compliance, temperature stability, and electromagnetic compatibility, ensuring reliable operation in both laboratory and field conditions. Additionally, our dedicated technical support team provides prompt assistance, firmware updates, and detailed documentation to help you get the most out of your investment.

Beyond performance, the module’s sleek, lightweight design reduces clutter on workstations and enhances portability for on‑site diagnostics. The intuitive three‑color LED status indicator eliminates guesswork, allowing you to focus on data analysis rather than hardware troubleshooting. With a proven track record reflected in top‑ranking sales within the Logic Analyzers category, the Culnflun USB CAN Bus Module stands out as a trusted choice for professionals and enthusiasts alike.

Key Features

• High‑speed STM32G4 microcontroller delivers up to 170 MHz processing for fast CAN data handling.
• Reversible Type‑C USB interface provides 5 V power and high‑bandwidth communication without extra adapters.
• Three‑color LED indicator offers instant visual feedback on bus activity, errors, and transmission status.
• Supports CAN2.0A, CAN2.0B, and CAN‑FD protocols, ensuring compatibility with legacy and modern networks.
• Compact, lightweight design makes it easy to carry and integrate into any testing environment.
• Open‑source firmware with web‑based updates enables customization and continuous improvement.
• Rigorous quality testing guarantees reliable performance in both lab and field applications.
• Responsive technical support and comprehensive documentation for hassle‑free implementation.

FAQ

What operating systems are supported?

The module works with Windows, macOS, and Linux platforms. Drivers are automatically recognized on modern operating systems, and third‑party CAN software can communicate via standard USB interfaces.

Can I use the module with existing CAN analysis tools?

Yes. The device adheres to standard CAN interface specifications, allowing seamless integration with popular tools such as CANalyzer, SavvyCAN, and custom scripts using libraries like python‑can.

Is firmware updating safe and easy?

Firmware updates are performed through a secure web interface. The process is straightforward: connect the module, launch the update page, and follow the on‑screen instructions. No special tools are required.

What is the maximum bus speed supported?

The module supports CAN bus speeds up to 5 Mbps for CAN‑FD and up to 1 Mbps for classic CAN 2.0, covering the full range of typical automotive and industrial applications.

Do you provide technical support for integration issues?

Absolutely. Our dedicated support team assists with hardware setup, driver installation, and software integration, ensuring you can get your system up and running quickly.
